wethepeople "Network" BMX Frame
-
Weight : 2.36kg / 5.20lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:- Manufacturer's weight specifications may be inaccurate or incomplete.
- The weight of two identical parts can also differ.
- We cannot weigh every individual part.
Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 20966

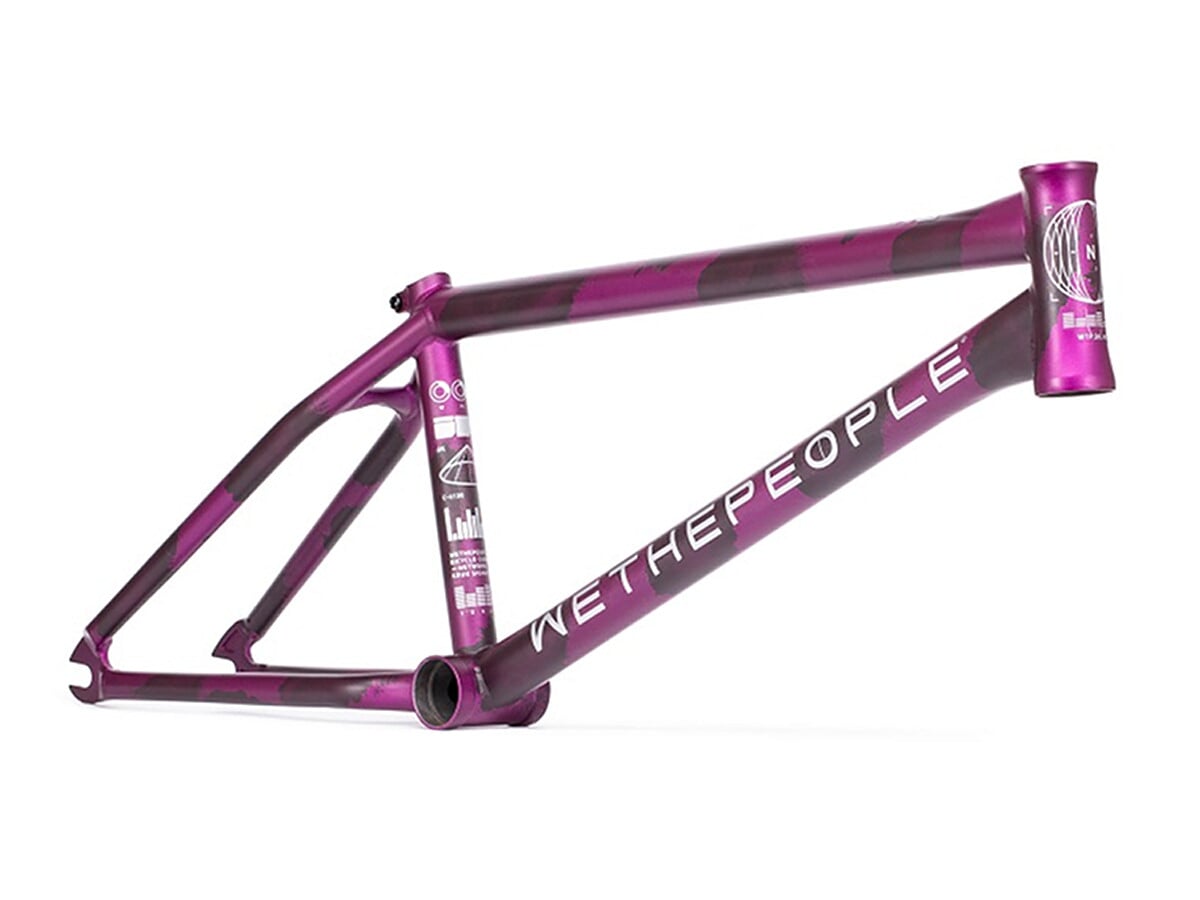

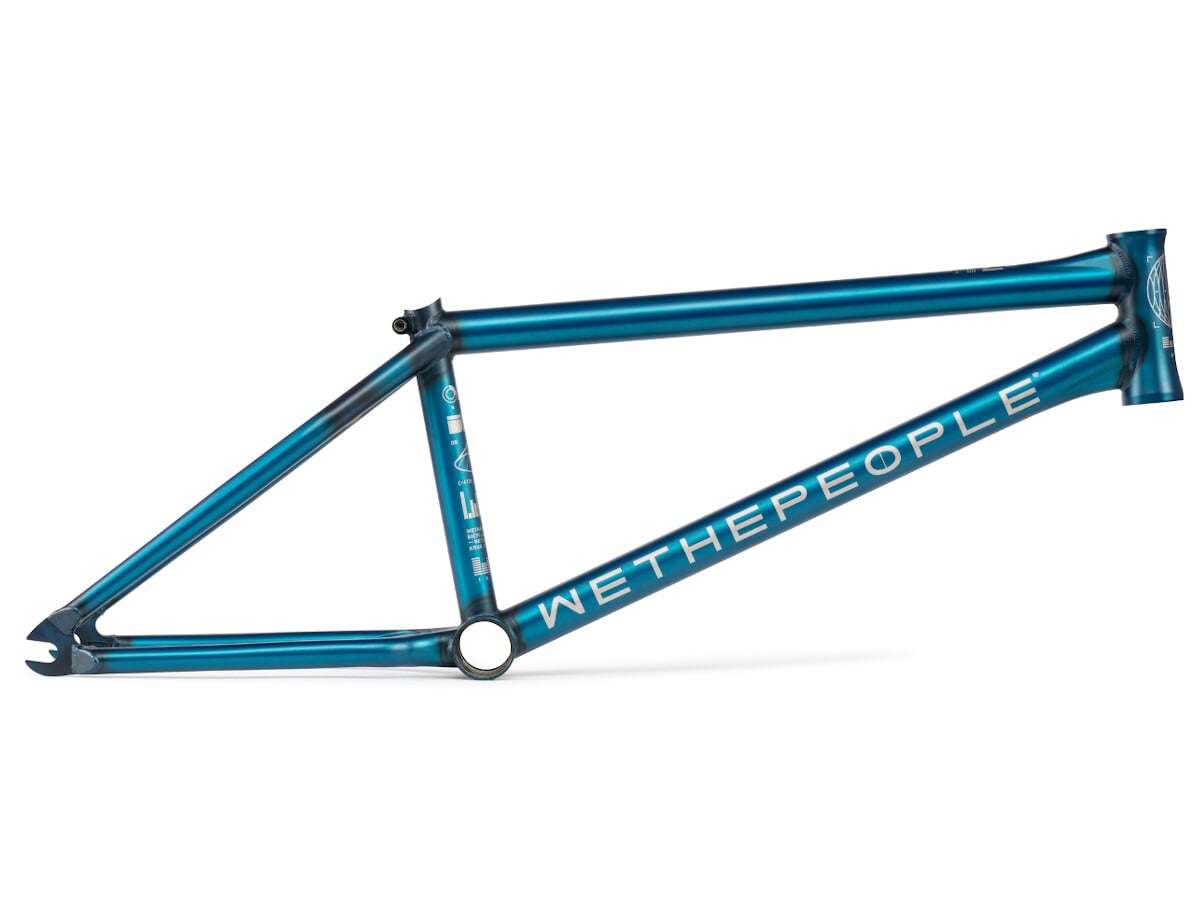

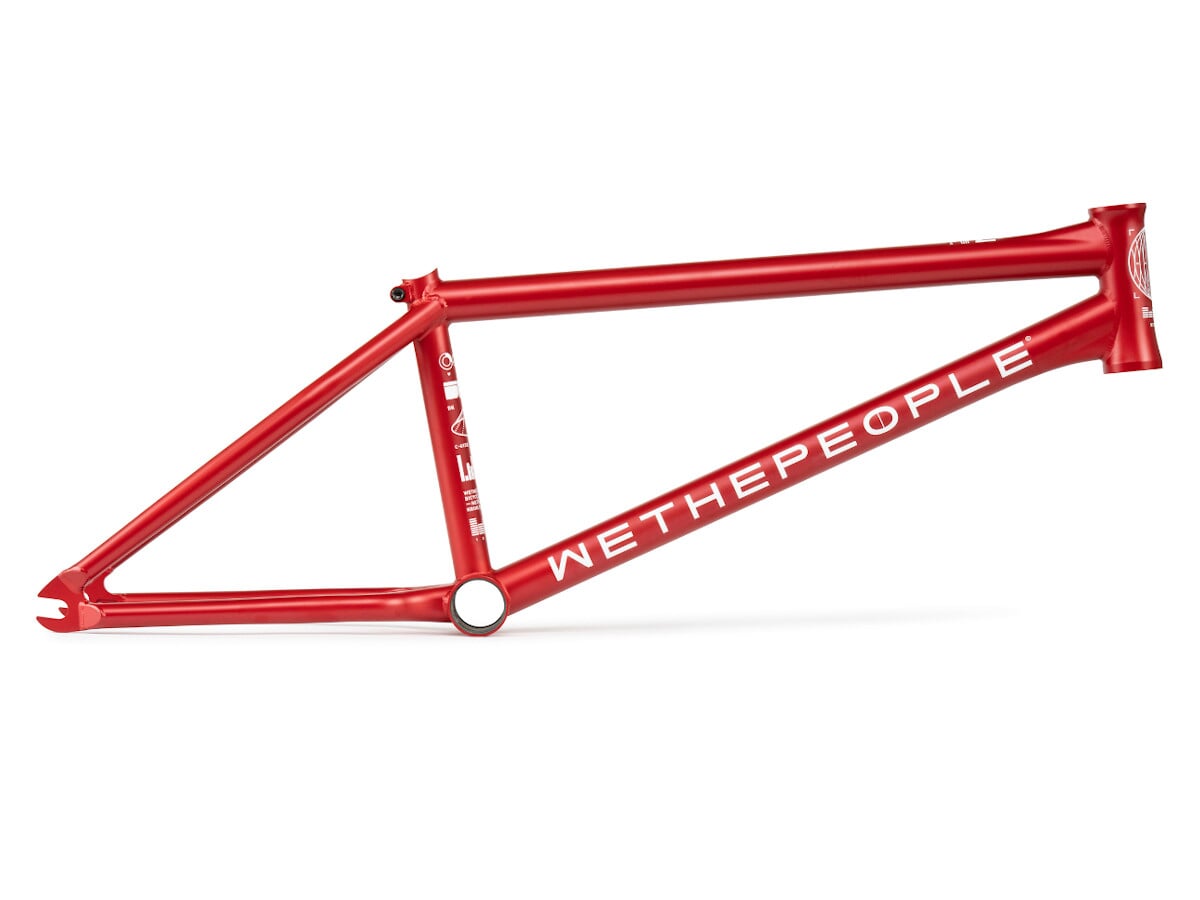

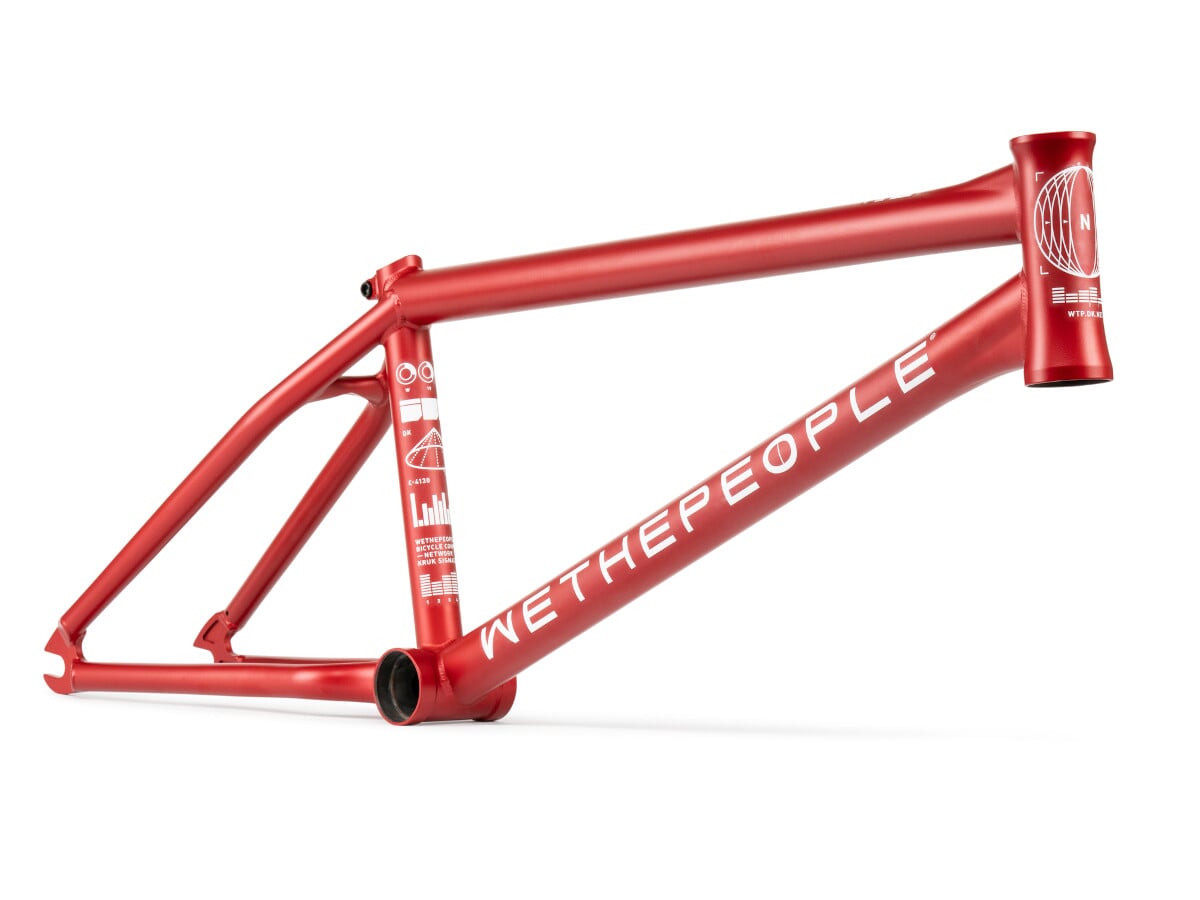

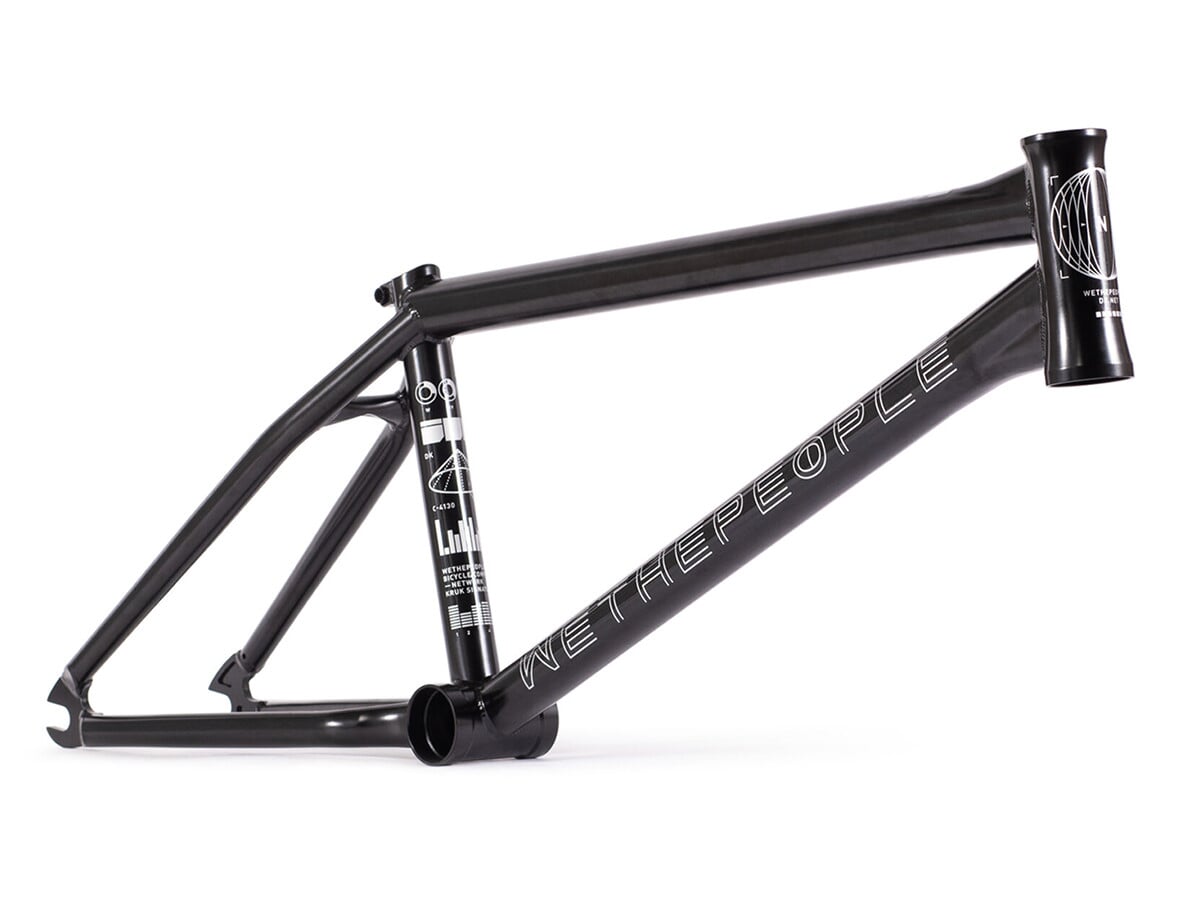

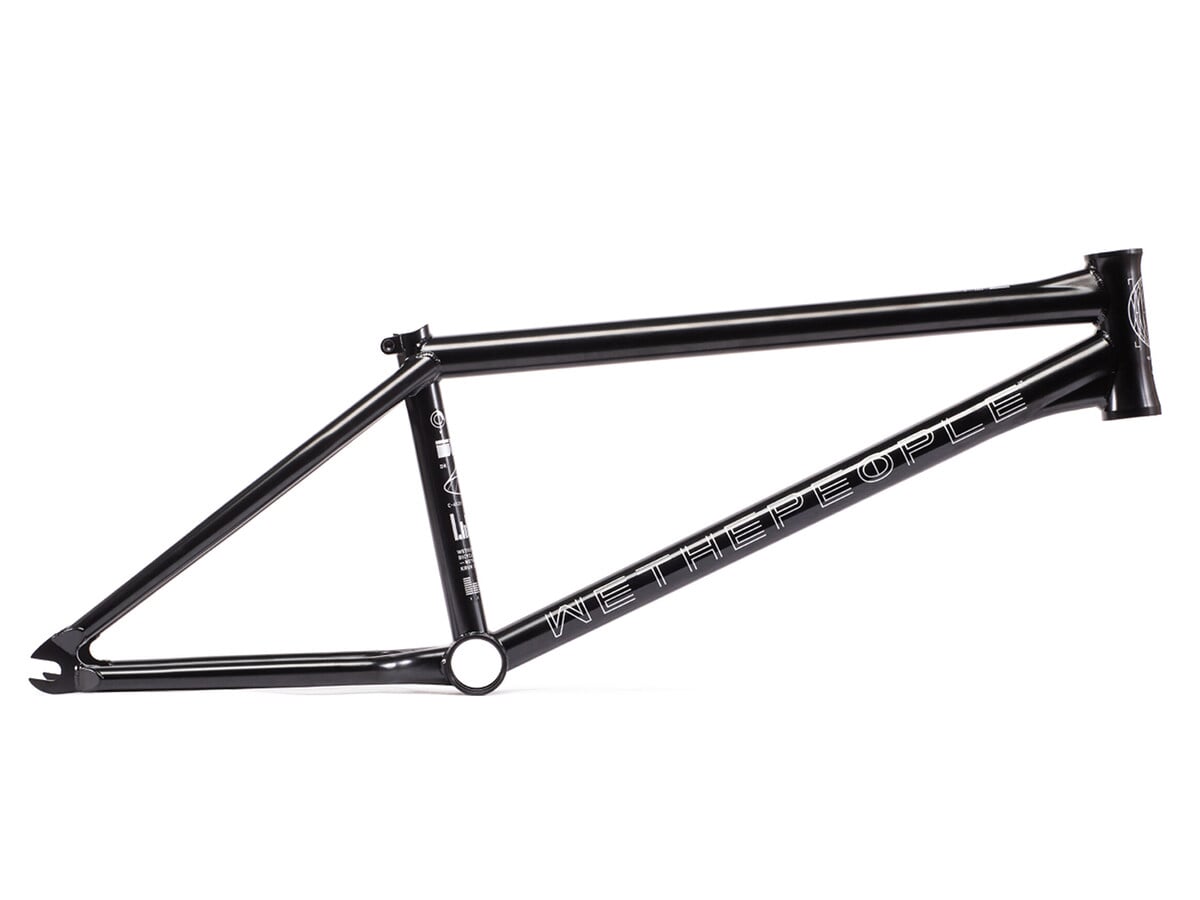

The wethepeople "Network" BMX Frame is the signature frame of BMX Pro Dan Kruk and was in accordance to his wishes and his riding style for top modern and technical Pro level street riding designed and manufactured. Dan wants to have a short, fast and strong frame. The wethepeople "Network" BMX Frame comes with some new features like the hydroformed top tube and down tube, new unique invest casted yoke/wishbone and a smooth short rear for modern techical BMX street riding. Furthermore the wethepeople "Network" BMX Frame has wider rear triangle for a 2.5" tire and has no brake hardware holes (brakeless).
Facts: wethepeople "Network" BMX Frame
- Wheel Size: 20"

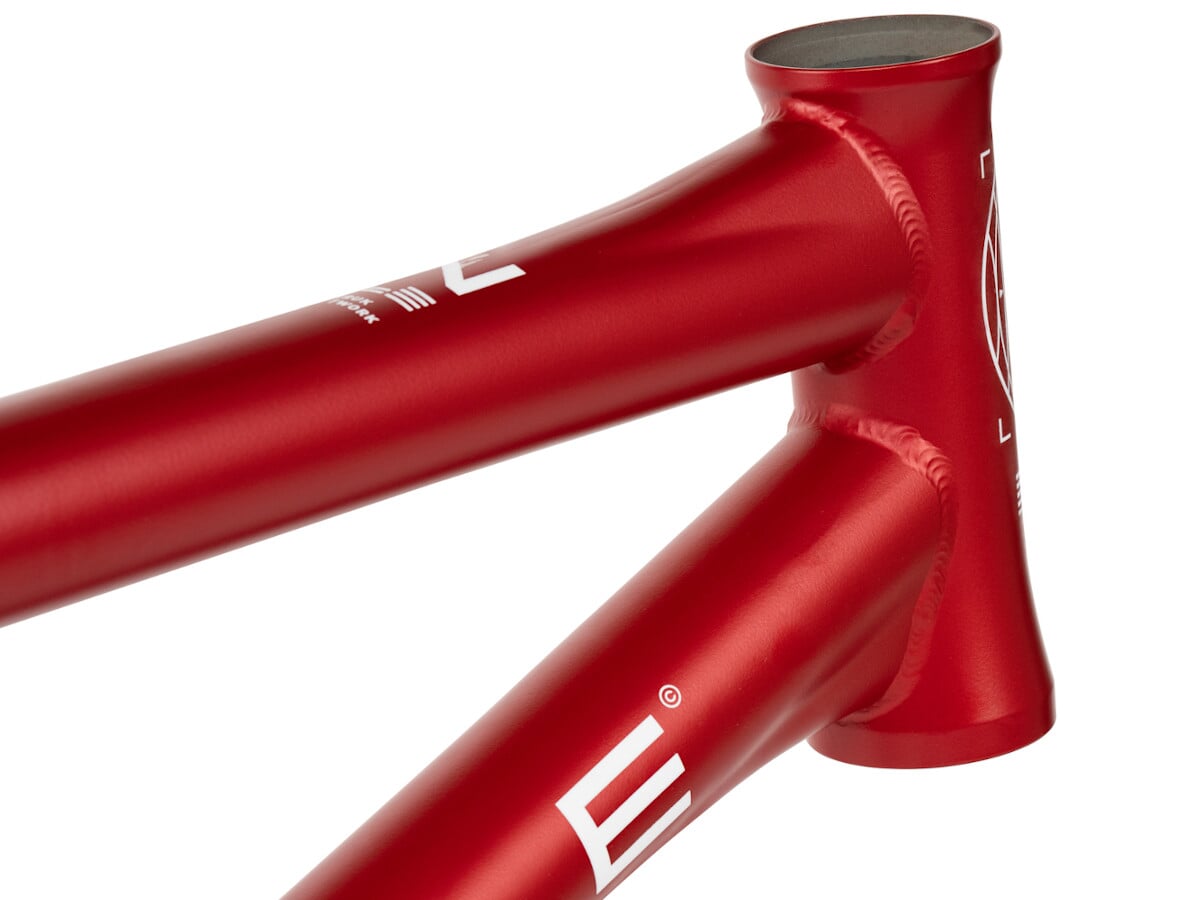

- Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset
- Geometry:
Top Tube Length (TT): 20.5", 20.8" or 21.1"
Chainstay Length (CS): 12.5" (31.75cm) - 12.9" (32.77cm)
Head Tube Angle (HA): 75.75°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.8" (29.97cm)
Standover Height (SO): 9.25" (23.49cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm

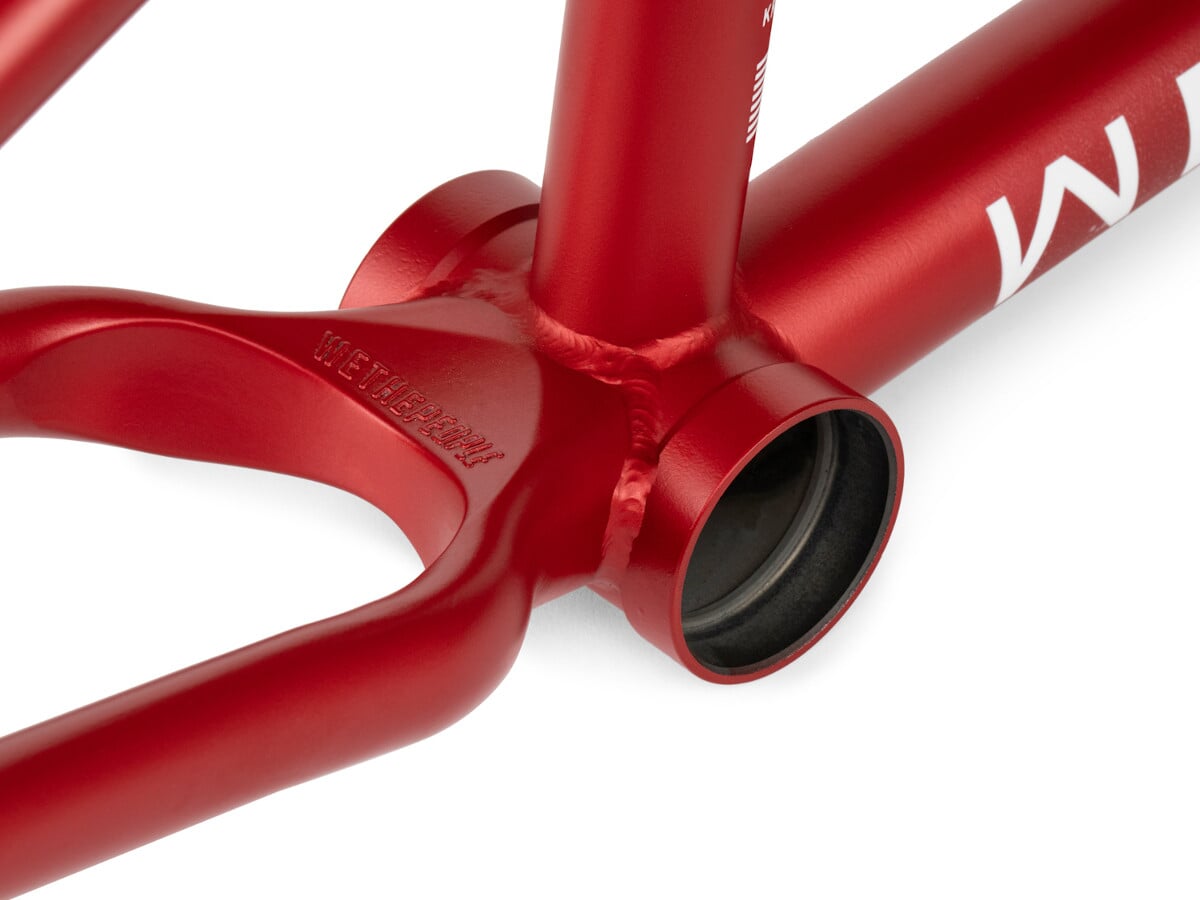

- Bottom Bracket: Mid BB
- Dropouts: CNC'd, 6mm thick, 14mm slots, new shape for perfect hubguard/peg fit
- Chain Tensioners: without
- Brake Type: without (brakeless)
- Brakemounts: without
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features: Dan Kruk signature frame, invest casted yoke/wishbone to increase strength, 12.5" chain stay for the snappiest and most responsive ride, 127mm tall to reduce the amount of spacers
- Model Year: 2021
