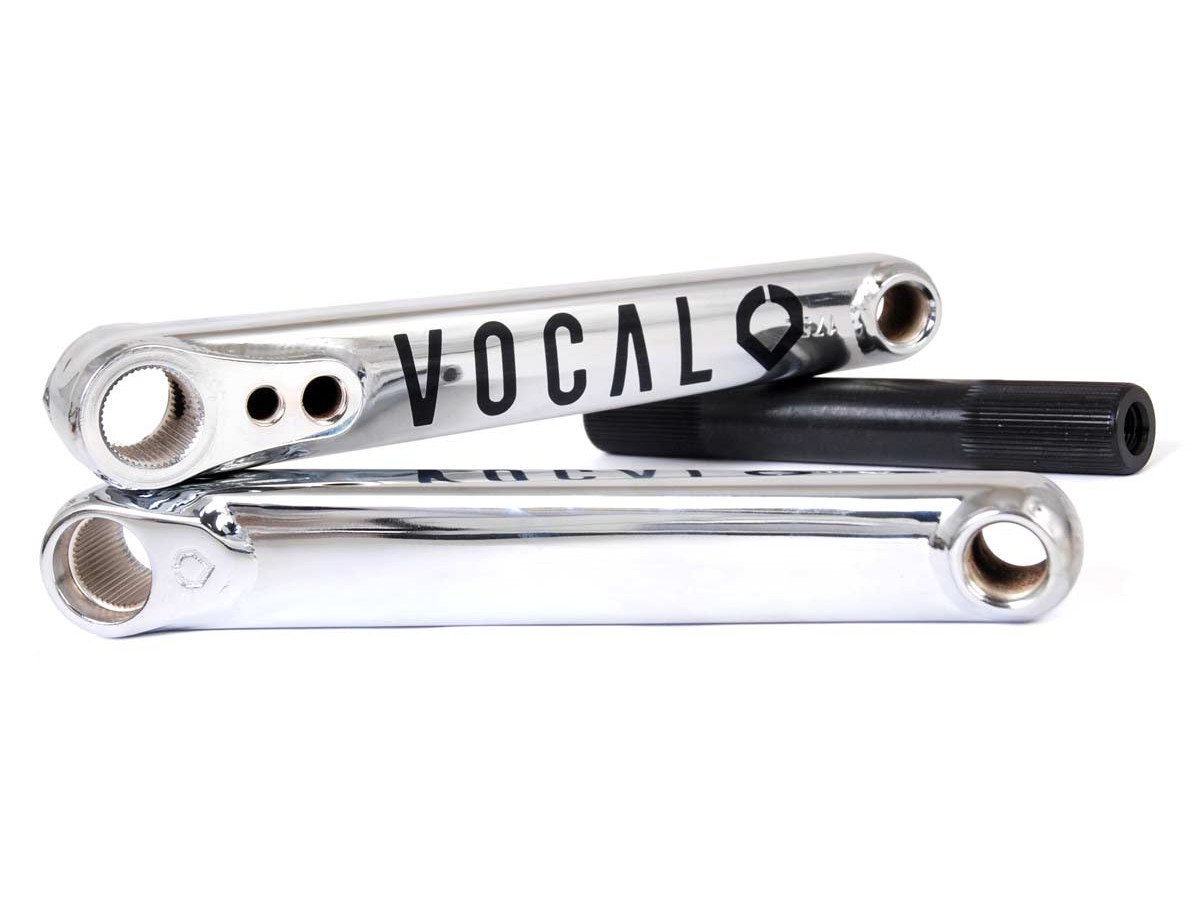

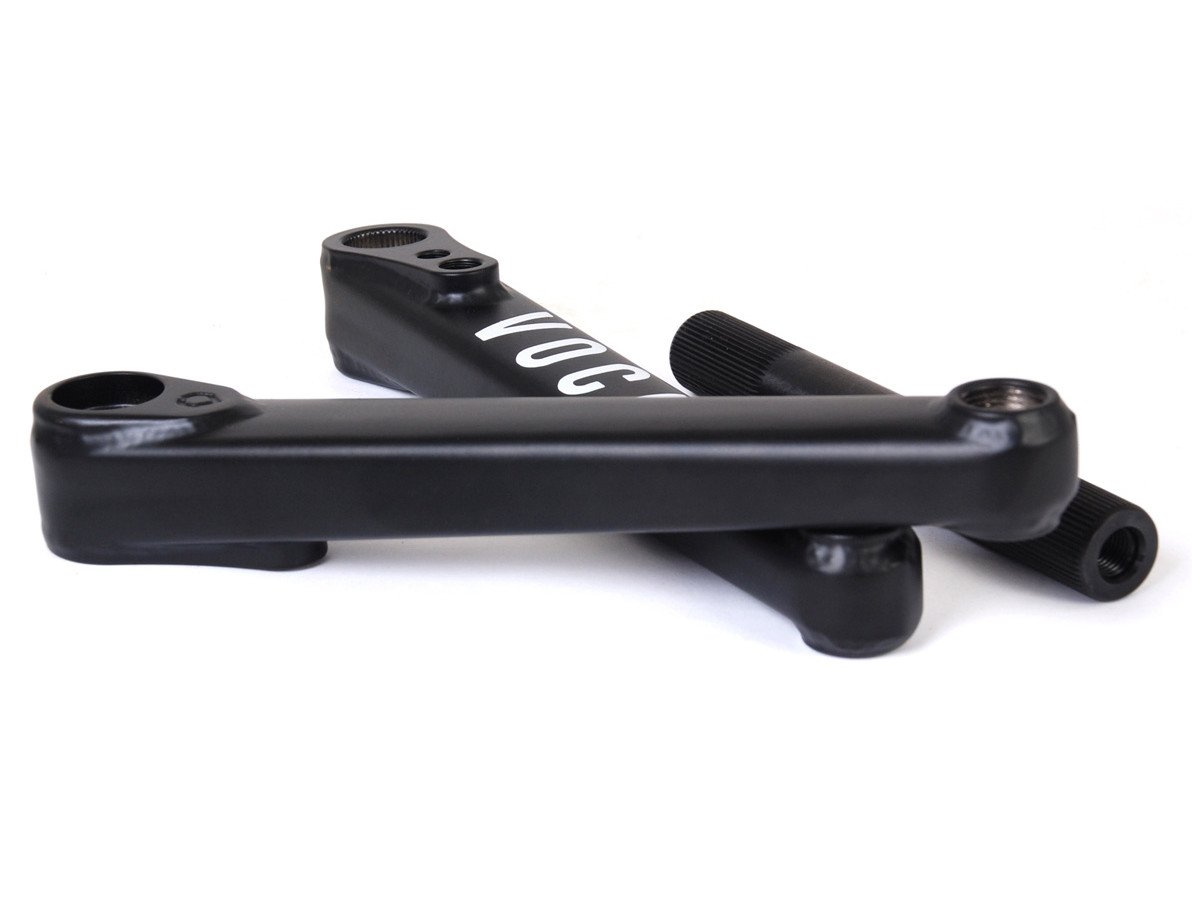

Vocal "Valentine" BMX Crank
- Weight : 0.89kg / 1.96lbs
- Packaging Unit: 1 Set
- Product ID (PID): 6619
The Vocal "Valentine" BMX Crank has extra ankle friendly investment cast crank boss with rounded edges. Also it has a lower profile than many other cranks on the market. You can mount the Vocal "Valentine" BMX Crank with an 6mm allan key on the left hand or the right hand side. In addition there is a nice little embossed Vocal Logo at the bolt area.
Facts: Vocal "Valentine" BMX Crank
- Material Crank Arms: 4130 CrMo, heat treated
- Material Crank Spindle: 4130 CrMo, heat treated, hollow
- Crank-Type: 3-piece
- Crank Arm Length: 170mm or 175mm
- Spindle Diameter: 19mm
- Spindle-Type: 48-Spline
- possible Sprocket Mount by:
Micro-Bolt-Drive (smaller then 25T): right (RHD) and left (LHD)
Bolt-Drive (25T or larger): right (RHD) and left (LHD)
Spline-Drive: right (RHD) and left (LHD) - Pedal Threat: for 9/16" pedals
- Spindle Bolt: 2x bolts (8x1mm, 19mm 8 Spline Axle) with 6mm allen key
- Sprocket Bolt: 1x bolt (10x1.5mm)(Standard), 1x bolt (8x1.25mm)(Micro-Drive)
- Extras: super ankle friendly investment cast crank boss, completely surround welded axle and pedal jacks, rectangular flattened arms, including removal tool, including assembly grease
- Recommended for: Street, Park, Trails or Flatland
