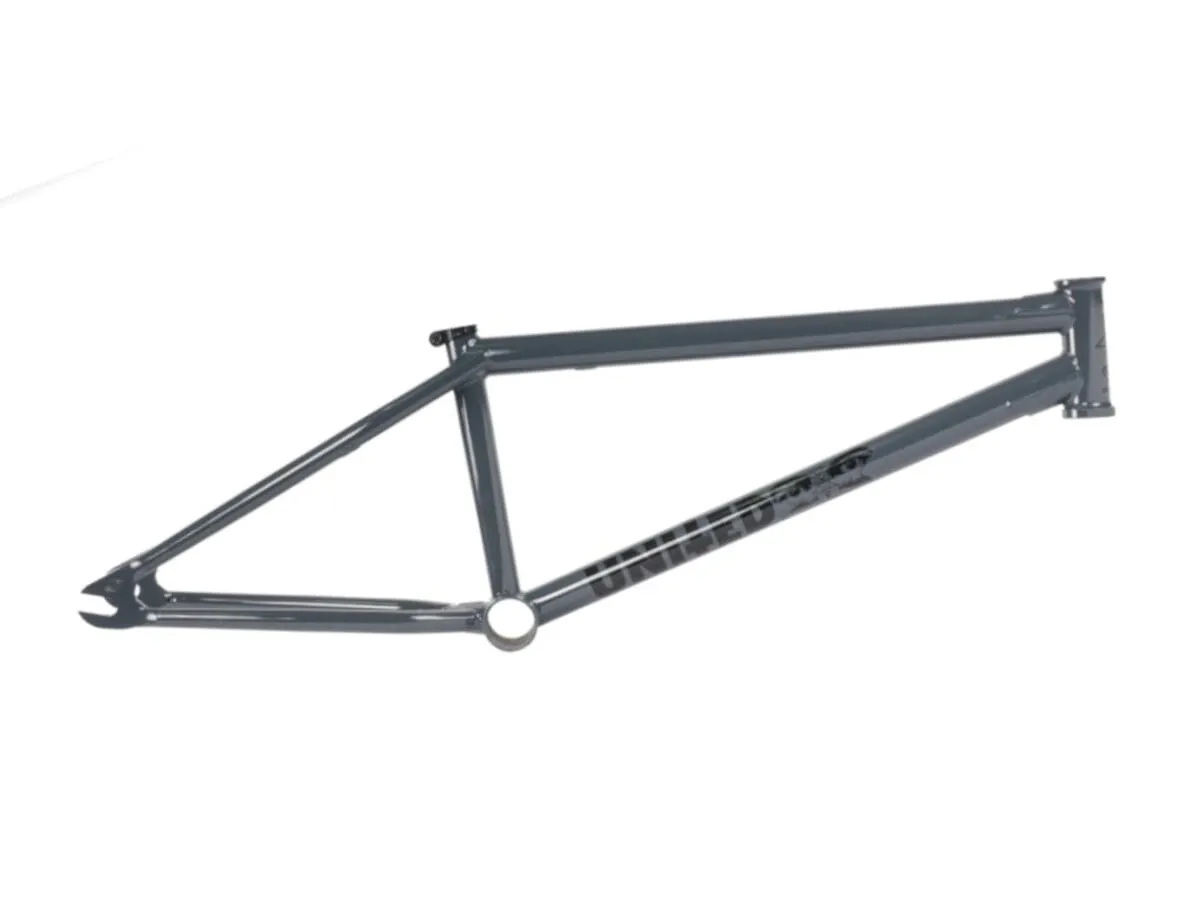

United Bikes "Incarnate V2" BMX Frame
- Weight : 2.27kg / 5.00lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 18035
The United Bikes "Incarnate V2" BMX Frame is the V2 version of the bulletproof Incarnate frame. The United Bikes "Incarnate V2" BMX Frame features a short chainstay, a tall bottom bracket, a long head tube and thick dropouts with integrated chain tensioners.
Facts: United Bikes "Incarnate V2" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, double butted tubes, top and down tubes with proven internal gusseting, tapered chainstays, integrated headset, removable brake hardware, Mid BB
- Geometry:
Top Tube Length (TT): 20.8" or 21.0"
Chainstay Length (CS): 13" (33cm) - 13.3" (33.78cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 70.25°
Bottom Bracket Height: 11.75" (29.85cm)
Standover Height (SO): 8.75" (22.22cm) - Seat Clamp: #99#
- Seat Post Diameter: 25.4mm

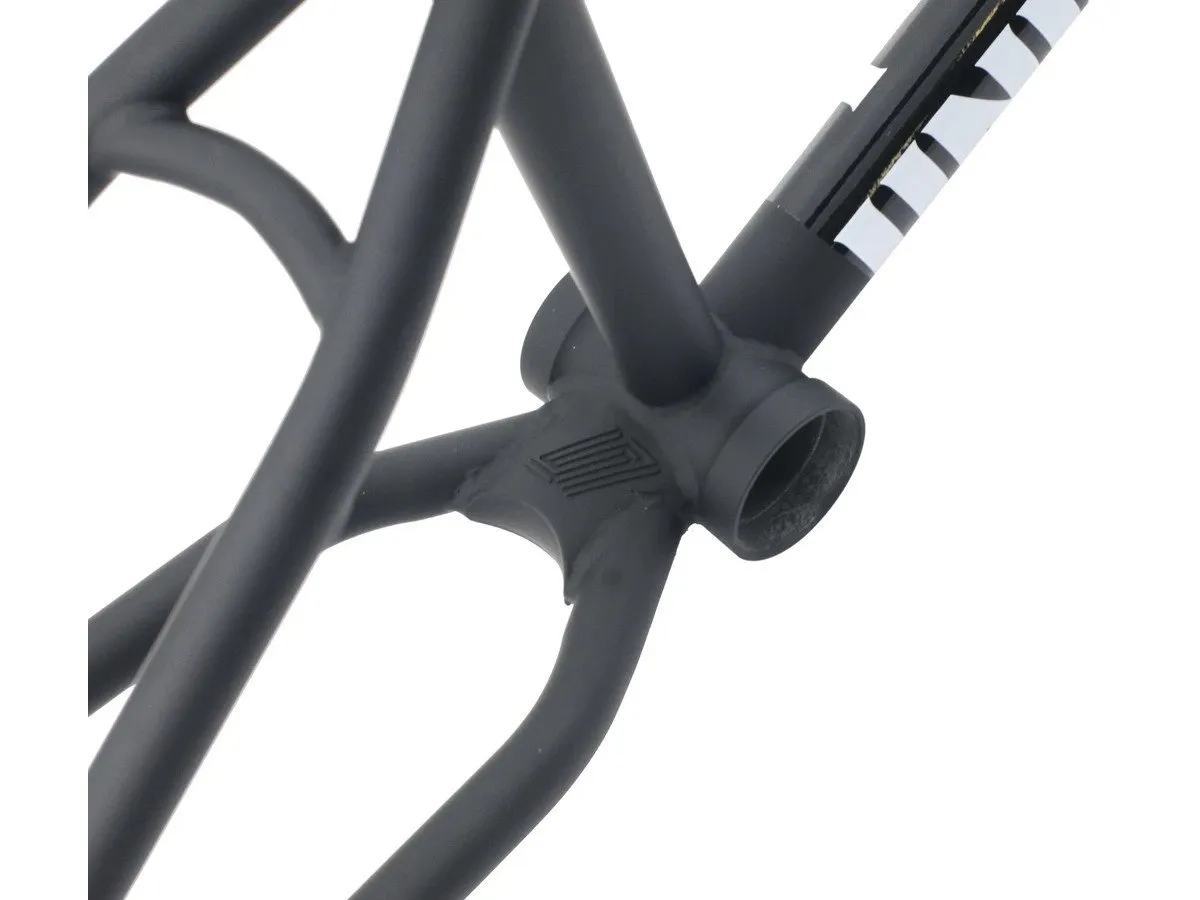

- Bottom Bracket: Mid BB

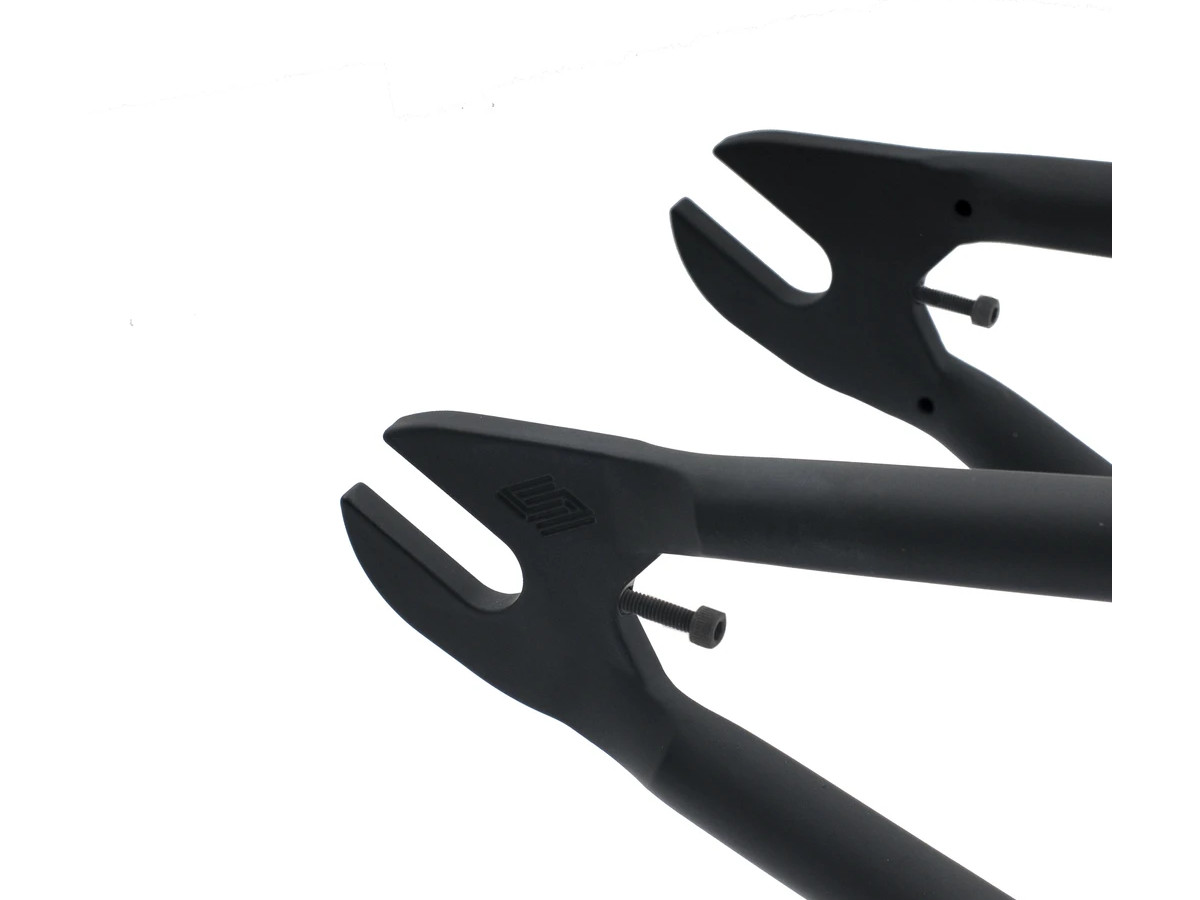

- Dropouts: 14mm slots, hollow 8mm wide dropouts
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Modern allround BMX frame, Wide rear end for fat 2.4" tires
- Model Year: 2022
