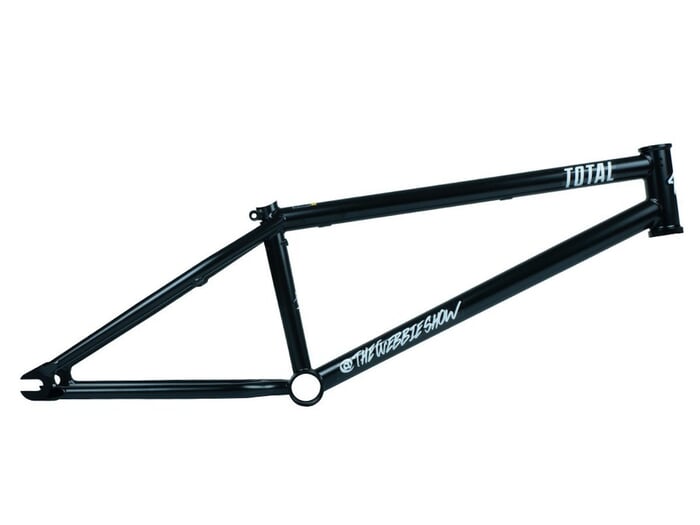

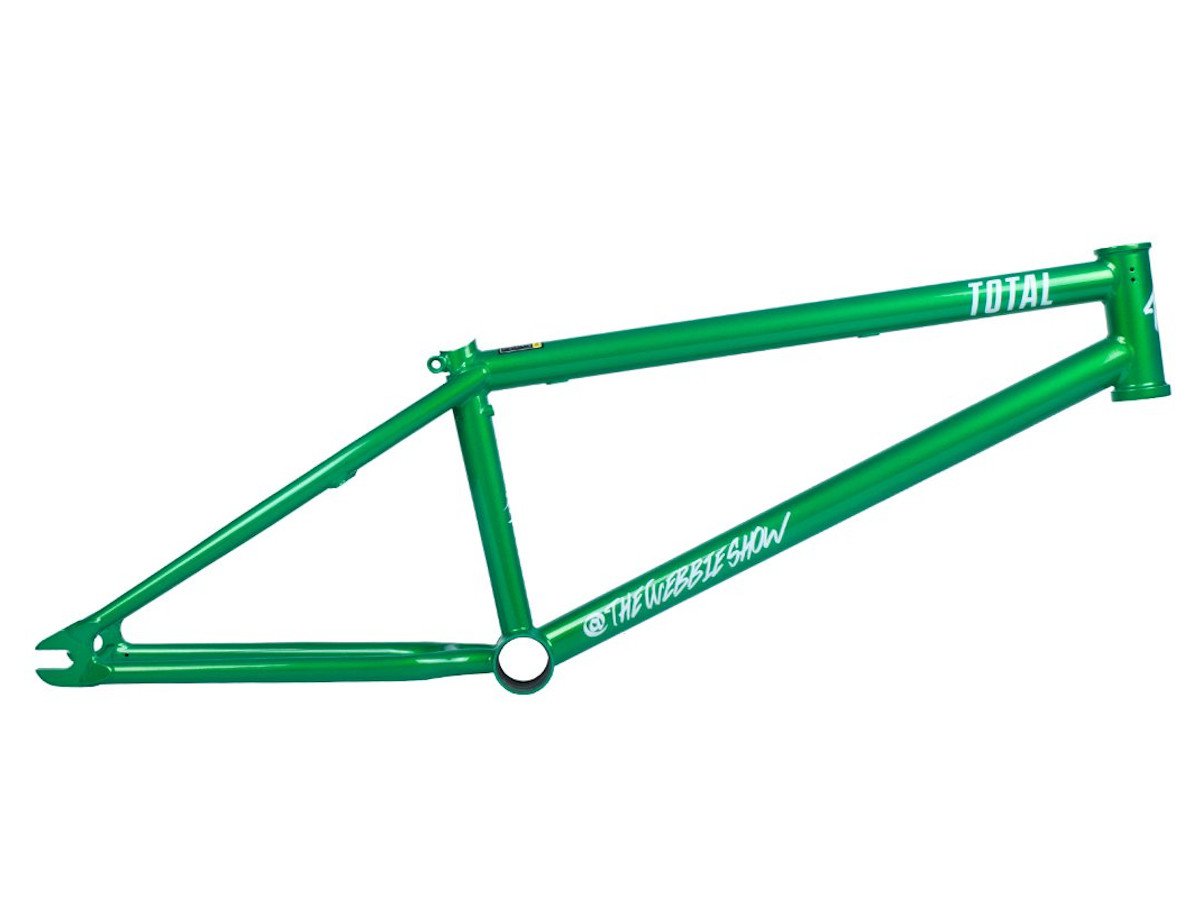

Total BMX "TWS Mark Webb 2" BMX Frame

The Total BMX "TWS Mark Webb 2" BMX Frame is Mark Webb's signature frame, was in accordance to his riding style and is the famous Voltron frame perfected. For the Total BMX "TWS Mark Webb 2" BMX Frame Total BMX added the DBS brake mod which works a treat and simplifies the lower brake cables of a gyro, this mod was originally designed by team mate Mark Webb but has been refined by total's product designer for the production model Americano frame. The Total BMX "TWS Mark Webb 2" BMX Frame is made from heat treated 100% 4130 CrMo and a steep 75.5° head tube paired with a 13.2" (slammed) rear end and a solid 8.75" standover height make this high quality BMX frame very responsiv.

Facts: Total BMX "TWS Mark Webb 2" BMX Frame

• Wheel Size: 20"
• Material: 100% 4130 CrMo, tapered tubes, integrated headset, integrated seatclamp, removable brake hardware, Mid BB
• Geometry:
  Top Tube Length (TT): 20.3" or 21.25"
  Chainstay Length (CS): 13.2" (33.53cm) - 13.4" (34.04cm)
  Head Tube Angle (HA): 75.5°
  Seat Tube Angle (SA): 71°
  Bottom Bracket Height: 11.5" (29.21cm)
  Standover Height (SO): 8.75" (22.22cm)
• Seat Clamp: integrated
• Seat Post Diameter: 25.4mm
• Bottom Bracket: Mid BB
• Dropouts: Investment cast, 6mm thick, 14mm slots
• Chain Tensioners: without
• Brake Type: U-Brake
• Brakemounts: with (screwable, M8)
• Brakemounts included with delivery: No
• Gyro compatible: Yes
• Features: Mark Webb Signature frame, Brake Mod "DBS" (Dual Brake System), Wide rear end for fat 2.4" tires, Removable brake mounts plus DBS kit and tabs all included
• Model Year: 2020
