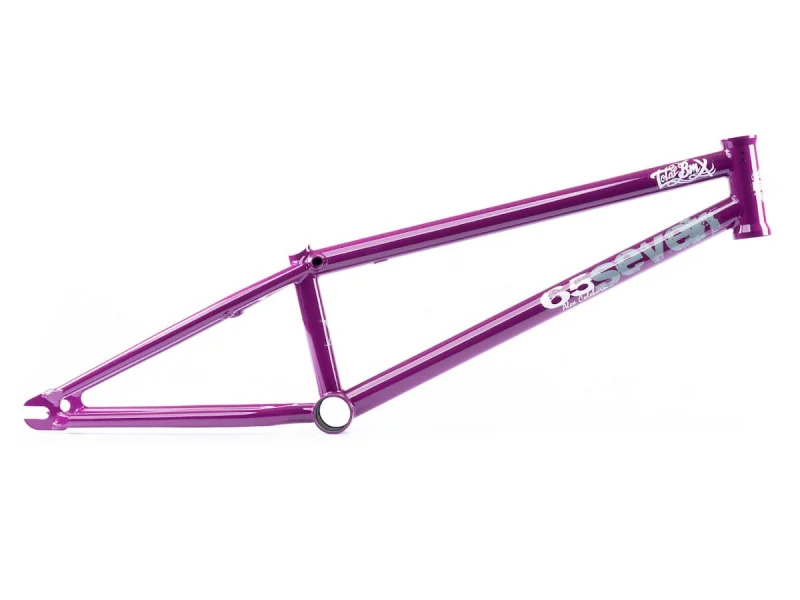

Total BMX "657 10 Years" BMX Frame
The Total BMX "657 10 Years" BMX Frame is Alex Coleborn's signature frame and was in accordance to his wishes and his riding style for modern and technical Pro level BMX Park riding designed and manufactured. Alex asked for the H3 to be freshened up in all areas, it is now more responsive due to a shorter rear end and steeper head tube angle. Total have also managed to make it a little lighter than the previous model without sacrificing any strength.For the Total BMX "657 10 Years" BMX Frame Total BMX added the DBS brake mod which works a treat and simplifies the lower brake cables of a gyro, this mod was originally designed by team mate Mark Webb but has been refined by total's product designer for the production model Hangover frame.
Facts: Total BMX "657 10 Years" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, tapered chainstays, integrated headset, integrated seatclamp, removable brake hardware, Mid BB, integrated chain adjusters
- Geometry:
Top Tube (TT): 20.4", 20.6" or 21.0"
Chain Stay (CS): 12.6” - 12.9”
Head Tube Angle (HA): 75.25°
Seat Tube Angle (SA): 71°
BB Height: 11.5"
Standover Height (SO): 7.3" - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: 6mm thick, 14mm slots
- Chain Tensioners: integrated
- Brakemounts: removable (not included with delivery)
- Extras: Alex Coleborn Signature frame
- Model Year: Alex Coleborn, Brake Mod "DBS" (Dual Brake System), Wide rear end for fat 2.4" tires
