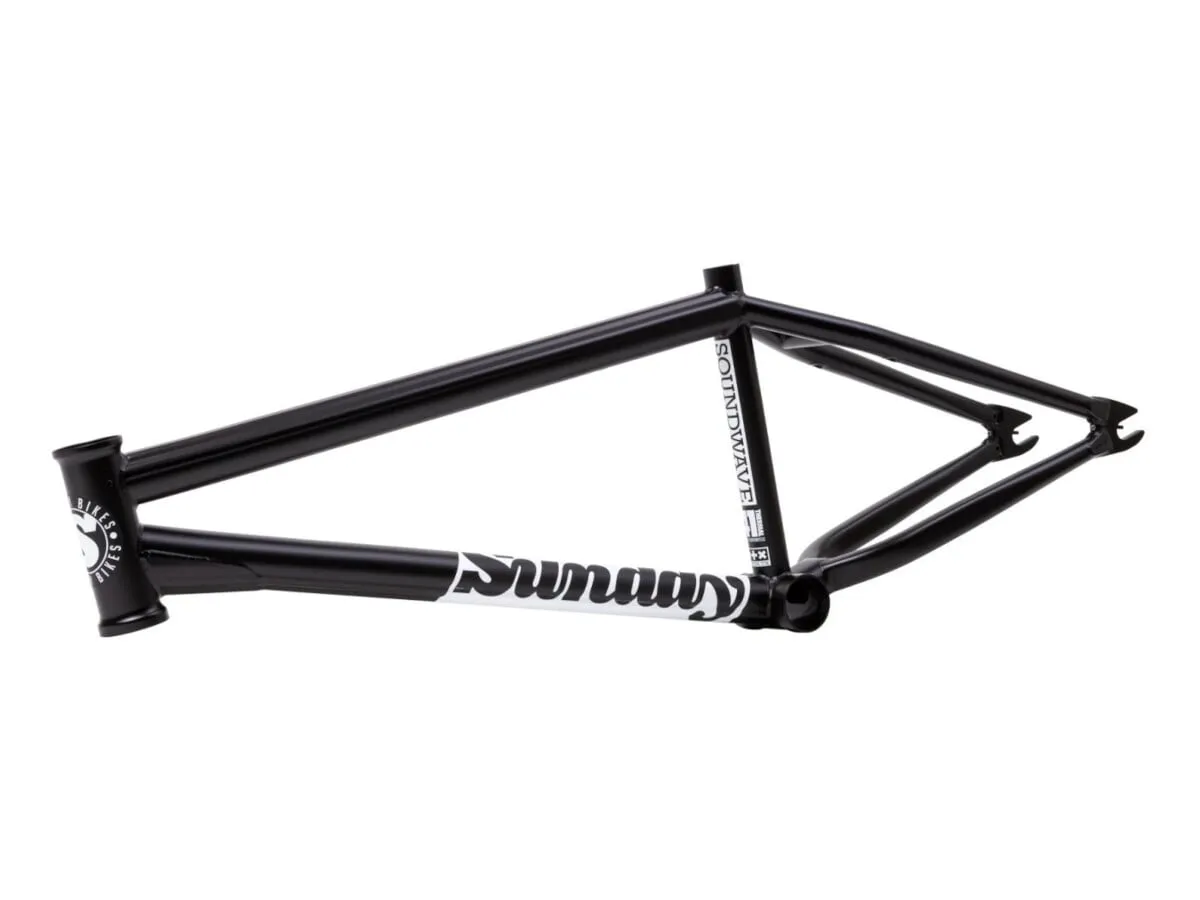

Sunday Bikes "Soundwave V3" 2024 BMX Frame
- Weight : 2.22kg / 4.89lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 27414
The Sunday Bikes "Soundwave V3" 2024 BMX Frame is a classic and has been part of the lineup since 2007, continuously refined and developed over the years. In the 2024 version, the geometry has been updated with a shorter rear triangle to meet current needs. Additionally, the frame now features 8mm thick, hollow dropouts and hardened bottom bracket and head tube. Thanks to its waved downtube and wishbone on the rear triangle, the Sunday Bikes "Soundwave V3" 2024 BMX Frame is extremely durable and an outstanding all-round frame.
Facts: Sunday Bikes "Soundwave V3" 2024 BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset
- Geometry:
Top Tube Length (TT): 20.75", 21.0" or 21.25"
Chainstay Length (CS): 13.2" (33.53cm) - 13.5" (34.29cm)
Head Tube Length: 5" (12.7cm)
Head Tube Angle (HA): 75°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.5" (29.21cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: without
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 8mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: Yes
- Gyro compatible: Yes
- Features: Wide rear end for fat 2.4" tires
- Model Year: 2024
