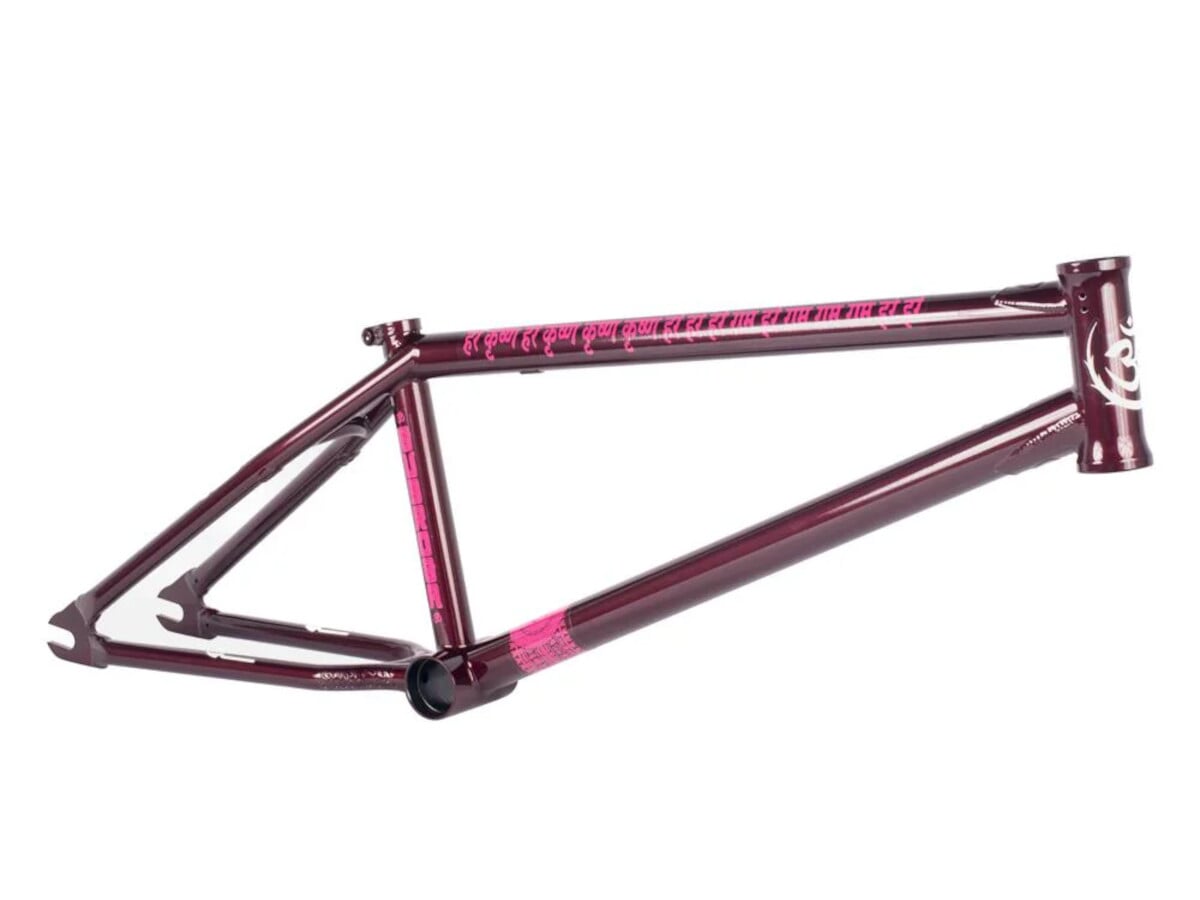

Subrosa Bikes "OM V2" BMX Frame
-
Weight : 2.18kg / 4.81lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:- Manufacturer's weight specifications may be inaccurate or incomplete.
- The weight of two identical parts can also differ.
- We cannot weigh every individual part.
Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 24662
The Subrosa Bikes "OM V2" BMX Frame is the signature BMX Frame of Joris Coulomb and was designed to his specifications of clean riding style. The Subrosa Bikes "OM V2" BMX Frame is made by 100% 4130 CrMo and utilizing a 11.7" bottom bracket height for clearance, 12.7" slammed rear end, and a taller 125mm head tube.
Facts: Subrosa Bikes "OM V2" BMX Frame
- Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, integrated headset, removable brake hardware, Mid BB
- Geometry:
Top Tube Length (TT): 20.5", 20.75" or 21.0"
Chainstay Length (CS): 12.7" (32.26cm) - 13.4" (34.04cm)
Head Tube Length: 5" (12.7cm)
Head Tube Angle (HA): 75°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.7" (29.72cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: 6.5mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Joris Coulomb Signature frame, wide rear end for fat 2.4" tires
- Model Year: 2022
