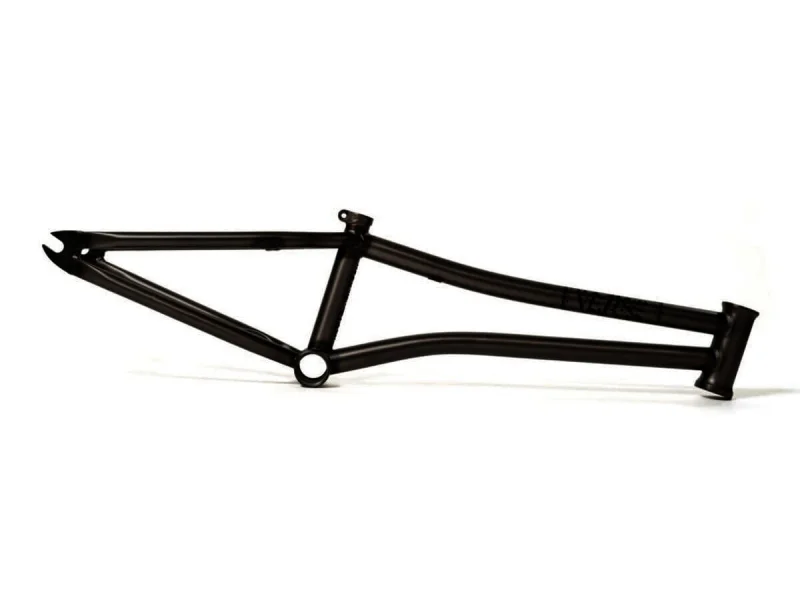

Nous BMX "Verse" BMX Frame
-
Weight : 2.05kg / 4.52lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:- Manufacturer's weight specifications may be inaccurate or incomplete.
- The weight of two identical parts can also differ.
- We cannot weigh every individual part.
Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 25058
The Nous BMX "Verse" BMX Frame was designed in Japan by professional BMX Flatland riders and is aiming towards the needs of BMX Flatland but also for occasional use in the streets or parks. The Nous BMX "Verse" BMX Frame combines classic design with modern technology such as integrated chain tensioners, 6mm thick dropouts and enough space for wider rear tires.
Facts: Nous BMX "Verse" BMX Frame
- Wheel Size: 20"
- Material: 100% japanese 4130 CrMo, down tube gusset, butted tubes, tapered chainstays, integrated headset
- Geometry:
Top Tube (TT): 18.9"
Chainstay Length (CS): 12.4" (31.5cm) - 12.8" (32.51cm)
Head Tube Angle (HA): 74.5°
Seat Tube Angle (SA): 73°
Bottom Bracket Height: 11.9" (30.23cm)
Standover Height (SO): 6.2" (15.5cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Spanish BB
- Dropouts: 6mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
