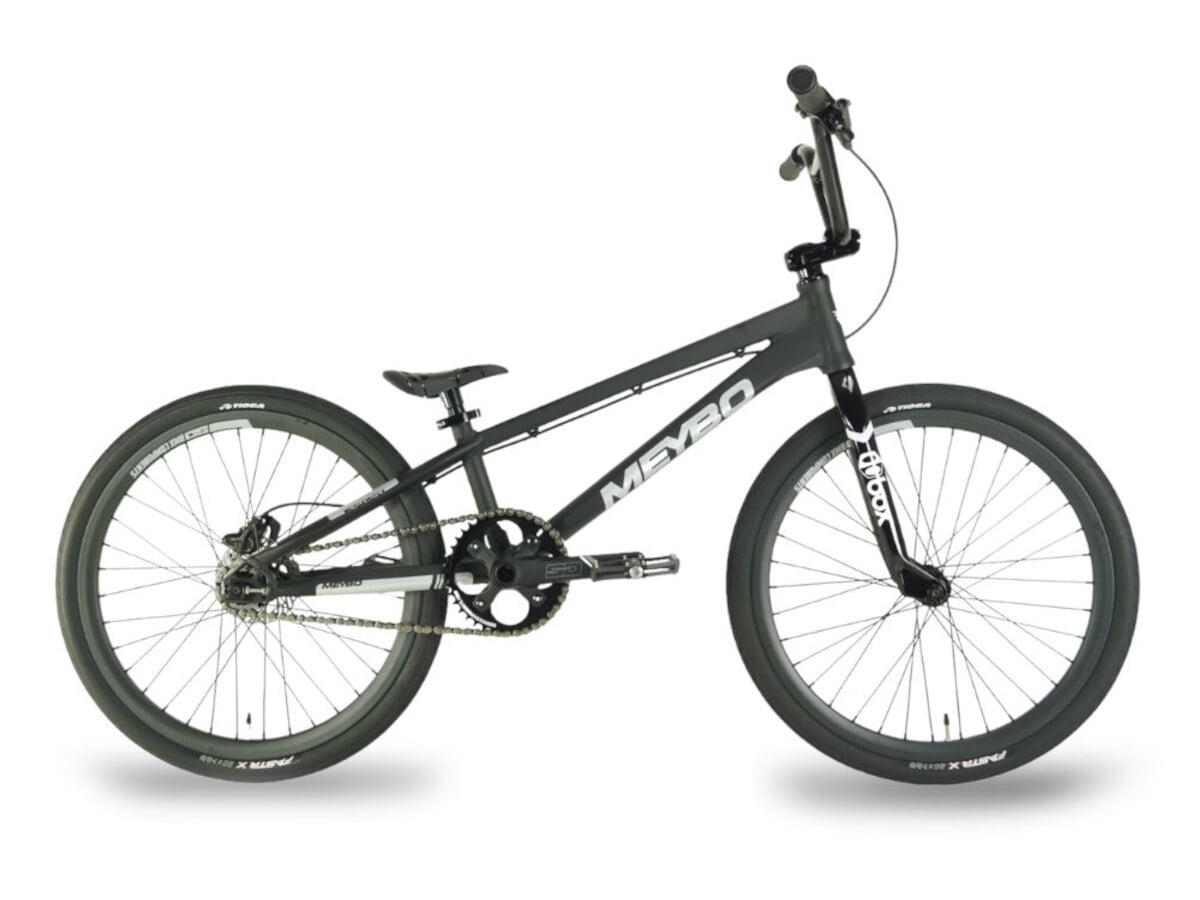

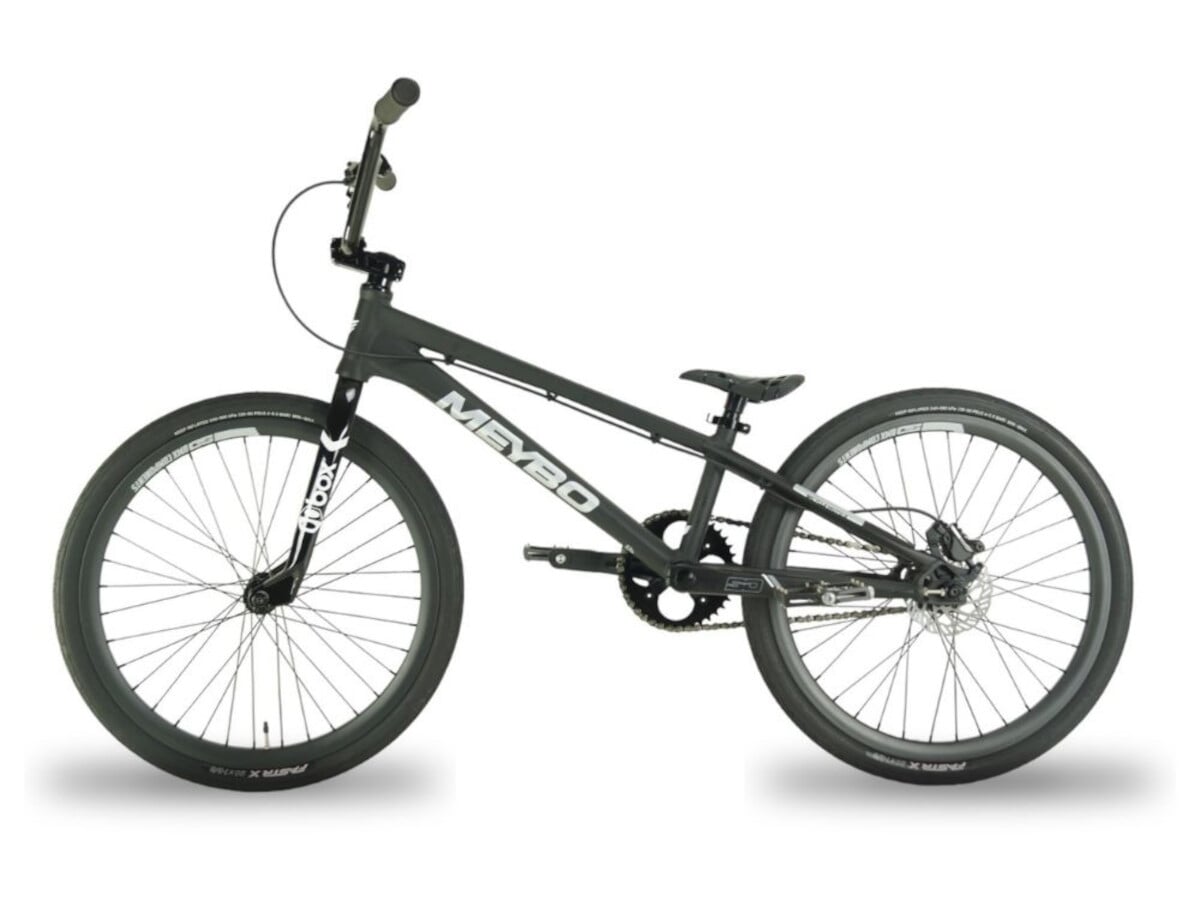

Meybo "Patron Expert" 2024 BMX Race Bike - Shiny Grey
- Weight : 12.1kg / 26.68lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 28005
The Meybo "Patron Expert" 2024 BMX Race Bike - Shiny Grey is designed for BMX racing and stands out with high-quality components. The Meybo "Holeshot" frame, a BOX "One XL" fork made of carbon, hubs with sealed industrial bearings, and a hydraulic braking system ensure top performance. The Meybo "Patron Expert" 2024 BMX Race Bike - Shiny Grey also features integrated chain tensioners and a 6-pawl cassette hub. The top tube length of 19.69" is suitable for riders with a height of approximately 1.60m and above.
Facts: Meybo "Patron Expert" 2024 BMX Race Bike - Shiny Grey
- Wheel size: 20"
- BMX frame: Meybo "Holeshot" 2021, T6-6061 aluminum
Top tube (TT): 19.69"
Chain stay (CS): 13.58"
Head tube (HA): 73.5°
Seat tube (SA): 71° - BMX fork: BOX "One XL, carbon, 1-1/8" 10mm
- BMX handlebar: SD, aluminum, 1-piece
- Grips: SD "Lock-On", 130mm long
- Stem: SD, topload, 50mm offset
- Headset: FSA, sealed, 1-1/8" A-Head Set
- Rotor: -
- Brake lever: Shimano "MT501" aluminum, hydraulic
- Brake (rear): Shimano "MT501" aluminum, hydraulic
- Saddle: Box "Two Mini" Combo
- Seat post: Combo, aluminum, 25.4mm
- Seat clamp: SD, aluminum, 25.4mm
- Pedals: Wellgo "B-219" Sealed Bearing, CNC platform, aluminum
- Chain: KMC "K13", 1/2" x 3/32"
- Chainring: SD "V2", CNC 6061 aluminum, 4H, 39T
- Crank: SD "Expert 4-lite" 4H, 160mm long, 9/16"
- Bottom bracket: EURO (BB (BSA: EB24), square taper, sealed bearing
- Hub (front): SD "Ace", aluminum, sealed, 8mm, female screws
- Hub (rear): SD "Ace" cassette, disc brake mount, 36H, 6-pawl, 180 teeth, 8mm female screws - ISO 6
Driver: 16T - Rim (front): SD "83", carbon, 36H, 20" x 1"-3/8
- Rim (rear): SD "83", carbon, 36H 20" x 1"-3/8
- Tires (front): Tioga "FastR" BMX Race Tires
Width: 20" x 1-3/8" - Tires (rear): Tioga "FastR" BMX Race Tires
Width: 20" x 1-3/8" - Pegs: -
