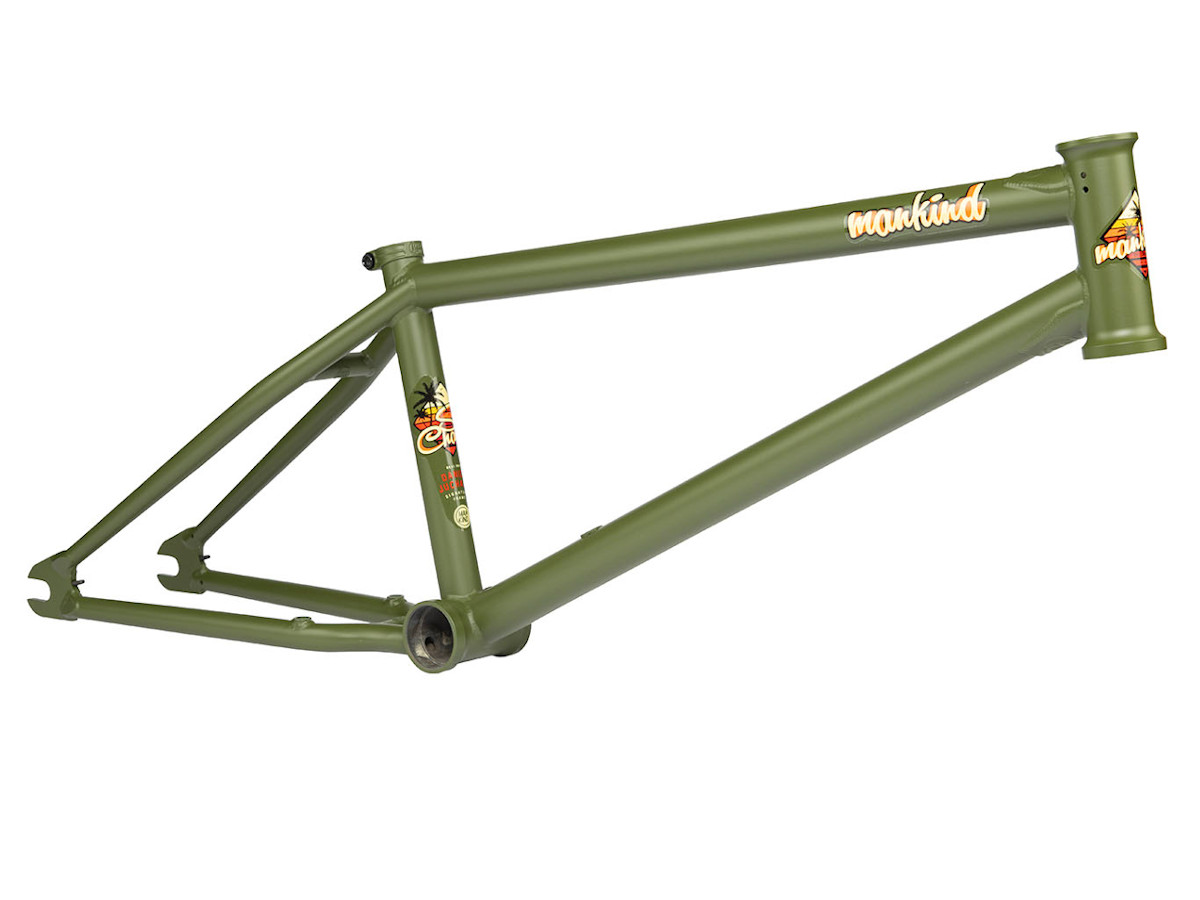

Mankind Bike Co. "Sunchaser" BMX Frame - Matte Army Green
- Weight : 2.1kg / 4.63lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 18499
The Mankind Bike Co. "Sunchaser" BMX Frame - Matte Army Green is the signature frame of Daniel Juchatz and is designed to be a park and trails frame with an ideal geometry and features for this type of riding style. Moderate stand over height, integrated chain tensioners on 6mm dropouts, TT & DT gussets and longer chain stays with 13.5"(slammed) to give you all you need to have a solid trails and park machine.
Facts: Mankind Bike Co. "Sunchaser" BMX Frame - Matte Army Green
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset
- Geometry:
Top Tube Length (TT): 20.5" or 20.75"
Chainstay Length (CS): 13.5" (34.29cm) - 13.9" (35.31cm)
Head Tube Angle (HA): 74.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.5" (29.21cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: 6mm thick, 14mm slot
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Daniel Juchatz Signature frame, Wide rear end for fat 2.4" tires
- Model Year: 2020
