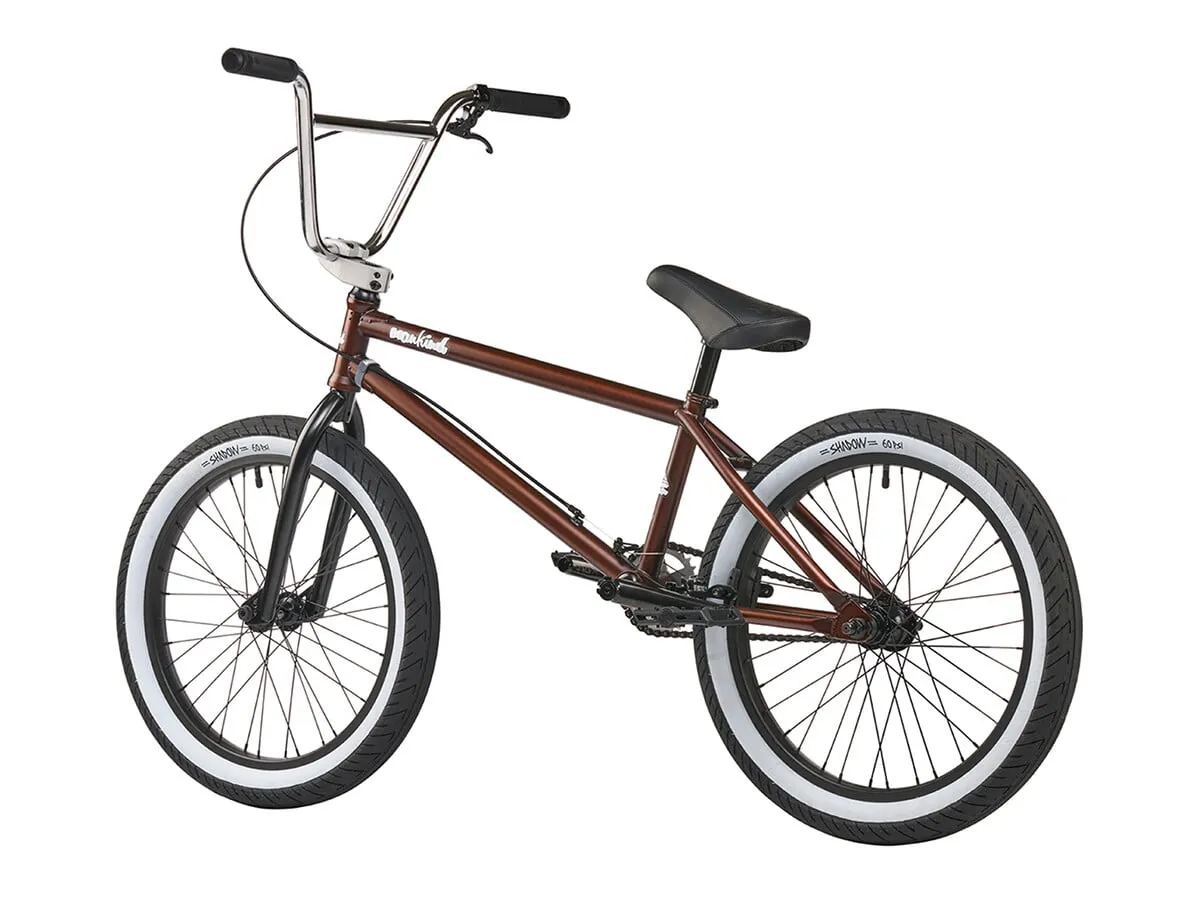

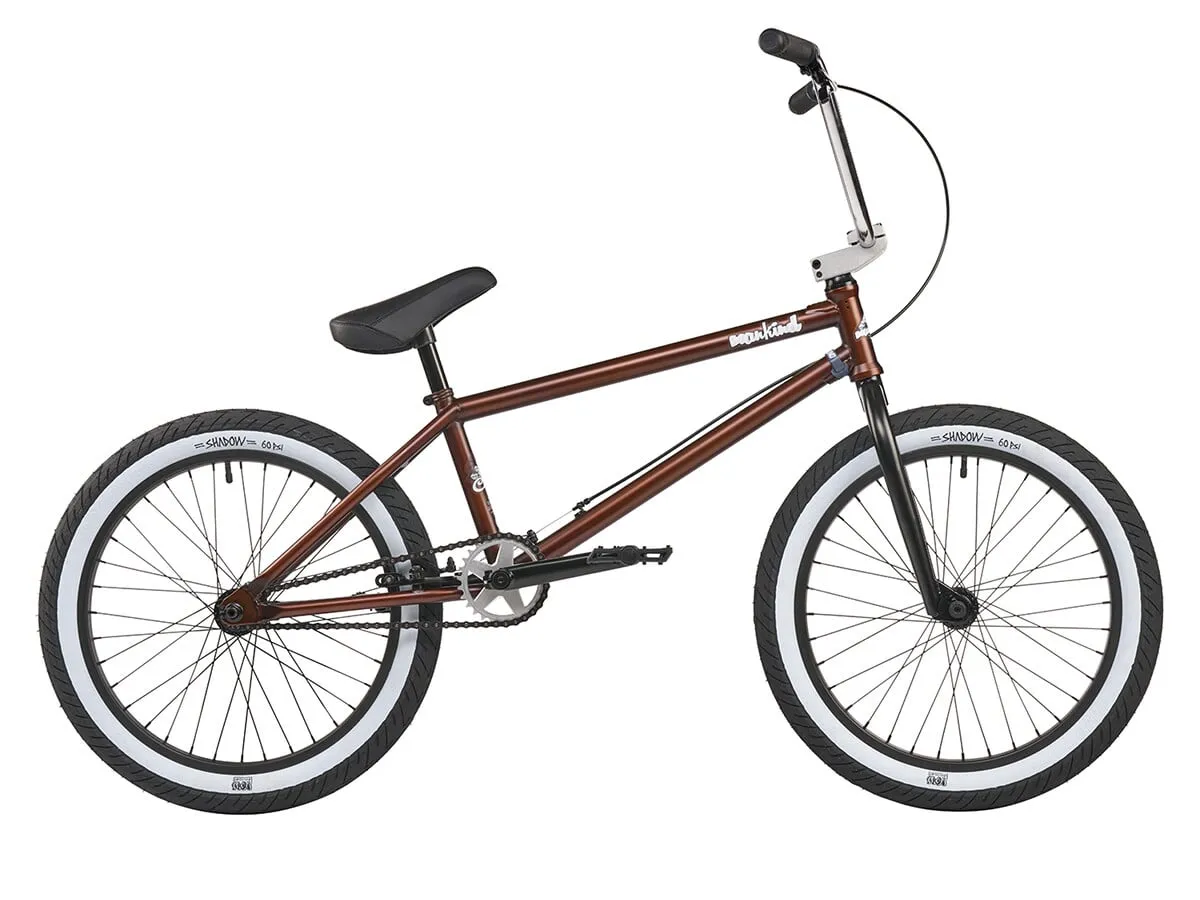

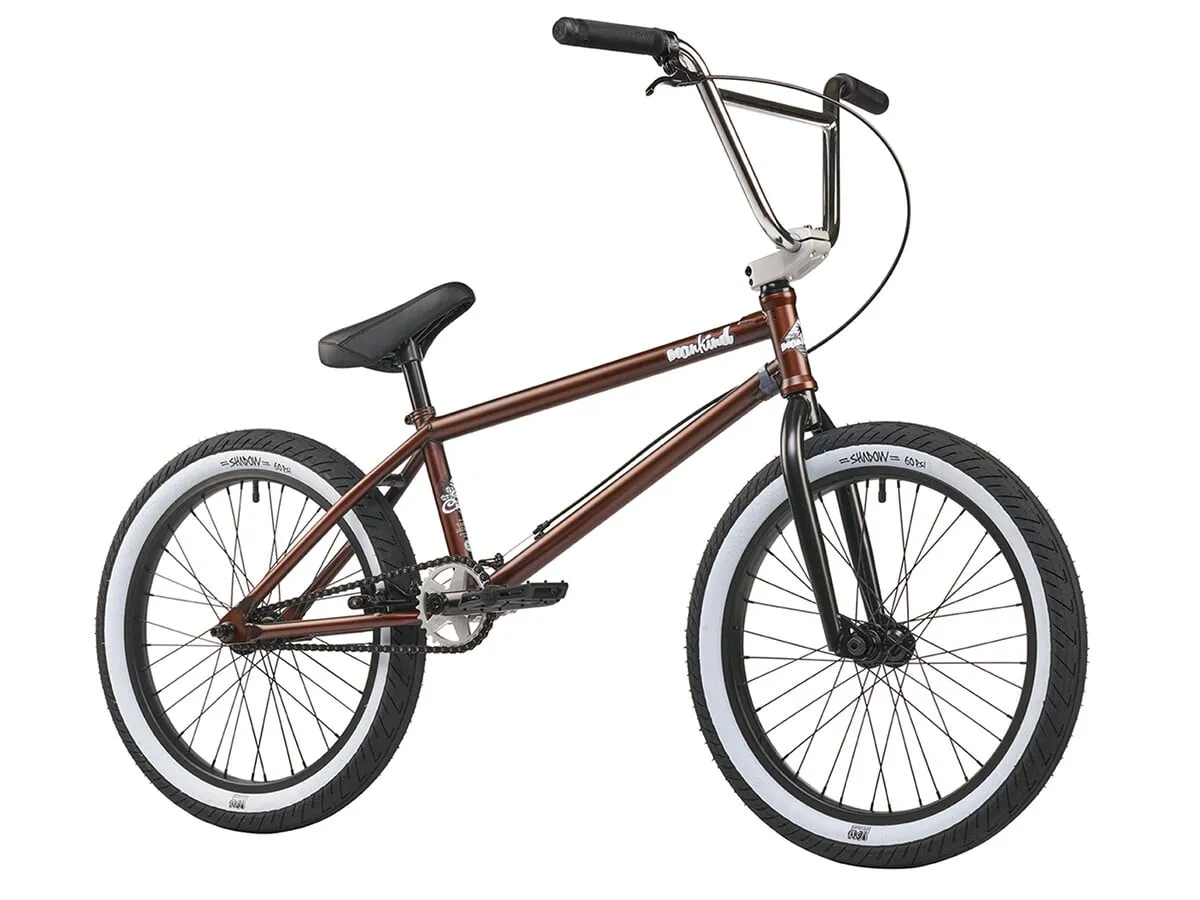

Mankind Bike Co. "Sunchaser 20" BMX Bike - Semi Matte Trans Copper
- Weight : 11.9kg / 26.24lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 23717
The Mankind Bike Co. "Sunchaser 20" BMX Bike - Semi Matte Trans Copper comes with a 21" toptube (TT) aimed to BMX rider from approx. 170cm. The Mankind Bike Co. "Sunchaser 20" BMX Bike - Semi Matte Trans Copper gives you all you need, 100% CrMo frame, fork and bar, fully sealed front hub, fully sealed rear Cassette Hub, sealed integrated Headset and sealed mid bottom bracket. The Mankind Bike Co. "Sunchaser 20" BMX Bike - Semi Matte Trans Copper also features The Shadow Conspiracy Strada Nuova LP 2.3" tires, double wall and welded rims and Mankind "Sunchaser" 28t Alloy sprocket.
Facts: Mankind Bike Co. "Sunchaser 20" BMX Bike - Semi Matte Trans Copper
- Wheel Size: 20"

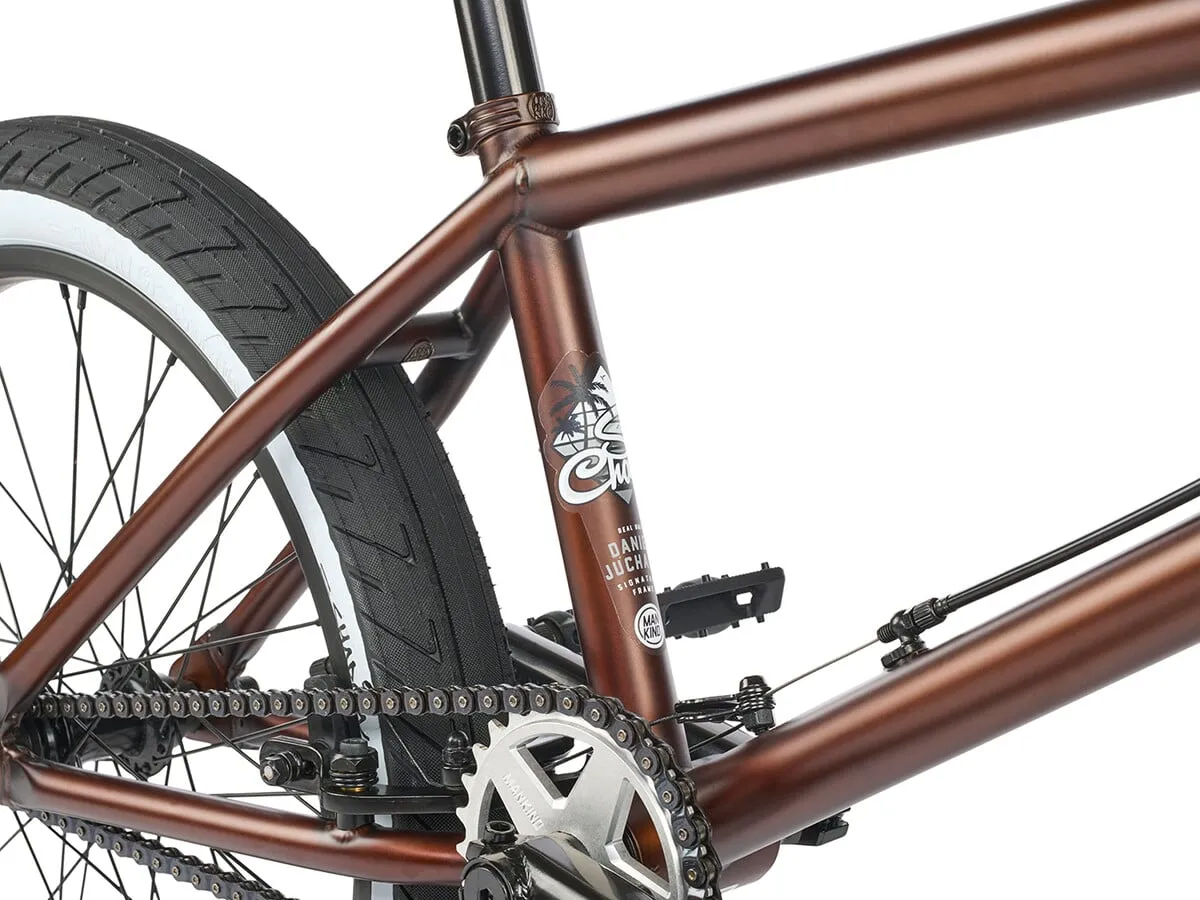

- BMX Frame: 100% 4130 CrMo, Gusset at top- and downtube, removable U-brake sockets, integrated headset, integrated seatclamp, Mid BB
Top Tube (TT): 21.0"
Chain Stay (CS): 13.75"
Head Tube (HA): 74.5°
Seattube (SA): 71°
BB-High (BB): 11.5"
Standover (SO: 9" - BMX Fork: 100% 4130 CrMo, 1-1/8", 1-piece steerer, tapered legs, 28mm offset
- BMX Bar: 100% 4130 CrMo, 2-piece
Height: 9.2"
Width: 29"
Backsweep: 12°
Upsweep: 2°
Clamping Diameter: 22.2mm - Grips: Mankind "Control Flangeless" grips, rubber, plastic barends

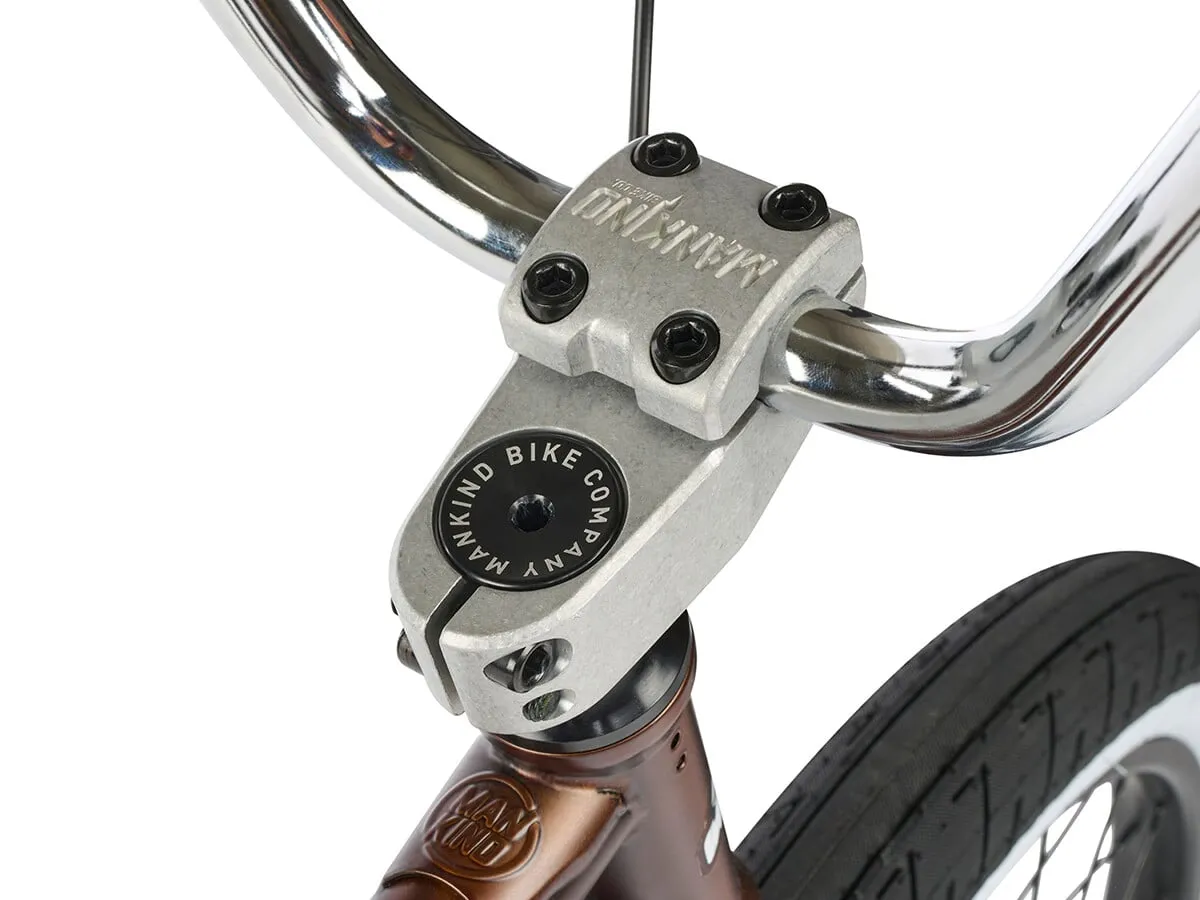

- Stem: Mankind "Sunchaser", topload, aluminum, 50mm reach
- Headset: Mankind "Control", 1-1/8" integrated, sealed bearing (SB)
- Gyro: -
- Gyro compatible: Yes
- Brake Lever: aluminum, 2-finger, hinged
- Brake: U-brake, aluminum, rear

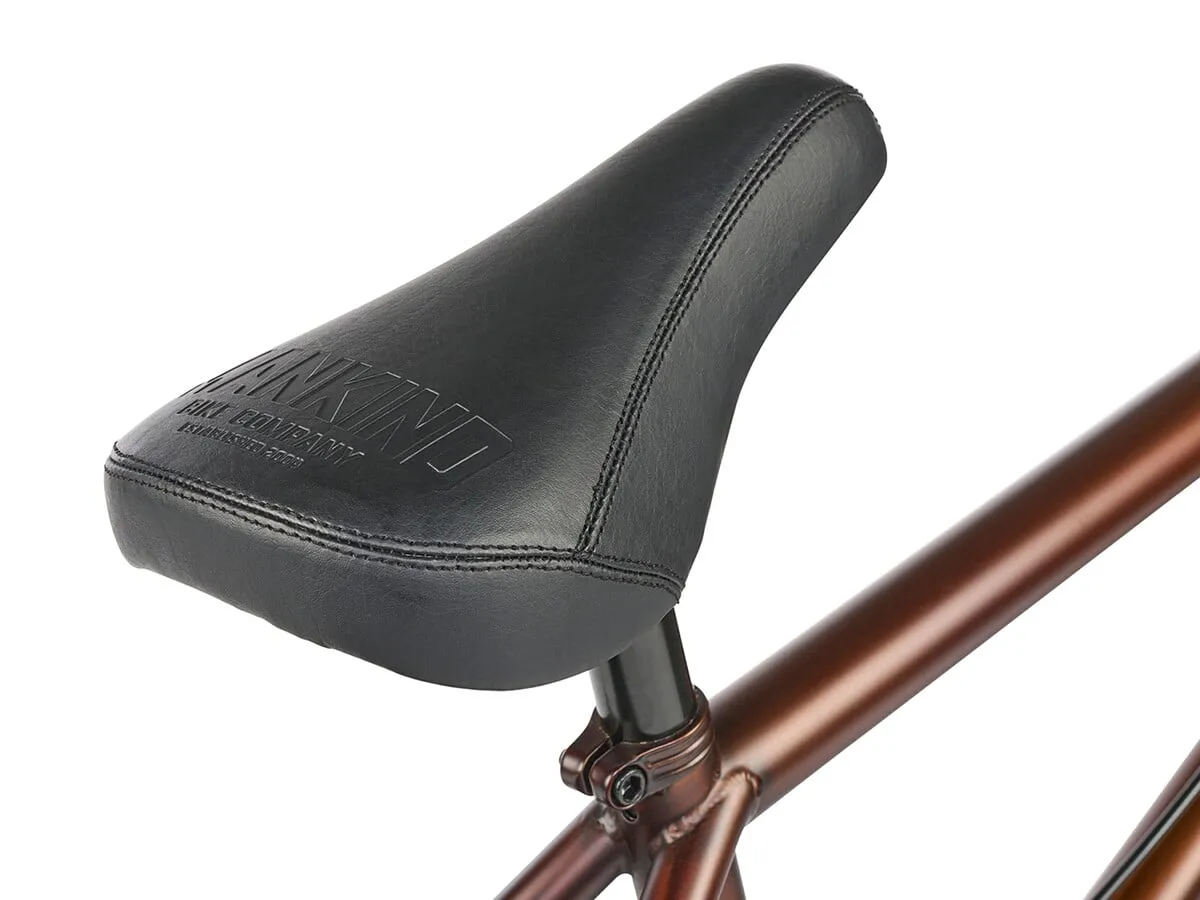

- Seat: Mankind "Sunchaser" Seat/Post Combo debossed, mid padded
- Seat Post: Seat/Post Combo, aluminum, 25.4mm
- Seat Clamp: integrated
- Pedals: Mankind "Control", plastic
- Chain: PYC "410"
- Sprocket: Mankind "Sunchaser", aluminum, 28T
- Crank: CrMo, 3-pieces, 8 spline 19mm spindel, 170mm
- Bottom Bracket: Mid BB, 19mm, sealed bearing (SB)
- Hub (front): Mankind "Control", female axle with 10mm (3/8") CrMo bolts, sealed bearing (SB), 36H
- Hub (rear): Mankind "Control", Cassette hub, 14mm CrMo male axle, sealed bearing (SB), 36H
Driver: 9T, sealed bearing (SB) - Rim (front): 20", 6061 aluminum, double wall, welded, 36H
- Rim (rear): 20", 6061 aluminum, double wall, welded, 36H
- Tire (front): Shadow "Strada Nuova LP" BMX tire
Width: 20" x 2.3" (60 PSI) - Tire (rear): Shadow "Strada Nuova LP" BMX tire
Width: 20" x 2.3" (60 PSI) - Pegs: -
