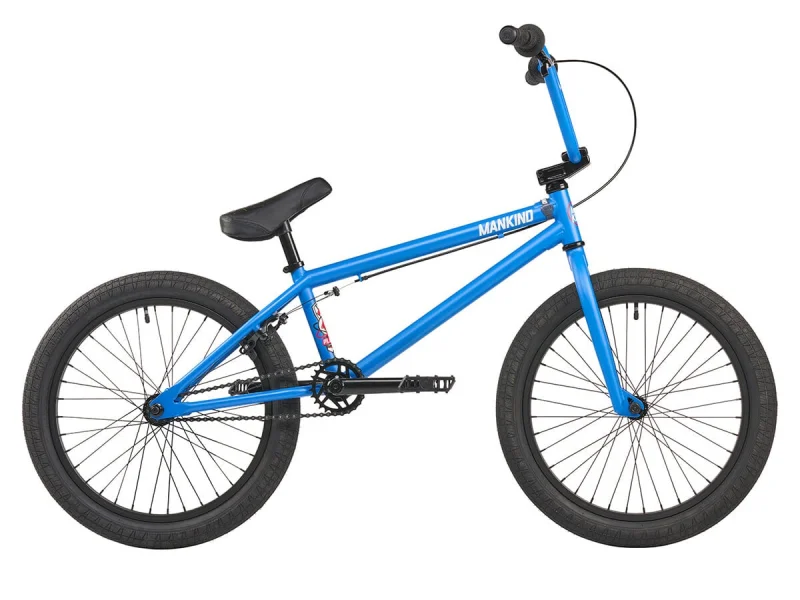

Mankind Bike Co. "Planet 20" BMX Bike - Semi Matte Blue
- Weight : 10.6kg / 23.37lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 23701
The Mankind Bike Co. "Planet 20" BMX Bike - Semi Matte Blue is an entry level BMX complete bike, perfect to get the first tricks and jumps at the skatepark done and aimed to BMX rider from about 150cm. The Mankind Bike Co. "Planet 20" BMX Bike - Semi Matte Blue comes with a semi sealed Mankind "Control" Cassette Hub 9t with a 14mm axle, CrMo 3-Piece Cranks, Mankind "Control" alloy topload stem with 50mm reach, Mankind "Control Steel" Sprocket 25t, Mankind top and down tube gussets for more frame strength and a small padded Mankind "Planet Mid" Seat/Post Combo with printed Planet graphics.
Facts: Mankind Bike Co. "Planet 20" BMX Bike - Semi Matte Blue
- Wheel Size: 20"
- BMX Frame: 1020 HiTen, Gusset at top- and downtube, welded U-brake sockets, US BB
Top Tube (TT): 20.0"
Chain Stay (CS): 13.25"
Head Tube (HA): 75°
Seattube (SA): 71°
BB-High (BB): 11.5"
Standover (SO: 8.3" - BMX Fork: 1020 HiTen, 1-1/8", threadless, tapered legs, 28mm offset
- BMX Bar: 1020 HiTen, 2-piece
Height: 8.25"
Width: 28.3"
Backsweep: 12°
Upsweep: 2°
Clamping Diameter: 22.2mm - Grips: Mankind "Asadi" grips, rubber, plastic barends
- Stem: Mankind "Control", topload, aluminum, 50mm reach
- Headset: 1-1/8" A-Head set, threadless, loose ball (LB)
- Gyro: -
- Gyro compatible: Yes
- Brake Lever: aluminum, 2-finger
- Brake: U-brake, aluminum, rear
- Seat: Mankind Planet Mid Seat/Post Combo mid padded
- Seat Post: Seat/Post Combo, aluminum
- Seat Clamp: Mankind "Control", aluminum
- Pedals: Plattform, plastic
- Chain: PYC "410"
- Sprocket: Mankind "Control Steel", Steel, 25T
- Crank: CrMo, 3-pieces, 8 spline 19mm spindle, 170mm
- Bottom Bracket: US BB, loose ball (LB)
- Hub (front): Aluminum shell, 10mm (3/8") male CrMo axle, loose ball (LB), 36H
- Hub (rear): Mankind "Control" Cassette hub, 14mm CrMo male axle, semi sealed bearing, 36H
Driver: 9T, sealed bearing (SB) - Rim (front): 20", aluminum, single wall, 36H
- Rim (rear): 20", aluminum, single wall, 36H
- Tire (front): Park/Street BMX tire
Width: 20" x 2.3" (60 PSI) - Tire (rear): Park/Street BMX tire
Width: 20" x 2.3" (60 PSI) - Pegs: -
