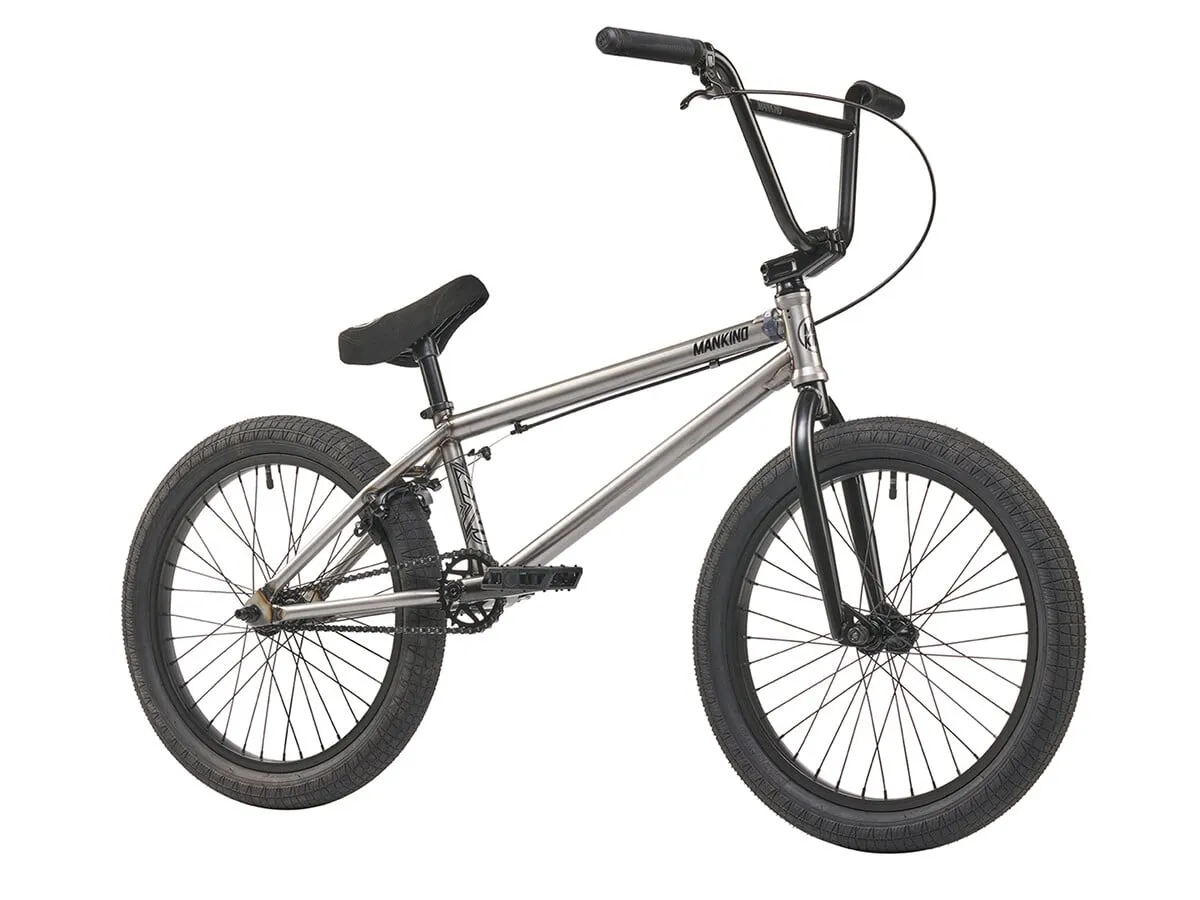

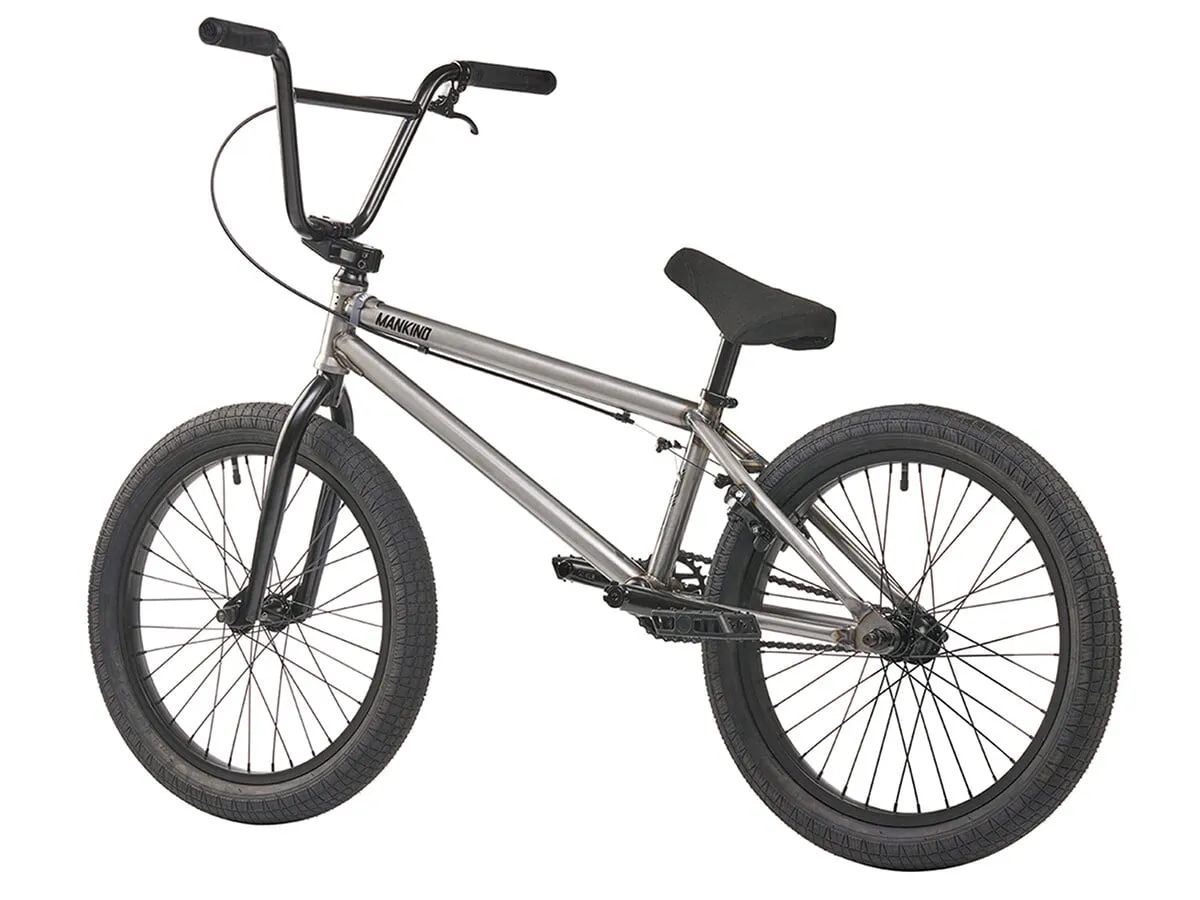

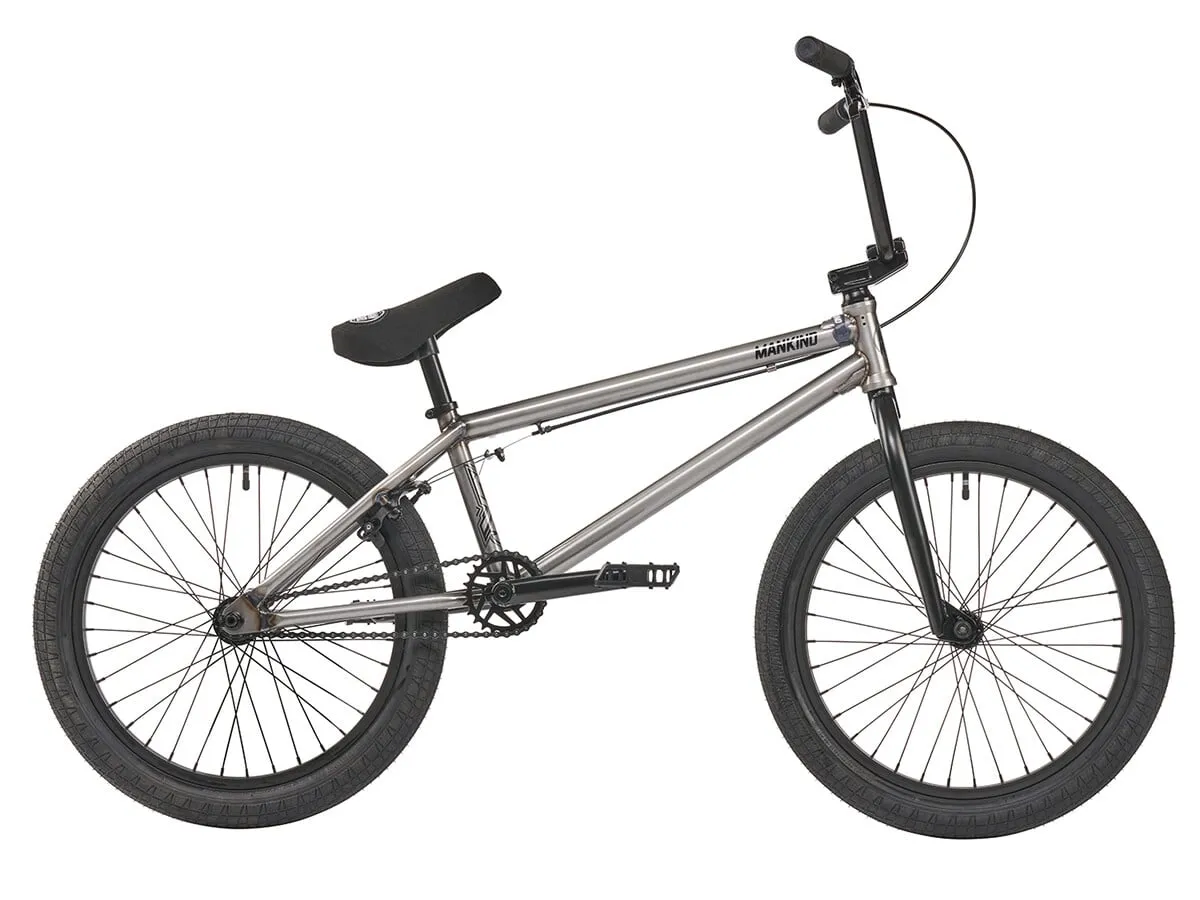

Mankind Bike Co. "NXS XL 20" BMX Bike - Gloss Raw
- Weight : 10.8kg / 23.81lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 23703
The Mankind Bike Co. "NXS XL 20" BMX Bike - Gloss Raw is a entry level BMX complete bike, perfect to get the first tricks and jumps at the skatepark done and as XL Version with the 21" toptube (TT) aimed to BMX rider from approx. 170cm. The Mankind Bike Co. "NXS XL 20" BMX Bike - Gloss Raw combines great looks with amazing specs! It comes with a sealed integrated headset, sealed Mid BB and a fully sealed cassette hub which keep the maintaince low. Connect with the NXS XL 20" to begin your journey into the world of BMX! Mankind Control alloy stem with 50mm reach, Chromoly 3-Piece cranks and Mankind Control steel 25t sprocket.
Facts: Mankind Bike Co. "NXS XL 20" BMX Bike - Gloss Raw
- Wheel Size: 20"
- BMX Frame: 1020 HiTen, Gusset at top- and downtube, welded U-brake sockets, Integrated headset, Mid BB
Top Tube (TT): 21.0"
Chain Stay (CS): 13.25"
Head Tube (HA): 75°
Seattube (SA): 71°
BB-High (BB): 11.5"
Standover (SO: 8.75" - BMX Fork: 1020 HiTen, 1-1/8", 1-piece steerer, tapered legs, 28mm offset
- BMX Bar: 1020 HiTen, 2-piece
Height: 8.75"
Width: 28.5"
Backsweep: 12°
Upsweep: 2°
Clamping Diameter: 22.2mm - Grips: Mankind "Asadi" grips, rubber, plastic barends

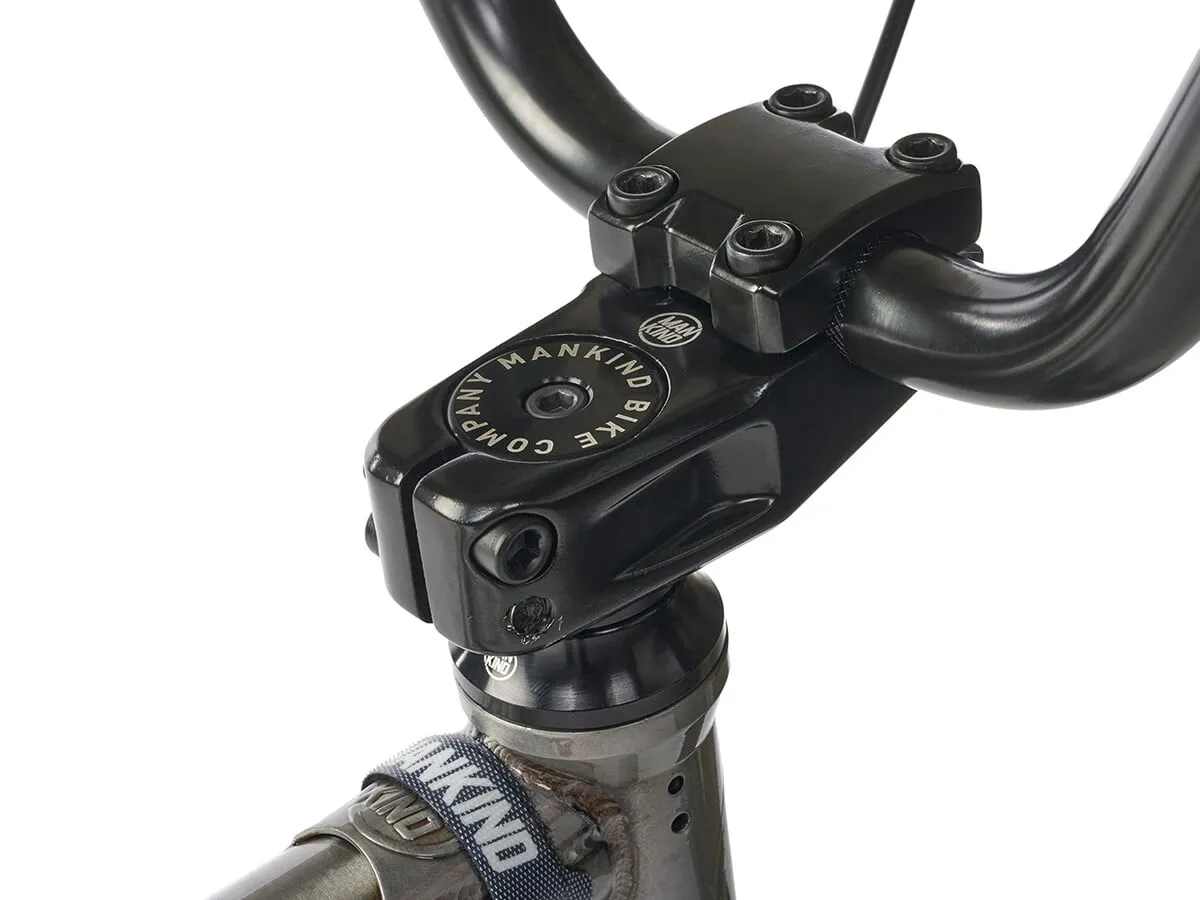

- Stem: Mankind "Control", topload, aluminum, 50mm reach
- Headset: Mankind "Control", 1-1/8" integrated, sealed bearing (SB)
- Gyro: -
- Gyro compatible: Yes
- Brake Lever: aluminum, 2-finger

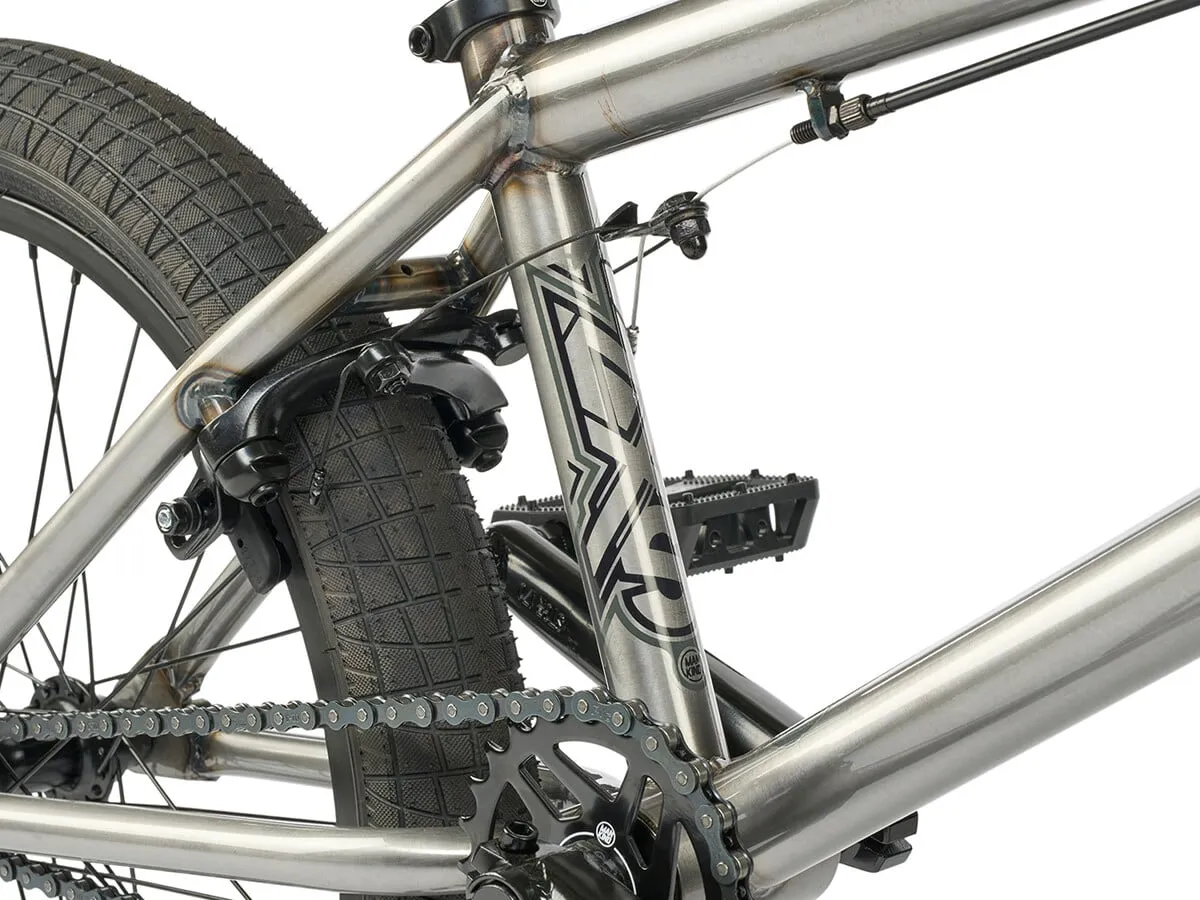

- Brake: U-brake, aluminum, rear

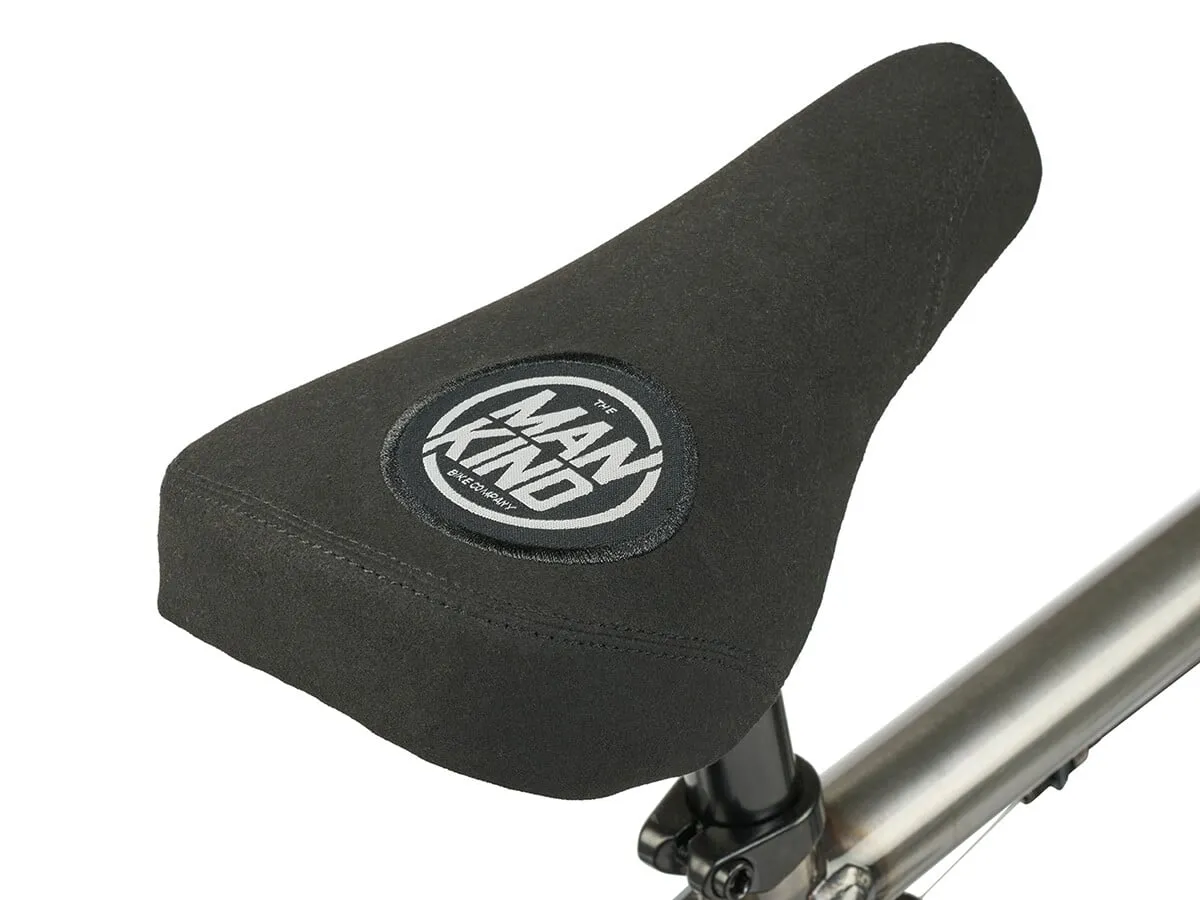

- Seat: Mankind "NXS Mid" Seat/Post Combo, mid padded
- Seat Post: Seat/Post Combo, aluminum
- Seat Clamp: Mankind "Control", aluminum
- Pedals: Plattform, plastic
- Chain: PYC "410"

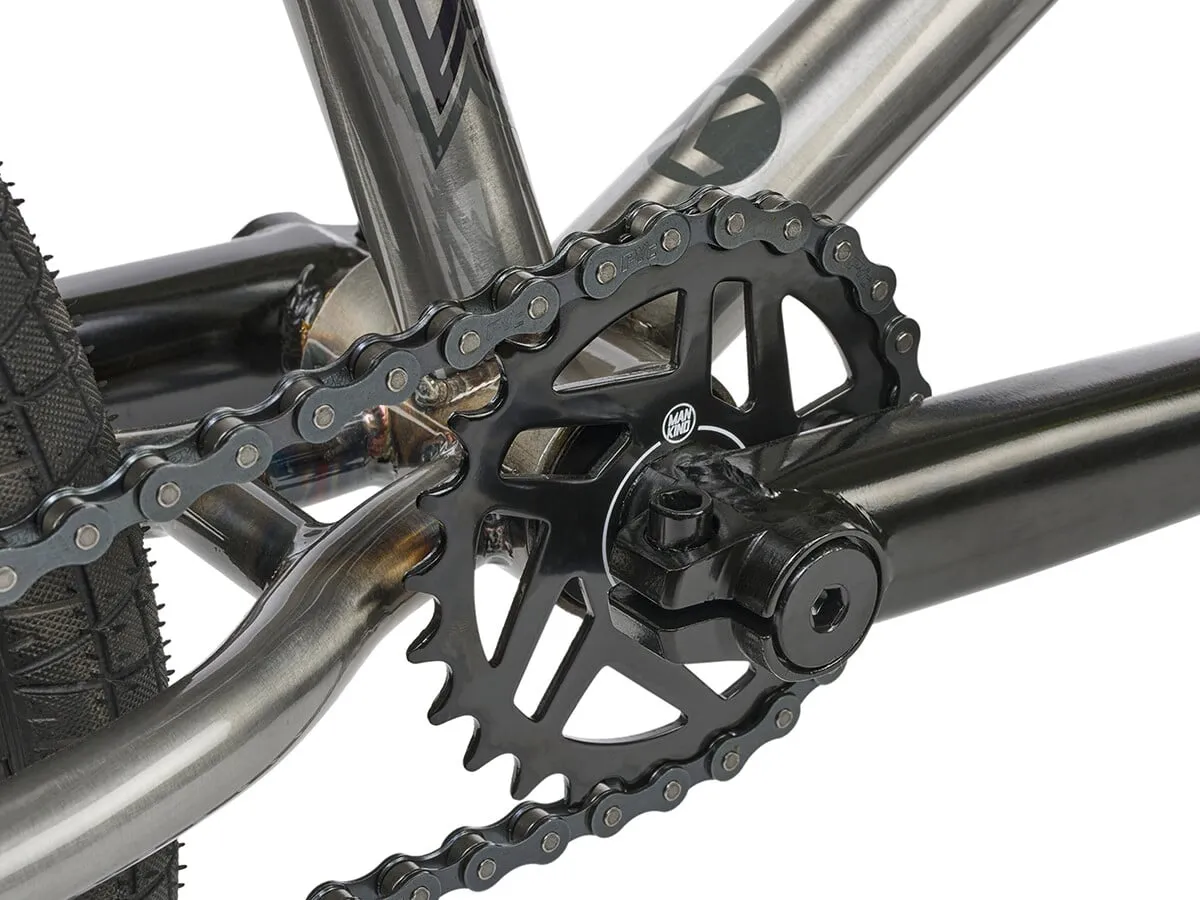

- Sprocket: Mankind "Control Steel", Steel, 25T
- Crank: CrMo, 3-pieces, 8 spline 19mm spindel, 170mm
- Bottom Bracket: Mid BB, 19mm, sealed bearing (SB)
- Hub (front): Aluminum shell, 10mm (3/8") male CrMo axle, loose ball (LB), 36H
- Hub (rear): Mankind "Control" Cassette hub, 14mm CrMo male axle, sealed bearing (SB), 36H
Driver: 9T, sealed bearing (SB) - Rim (front): 20", 6061 aluminum, single wall, 36H
- Rim (rear): 20", 6061 aluminum, single wall, 36H
- Tire (front): Park/Street BMX tire
Width: 20" x 2.3" (60 PSI) - Tire (rear): Park/Street BMX tire
Width: 20" x 2.3" (60 PSI) - Pegs: -
