Mankind Bike Co. "Libertad XL 20" BMX Bike - Gloss Black
- Weight : 11.7kg / 25.79lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 23711
The Mankind Bike Co. "Libertad XL 20" BMX Bike - Gloss Black comes as XL Version with the 21" toptube (TT) aimed to BMX rider from approx. 170cm. The Mankind Bike Co. "Libertad XL 20" BMX Bike - Gloss Black gives you all you need, 100% CrMo frame, fork and bar, fully sealed front hub, fully sealed rear Cassette Hub, sealed integrated Headset and sealed mid bottom bracket. The Mankind Bike Co. "Libertad XL 20" BMX Bike - Gloss Black also features The Shadow Conspiracy Strada Nuova LP 2.3" tires, double wall and welded rims and Mankind Control 25t Alloy sprocket. Viva la Libertad!
Facts: Mankind Bike Co. "Libertad XL 20" BMX Bike - Gloss Black
- Wheel Size: 20"
- BMX Frame: 100% 4130 CrMo, Gusset at top- and downtube, removable U-brake sockets, integrated headset, integrated seatclamp, Mid BB
Top Tube (TT): 21.0"
Chain Stay (CS): 13.25"
Head Tube (HA): 75°
Seattube (SA): 71°
BB-High (BB): 11.75"
Standover (SO: 9" - BMX Fork: 100% 4130 CrMo, 1-1/8", 1-piece steerer, tapered legs, 28mm offset
- BMX Bar: 100% 4130 CrMo, 2-piece
Height: 8.9"
Width: 29"
Backsweep: 12°
Upsweep: 2°
Clamping Diameter: 22.2mm - Grips: Mankind "Control Flangeless" grips, rubber, plastic barends

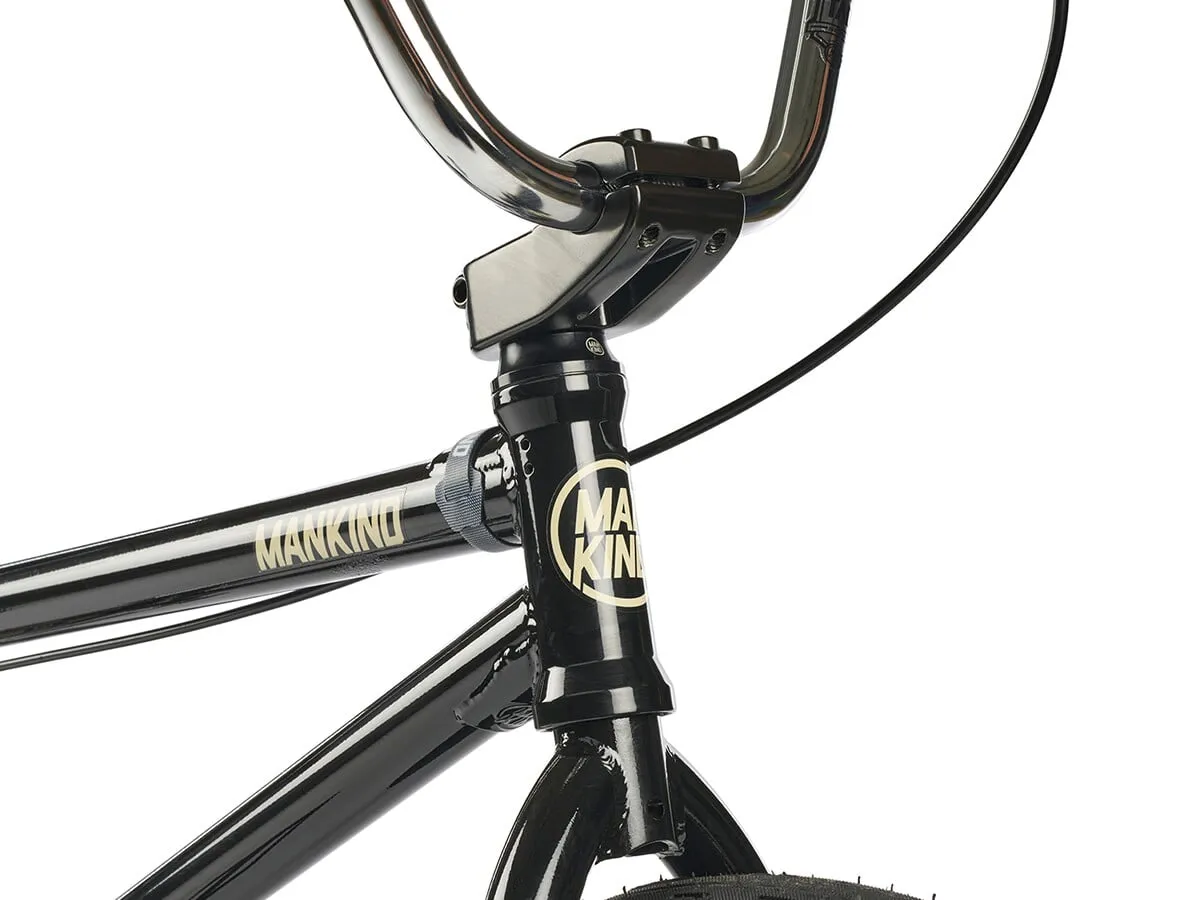

- Stem: Mankind "Advance Alloy", topload, aluminum, 50mm reach
- Headset: Mankind "Control", 1-1/8" integrated, sealed bearing (SB)
- Gyro: -
- Gyro compatible: Yes
- Brake Lever: aluminum, 2-finger, hinged
- Brake: U-brake, aluminum, rear

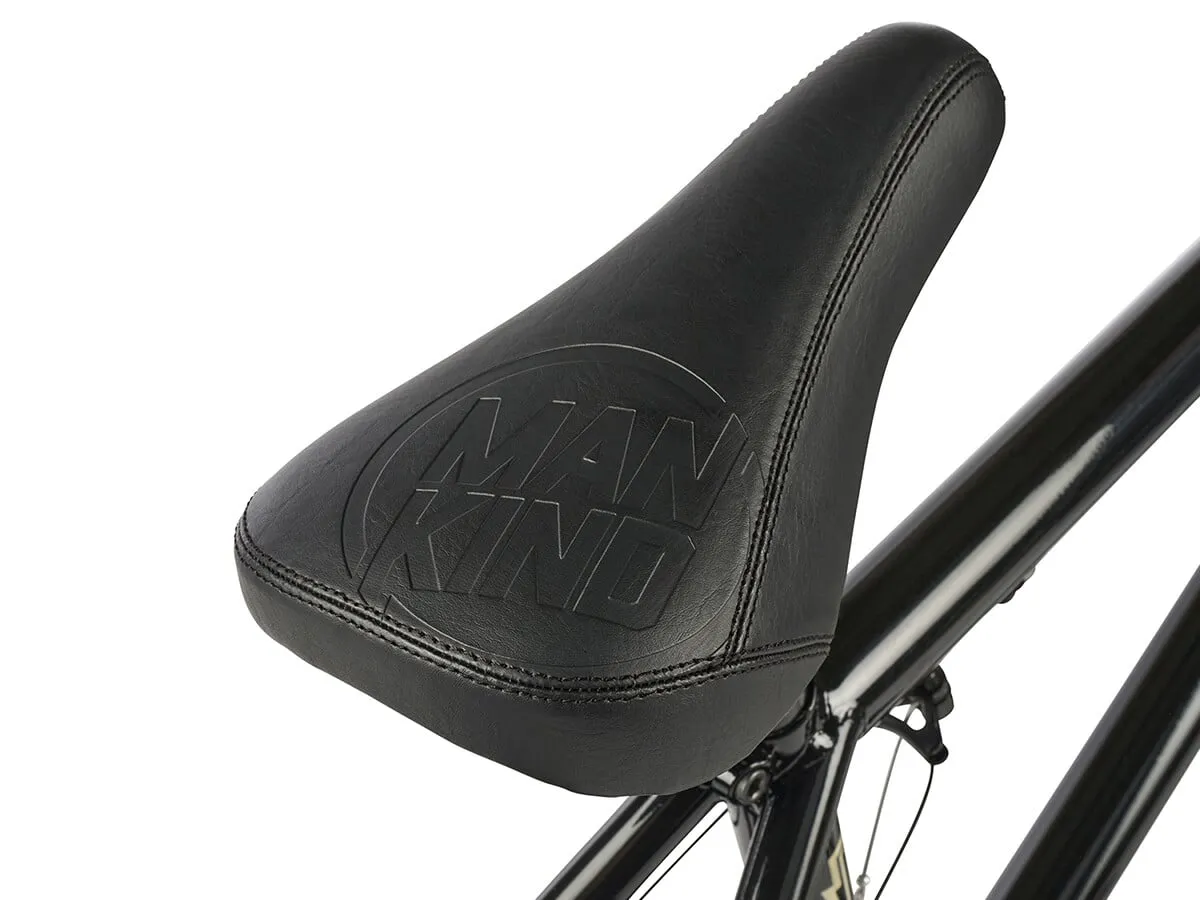

- Seat: Mankind "Control Mid" Seat/Post Combo debossed, mid padded
- Seat Post: Seat/Post Combo, aluminum, 25.4mm
- Seat Clamp: integrated
- Pedals: Mankind "Control", plastic
- Chain: PYC "410"

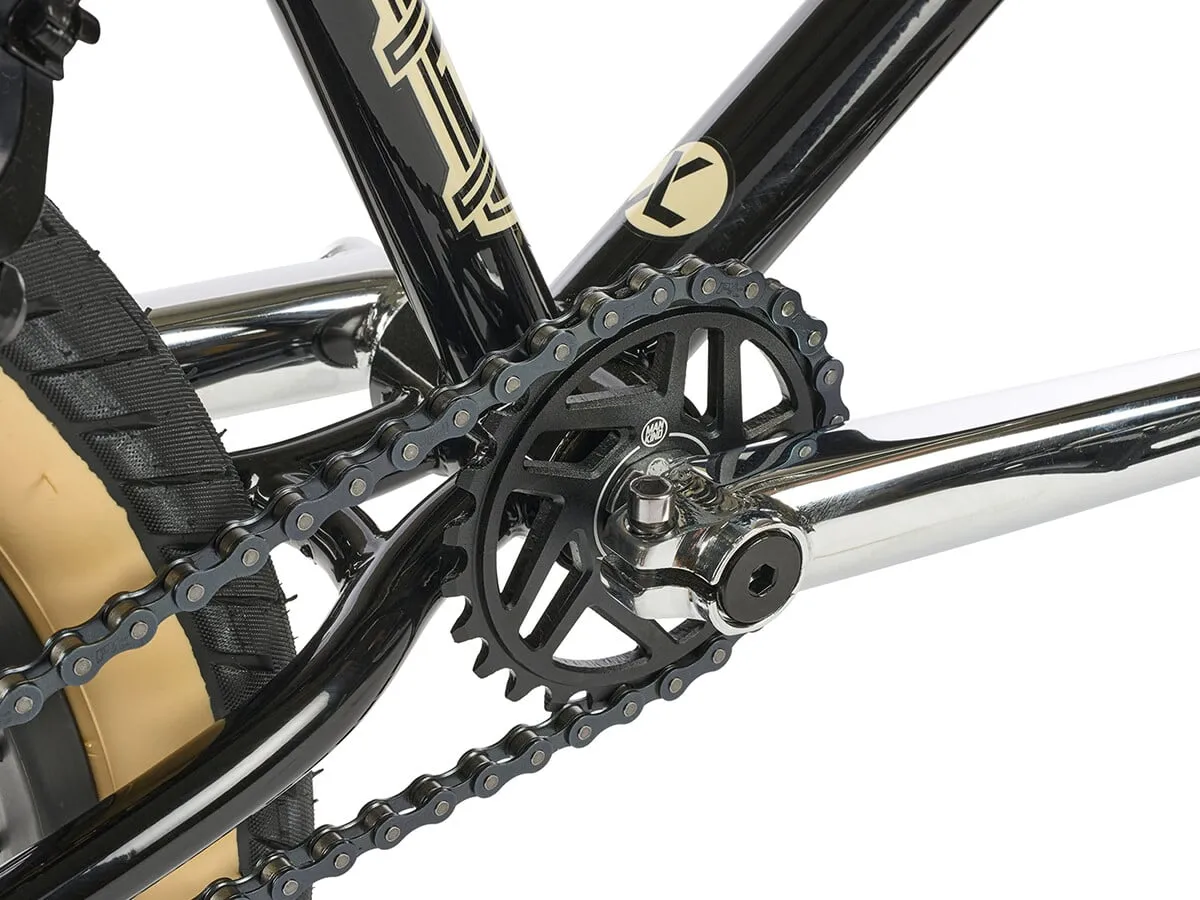

- Sprocket: Mankind "Control", aluminum, 25T
- Crank: CrMo, 3-pieces, 8 spline 19mm spindel, 170mm
- Bottom Bracket: Mid BB, 19mm, sealed bearing (SB)
- Hub (front): Mankind "Control", female axle with 10mm (3/8") CrMo bolts, sealed bearing (SB), 36H
- Hub (rear): Mankind "Control", Cassette hub, 14mm CrMo male axle, sealed bearing (SB), 36H
Driver: 9T, sealed bearing (SB) - Rim (front): 20", 6061 aluminum, double wall, welded, 36H
- Rim (rear): 20", 6061 aluminum, double wall, welded, 36H
- Tire (front): Shadow "Strada Nuova LP" BMX tire
Width: 20" x 2.3" (60 PSI) - Tire (rear): Shadow "Strada Nuova LP" BMX tire
Width: 20" x 2.3" (60 PSI) - Pegs: -
