Kink Bikes "Royale" BMX Frame

285.67 EUR

Color | Top Tube Length
  • Please Select
Qty.
pick up in our shop?
Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.
Stuttgart Please select a product option!
Berlin Please select a product option!
  • Weight : 2.38kg / 5.25lbs
  • Packaging Unit: 1 Piece
  • Product ID (PID): 23485

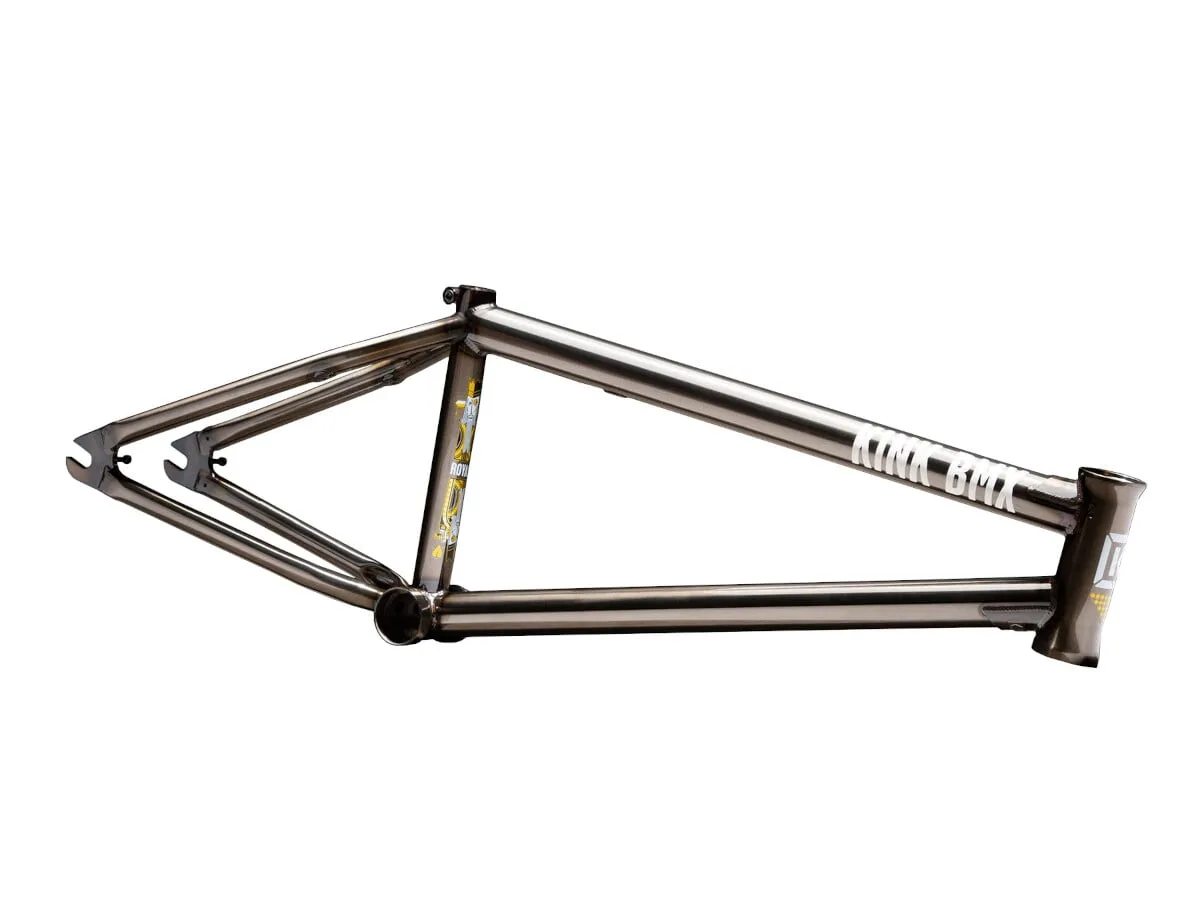

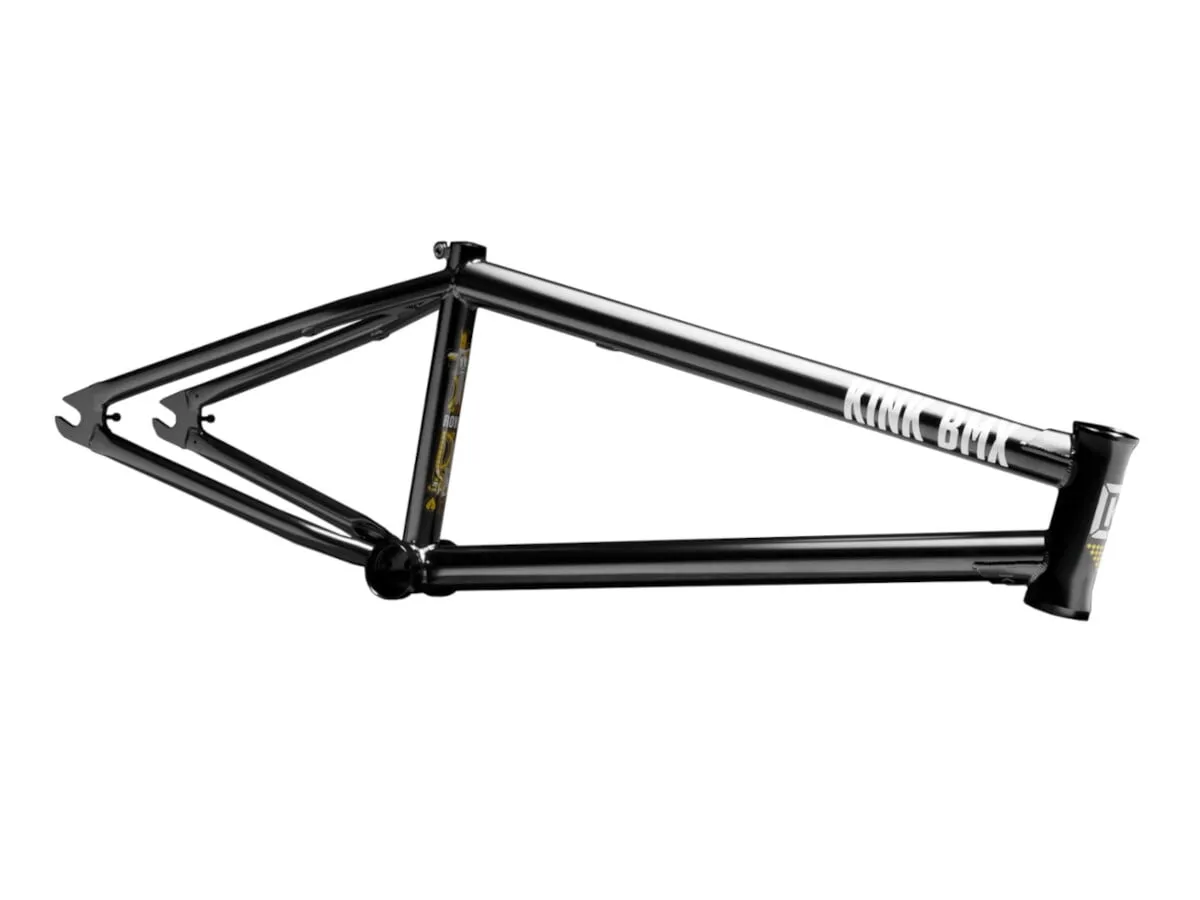

The Kink Bikes "Royale" BMX Frame is a modern designed BMX frame, which was specially developed for street riding. The Kink Bikes "Royale" BMX Frame is made of double-hardened seamless 4130 CrMo steel and with its 76° steep head tube, paired with the 12.5" long chainstay, it is particularly short and therefore very manoeuvrable, perfect for technical tricks.

Facts: Kink Bikes "Royale" BMX Frame

  • Wheel Size: 20"
  • Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset
  • Geometry:
    Top Tube Length (TT): 20.75", 21.0" or 21.25"
    Chainstay Length (CS): 12.5" (31.75cm) - 13.1" (33.27cm)
    Head Tube Angle (HA): 76°
    Seat Tube Angle (SA): 71°
    Bottom Bracket Height: 11.7" (29.72cm)
    Standover Height (SO): 9" (22.86cm)
  • Seat Clamp: integrated
  • Seat Post Diameter: 25.4mm
  • Bottom Bracket: Mid BB
  • Dropouts: Investment cast, 6.5mm thick, 14mm slots
  • Chain Tensioners: integrated
  • Brake Type: U-Brake
  • Brakemounts: with (screwable, M6)
  • Brakemounts included with delivery: No
  • Gyro compatible: Yes
  • Features: Wide rear end for fat 2.55" tires
  • Model Year: 2022
