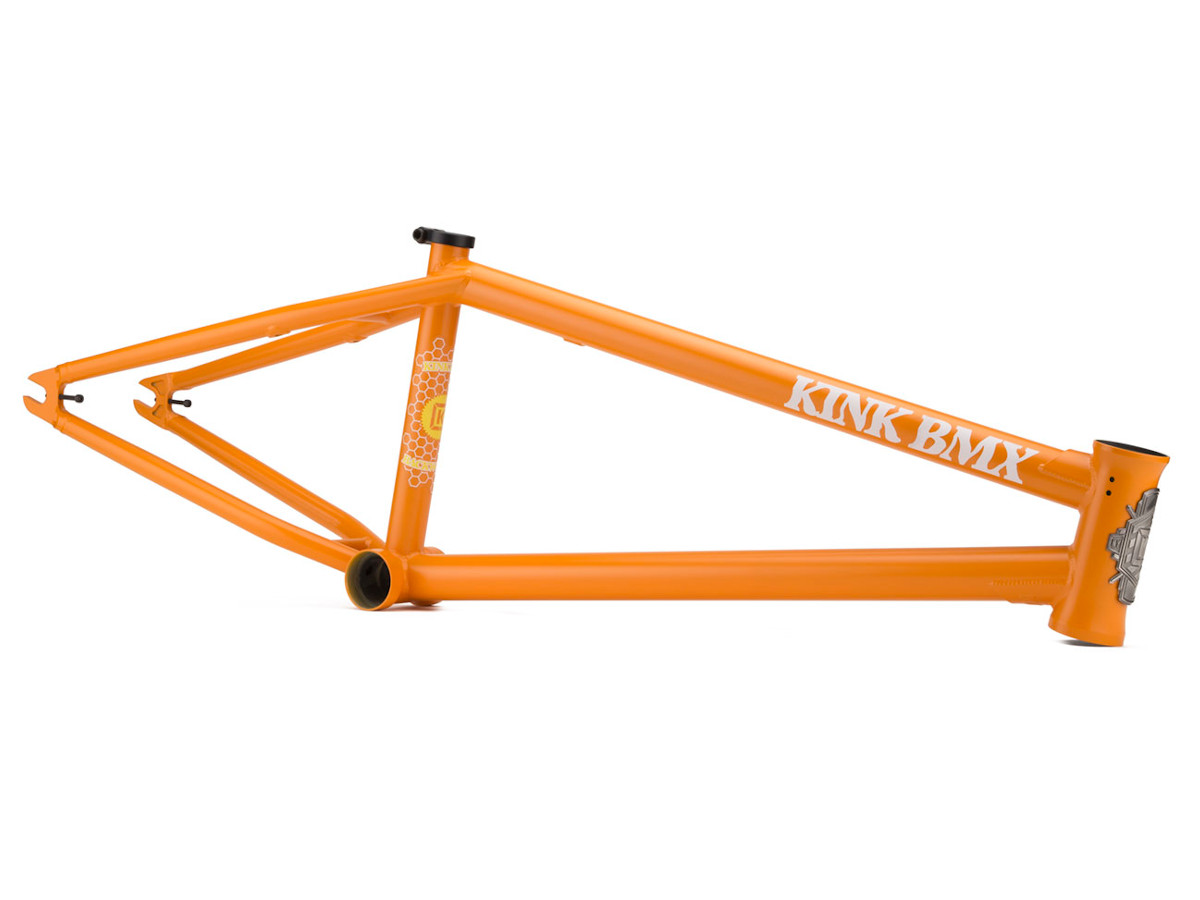

Kink Bikes "Backwoods" BMX Frame
- Weight : 2.21kg / 4.87lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 15967
The Kink Bikes "Backwoods" BMX Frame comes in a classic, timeless design which is built preferably for trails riding. The Kink Bikes "Backwoods" BMX Frame is made from industry leading materials and manufacturing techniques and can deal with any abuse you send its way. Double butted 4130 chromoly tubing and gussets on both the toptube and downtube, reinforce this tough frame.
Facts: Kink Bikes "Backwoods" BMX Frame
- Wheel Size: 20"
- Material: 100% Sanko 4130 CrMo, top tube and down tube gussets, integrated headset
- Geometry:
Top Tube Length (TT): 21.0" or 21.25"
Chainstay Length (CS): 13.5" (34.29cm) - 13.9" (35.31cm)
Head Tube Angle (HA): 74.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.6" (29.46cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Wide rear end for fat 2.4" tires, K-Brick headtube badge
- Model Year: 2020
