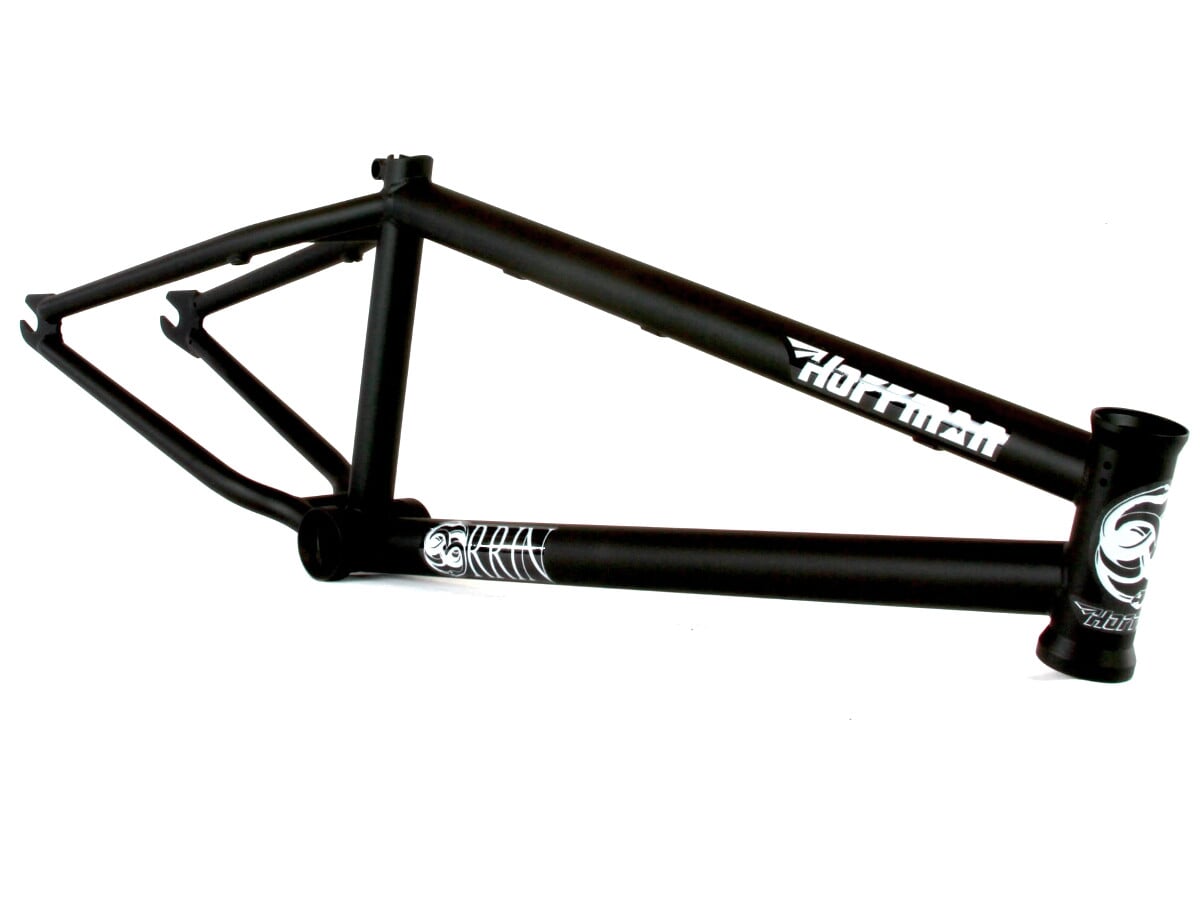

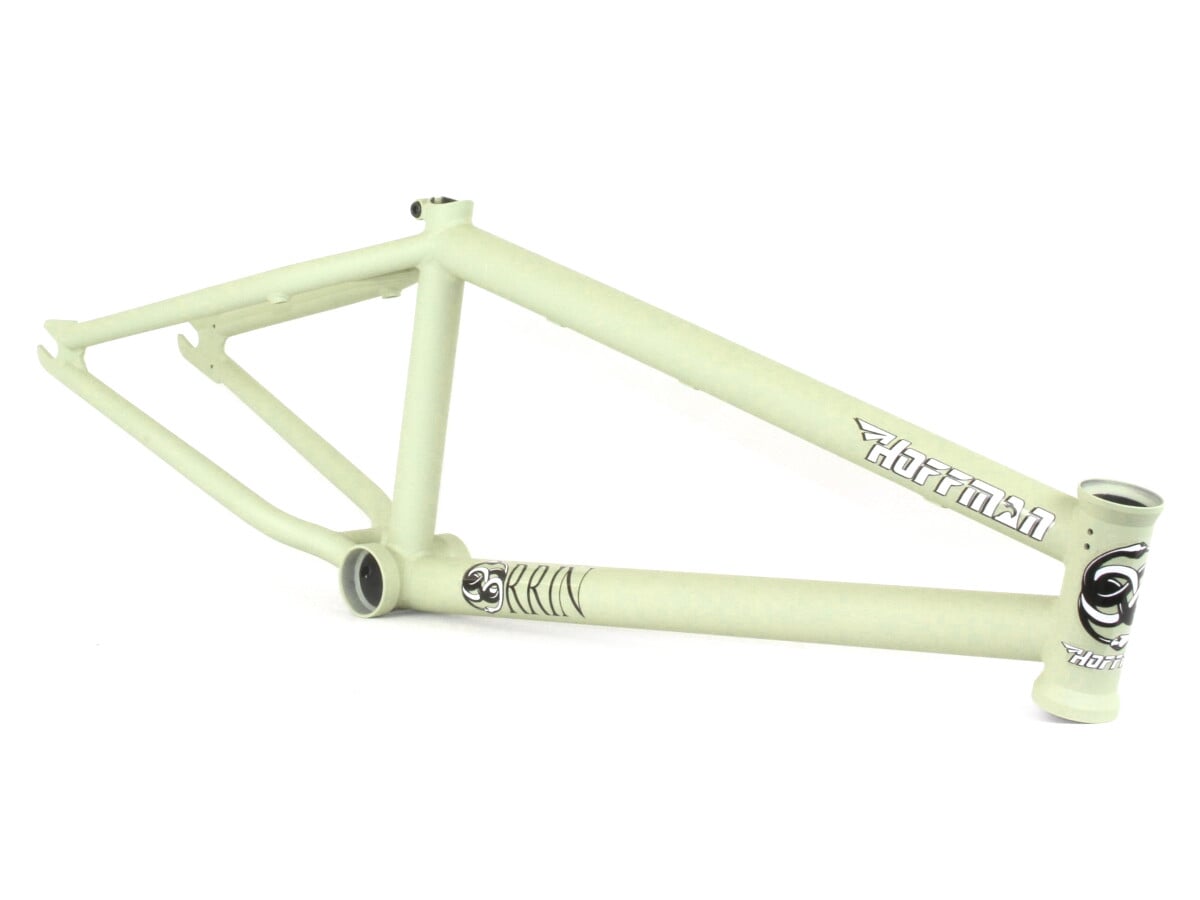

Hoffman Bikes "Orrin" BMX Frame
-
Weight : 2.35kg / 5.18lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:- Manufacturer's weight specifications may be inaccurate or incomplete.
- The weight of two identical parts can also differ.
- We cannot weigh every individual part.
Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 20123
The Hoffman Bikes "Orrin" BMX Frame is the signature frame of Seth Kimbrough and was designed after his preferences. The Hoffman Bikes "Orrin" BMX Frame is made of 100% 4130 chromoly and comes with a short rear end which feels responsive.
Facts: Hoffman Bikes "Orrin" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset
- Geometry:
Top Tube Length (TT): 21.0"
Chainstay Length (CS): 12.8" (32.51cm) - 13.2" (33.53cm)
Head Tube Angle (HA): 75°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.56" (29.36cm)
Standover Height (SO): #98# - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 6.5mm thick, 14mm slots
- Chain Tensioners: without
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: Yes
- Gyro compatible: Yes
- Features: Seth Kimbrough signature, Wide rear end for fat 2.5" tires
- Model Year: 2020
