Haro Bikes "Lineage Spline Drive" BMX Crank
-
Weight : 0.82kg / 1.81lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:- Manufacturer's weight specifications may be inaccurate or incomplete.
- The weight of two identical parts can also differ.
- We cannot weigh every individual part.
Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 7763

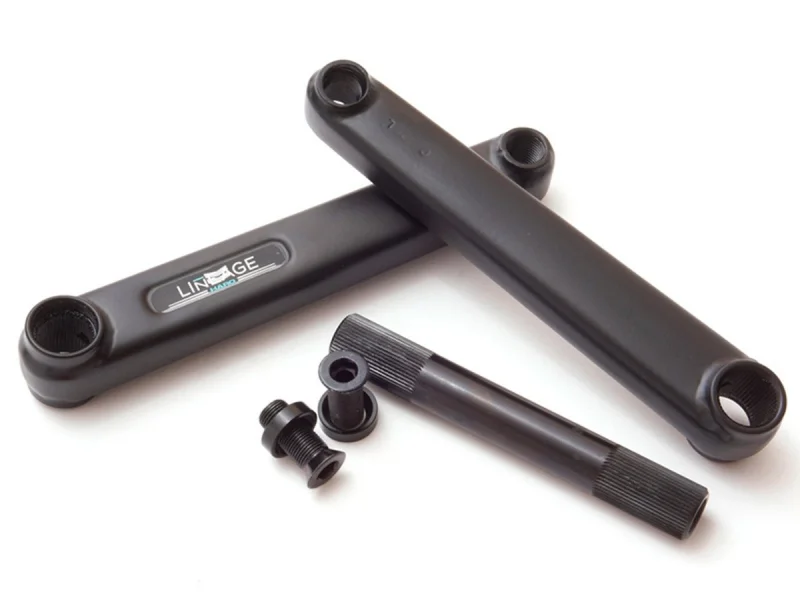

The Haro Bikes "Lineage Spline Drive" BMX Crank is a classic, high quality 3-pc. CrMo crankset with a 19mm hollow axle. The crank arms have no sprocket holes. The Haro Bikes "Lineage Spline Drive" BMX Crank is only compatible with spline drive sprockets, which you also will find in our online shop.
Facts: Haro Bikes "Lineage Spline Drive" BMX Crank
- Material Crank Arms: 4130 CrMo, heat treated
- Material Crank Spindle: 4130 CrMo, heat treated, hollow
- Crank-Type: 3-piece
- Crank Arm Length: 165mm or 175mm
- Spindle Diameter: 19mm
- Spindle-Type: 48-Spline
- possible Sprocket Mount by:
Spline-Drive: right (RHD) and left (LHD) - Pedal Threat: For 9/16" pedals
- Spindle Bolt: 2x bolts (M12x1mm, 19mm Axle) with 8mm allen key
- Sprocket Bolt: No mounting possible (Spline-Drive)
- Extras: Completely surround welded axle and pedal jacks, rectangular flattened arms
- Recommended for: Street, Park or Trails
