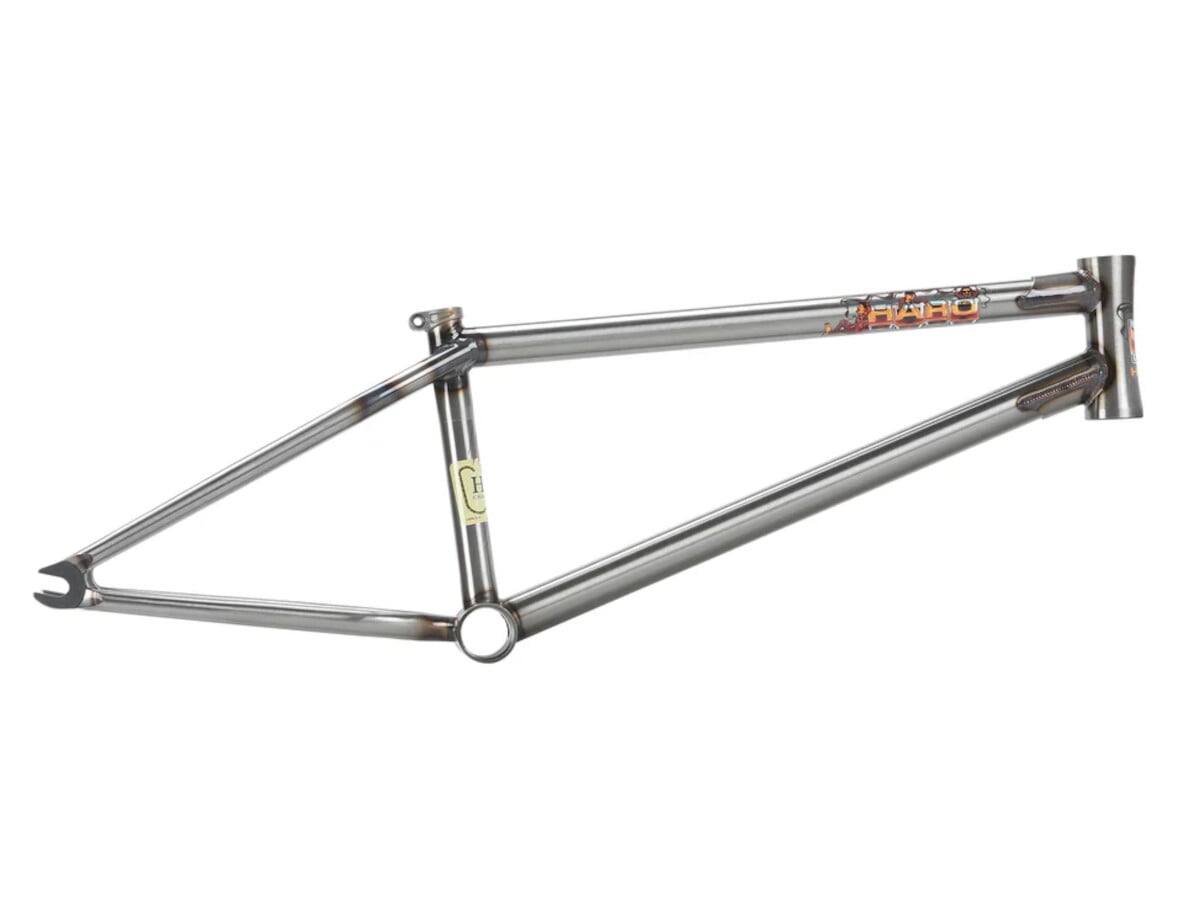

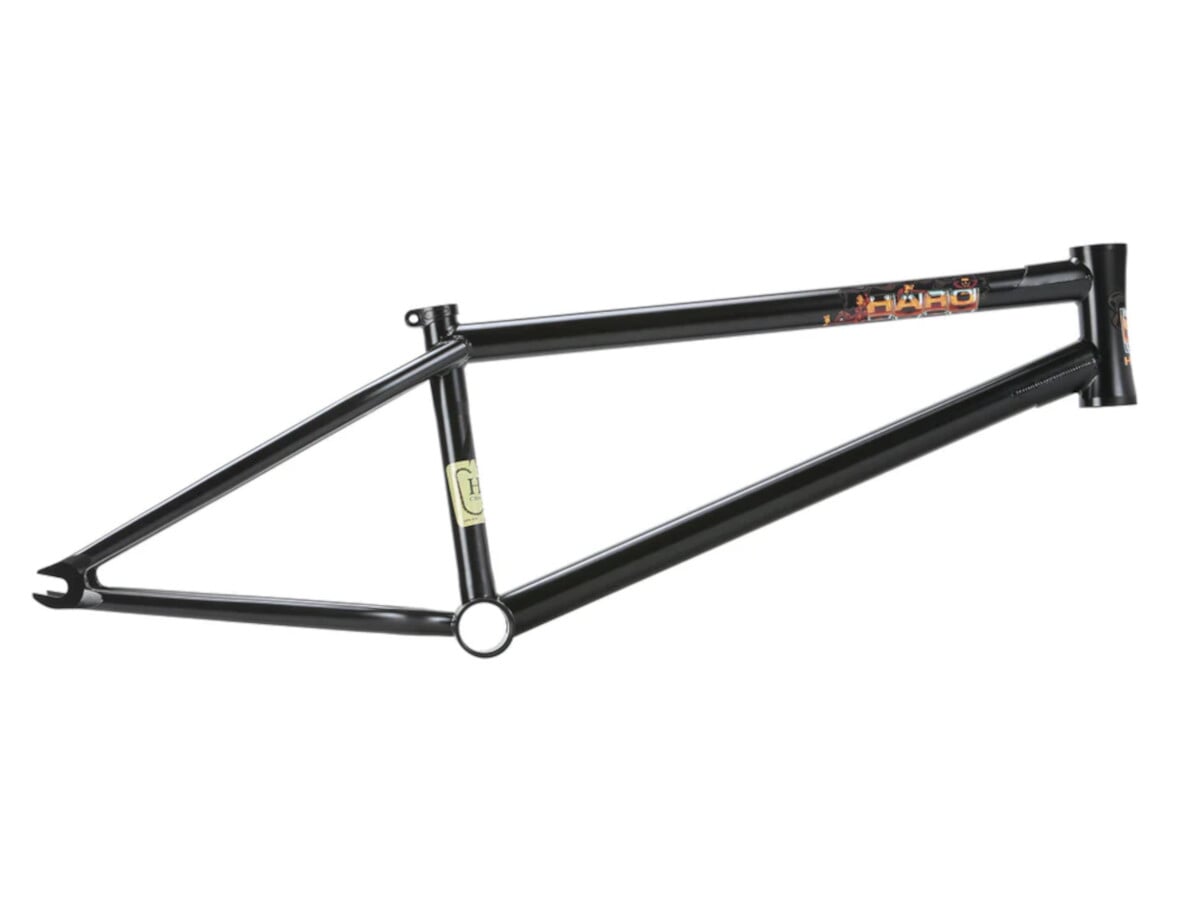

Haro Bikes "CK V3" BMX Frame
- Weight : 2.4kg / 5.29lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 28003
The Haro Bikes "CK V3" BMX Frame is the ultimate choice for riders looking for the highest performance. Developed in collaboration with renowned BMX pro Chad Kerley, this frame combines outstanding geometry, stability and agility.
Facts: Haro Bikes "CK V3" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset
- Geometry:
Top Tube Length (TT): 20.75" or 21.0"
Chainstay Length (CS): 12.7" (32.26cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.5" (29.21cm)
Standover Height (SO): 8.6" (21.84cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: 6mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: without (brakeless)
- Brakemounts: without
- Features: Chad Kerley Signature frame, wide rear end for fat 2.4" tires
