Haro Bikes "CK AM" BMX Bike | Freecoaster
-
Weight : 11.52kg / 25.4lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:- Manufacturer's weight specifications may be inaccurate or incomplete.
- The weight of two identical parts can also differ.
- We cannot weigh every individual part.
Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 28064

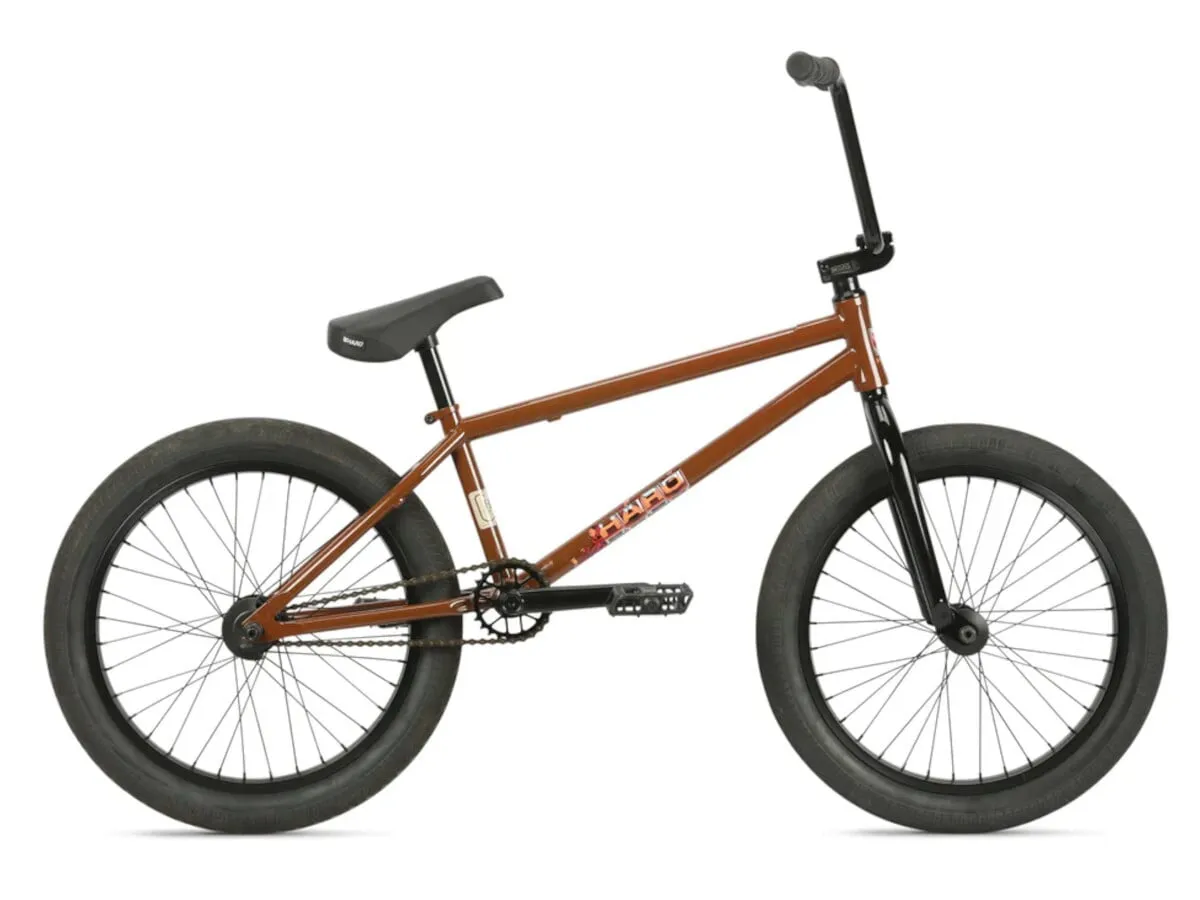

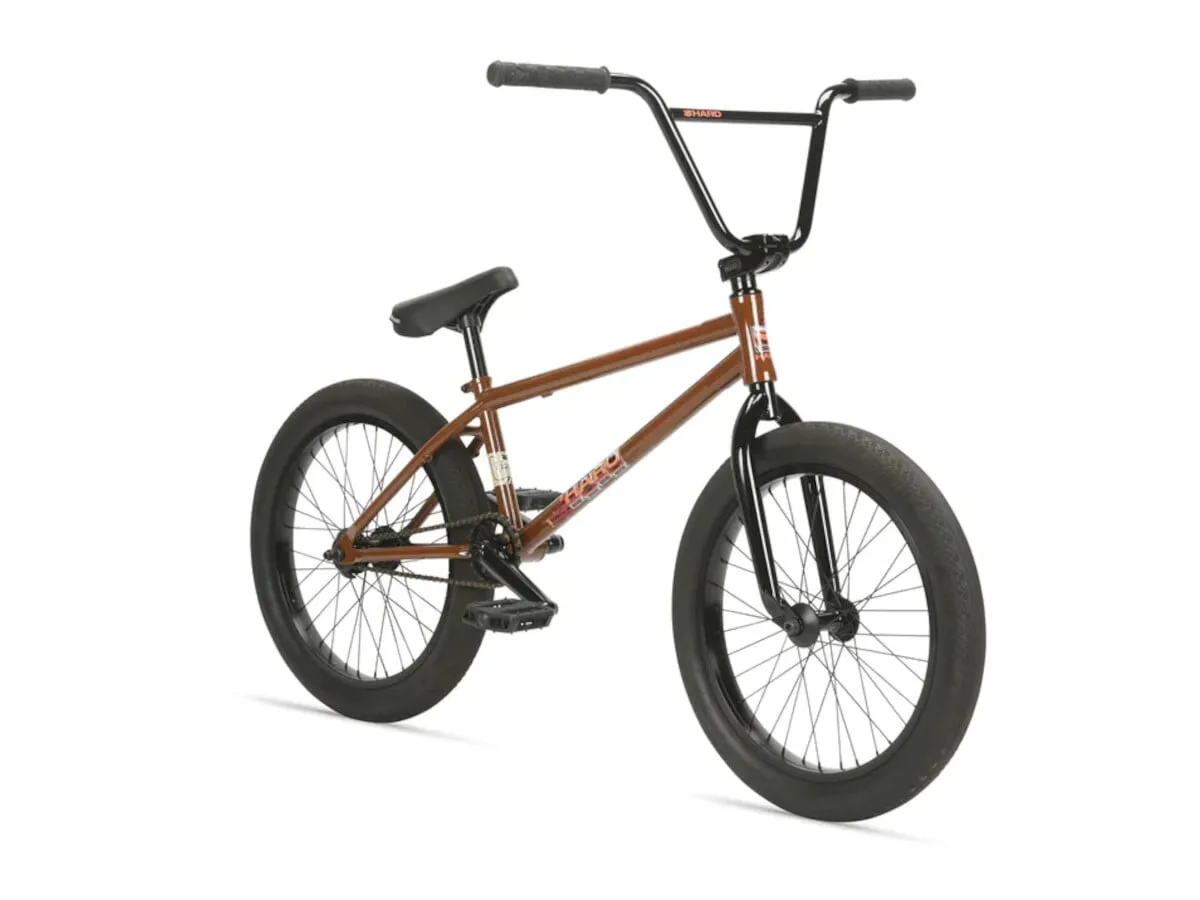

The Haro Bikes "CK AM" BMX Bike | Freecoaster is the signature AM BMX bike of Chad Kerley and provides 100% 4130 CrMo quality at frame, fork and bar. The Haro Bikes "CK AM" BMX Bike | Freecoaster is equipment with a 3-pc. CrMo crank set, a fully sealed front and freecoaster hub, 2.4" wide Haro "La Mesa" tires and a rear U-brake with removable brake mounts. The Haro Bikes "CK AM" BMX Bike | Freecoaster has a frame with integrated headset (sealed bearing), integrated seat clamp and Mid BB (sealed bearing) which is today's standard on modern BMX frames and which makes installation, adjustment and maintance easy.
Facts: Haro Bikes "CK AM" BMX Bike | Freecoaster
- Wheel Size: 20"
- BMX Frame: 100% 4130 CrMo, down- and toptube gusset, integrated head set, integrated seat clamp, removable U-brake sockets, Mid BB
Top Tube (TT): 20.75"
Chain Stay (CS): 13"
Head Tube (HA): 75.5°
Seattube (SA): 71.5°
BB-High (BB): 11.5"
Standover (SO): 8,6" - BMX Fork: Haro, 100% 4130 CrMo, 1-1/8", tappered fork legs

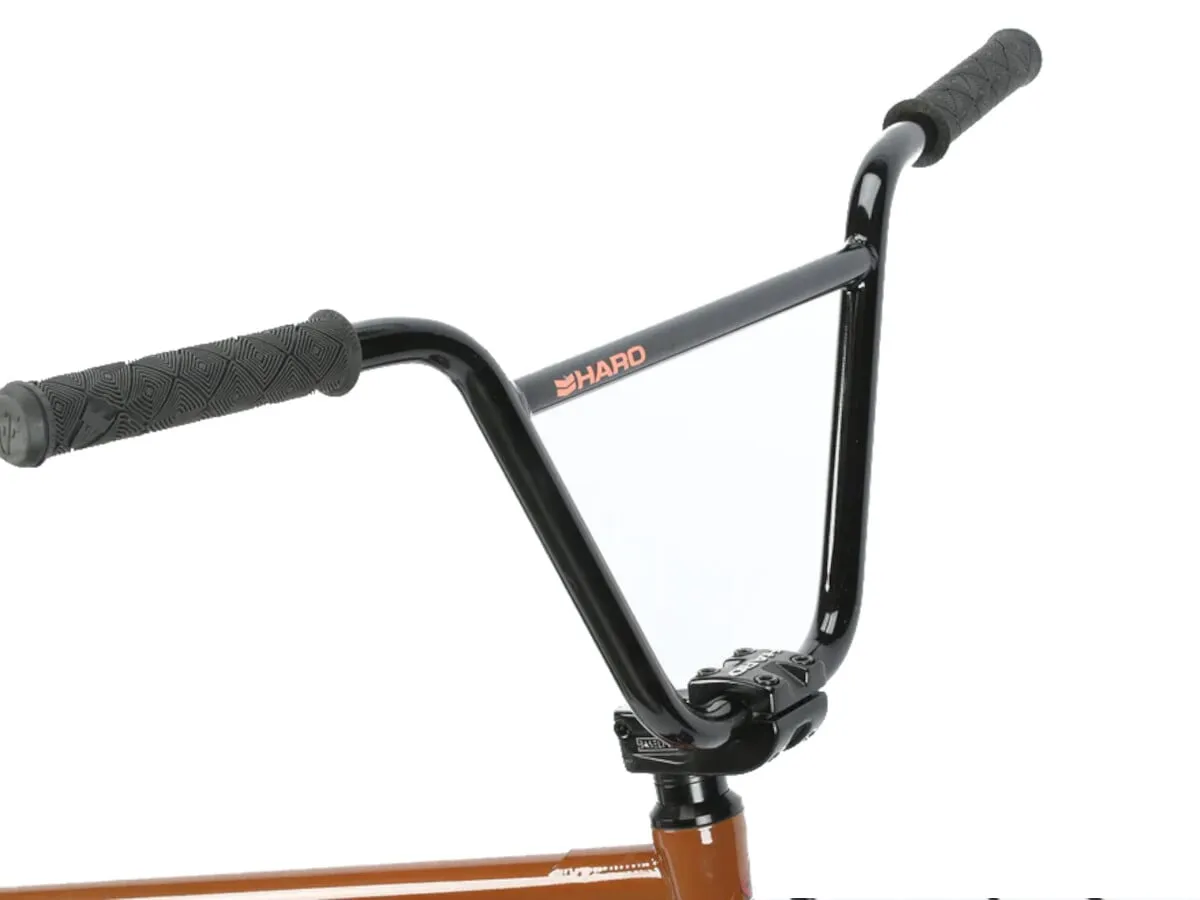

- BMX Bar: Haro, 100% 4130 CrMo, 2-piece.
Height: 9.5"
Width: 29"
Backsweep: 12°
Upsweep: 3° - Grips: Haro "Baseline", rubber, plastic barends

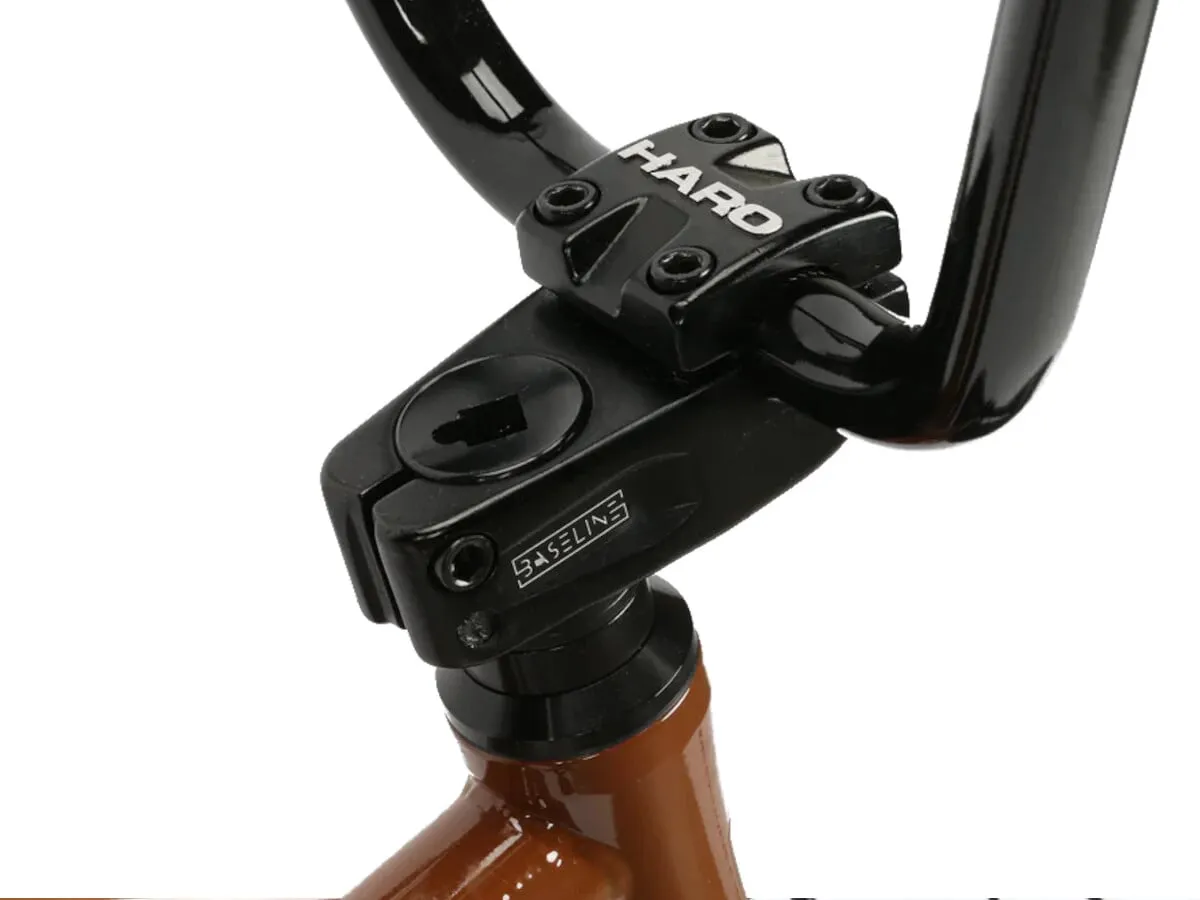

- Stem: Haro Baseline", CNC, Topload, aluminum
- Headset: Integrated, sealed bearing
- Gyro: -
- Brake Lever: Haro "Baseline" aluminum, 2-finger
- Brake (rear): Haro "Radiues 990" U-brake, aluminum, rear

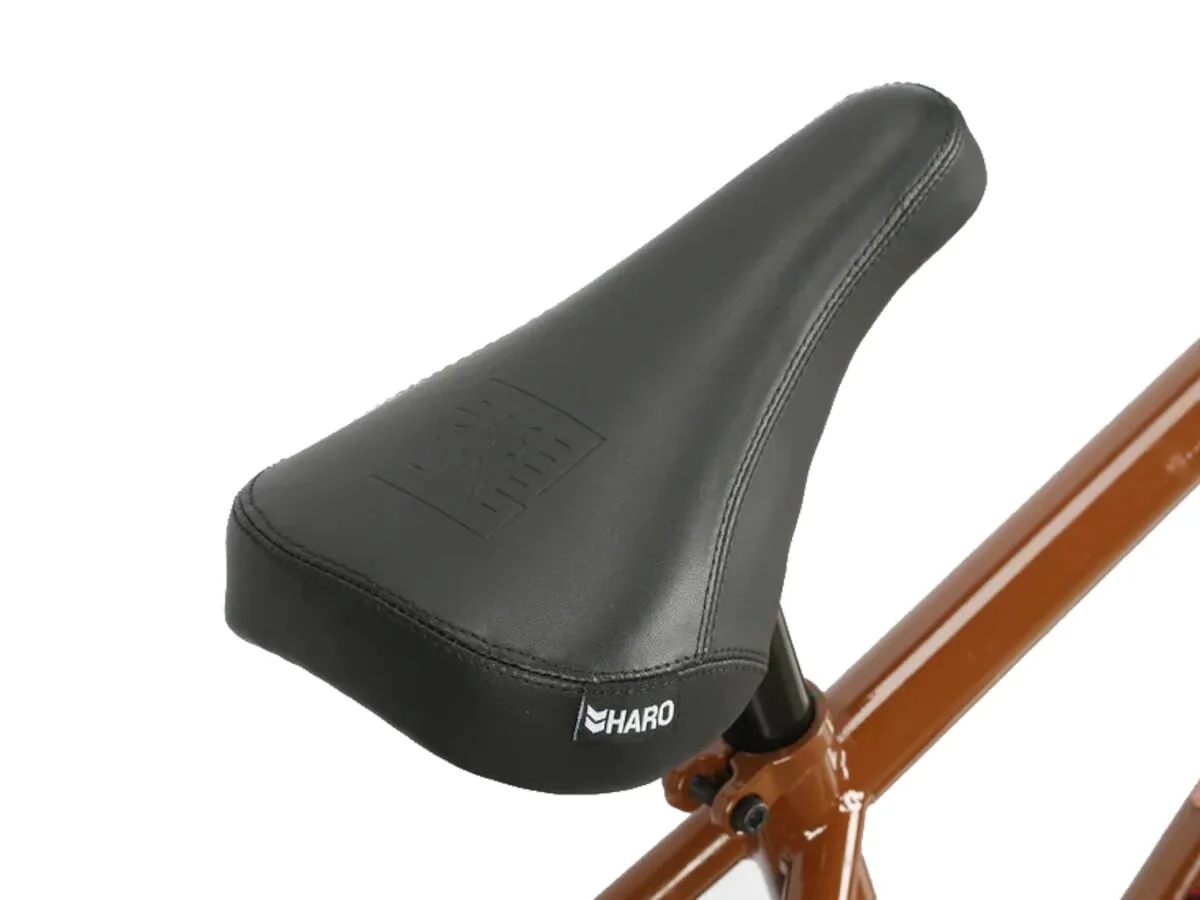

- Seat: Haro "Baseline" seat/post combo
- Seat Clamp: Integrated
- Pedals: Poly platform, chromoly 9/16" Axle
- Chain: Haro "Baseline"
- Sprocket: Haro "Baseline", CNC aluminum, 25T

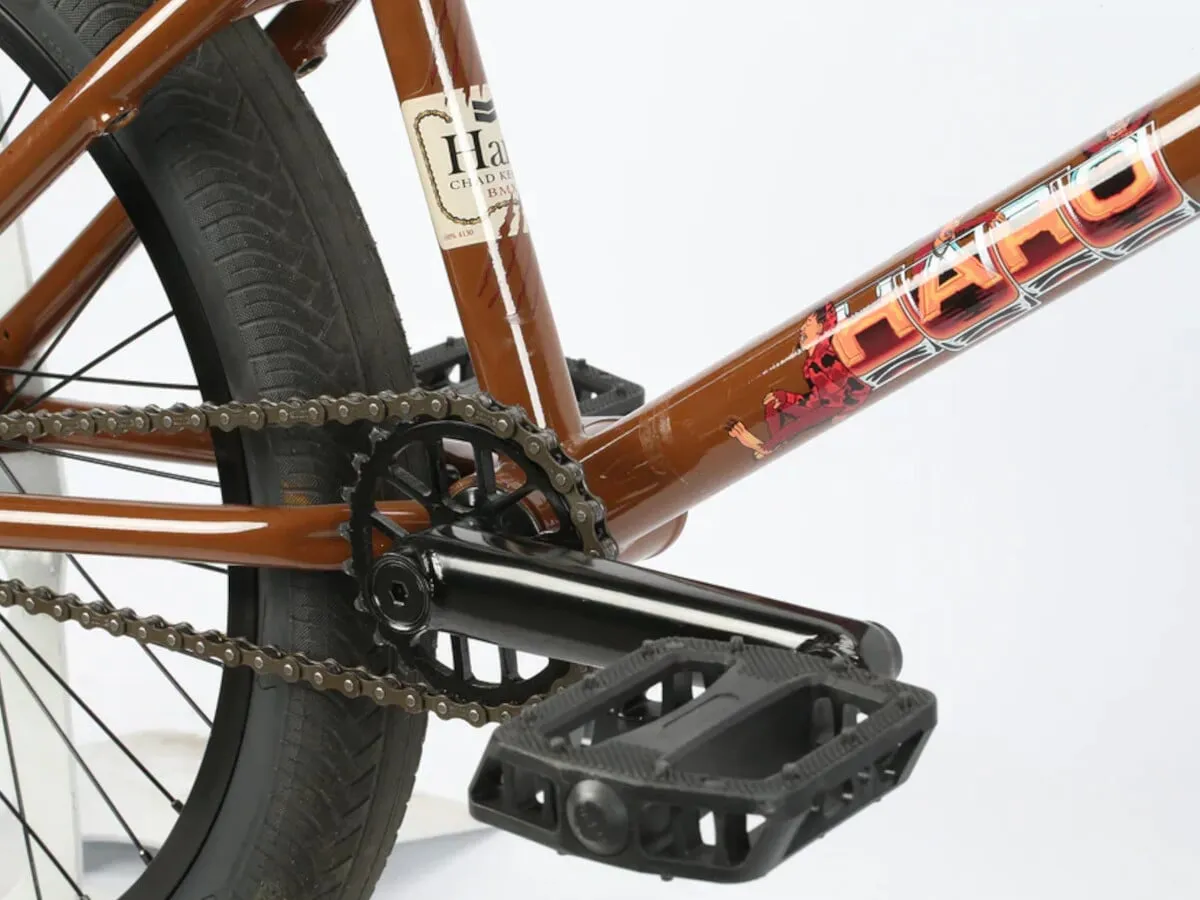

- Crank: Haro "Tubular" CrMo, 3-piece, 8-spline, 170mm
- Bottom Bracket: Mid BB, sealed bearing
- Hub (front): aluminum shell, 10mm (3/8") male CrMo axle, sealed bearing, 36H
- Hub (rear): Freecoaster hub, 14mm CrMo male hollow axle, sealed bearing, 36H
Driver: 9T, sealed bearing - Rim (front): aluminum, Double wall, 36H
- Rim (rear): aluminum, Double wall, 36H
- Tire (front): Haro "La Mesa" BMX Tire
Width: 20" x 2.4" - Tire (rear): Haro "La Mesa" BMX Tire
Width: 20" x 2.4" - Pegs: -
- Extra
