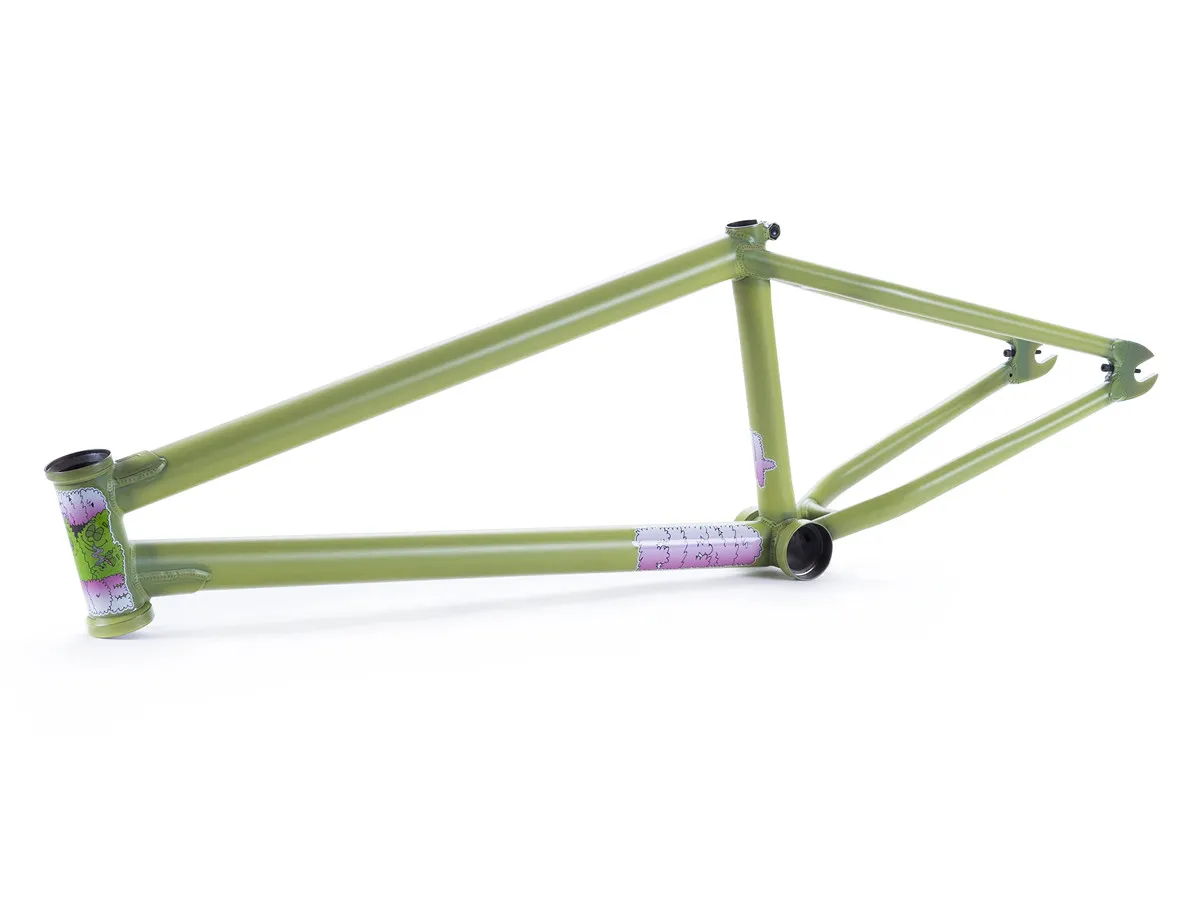

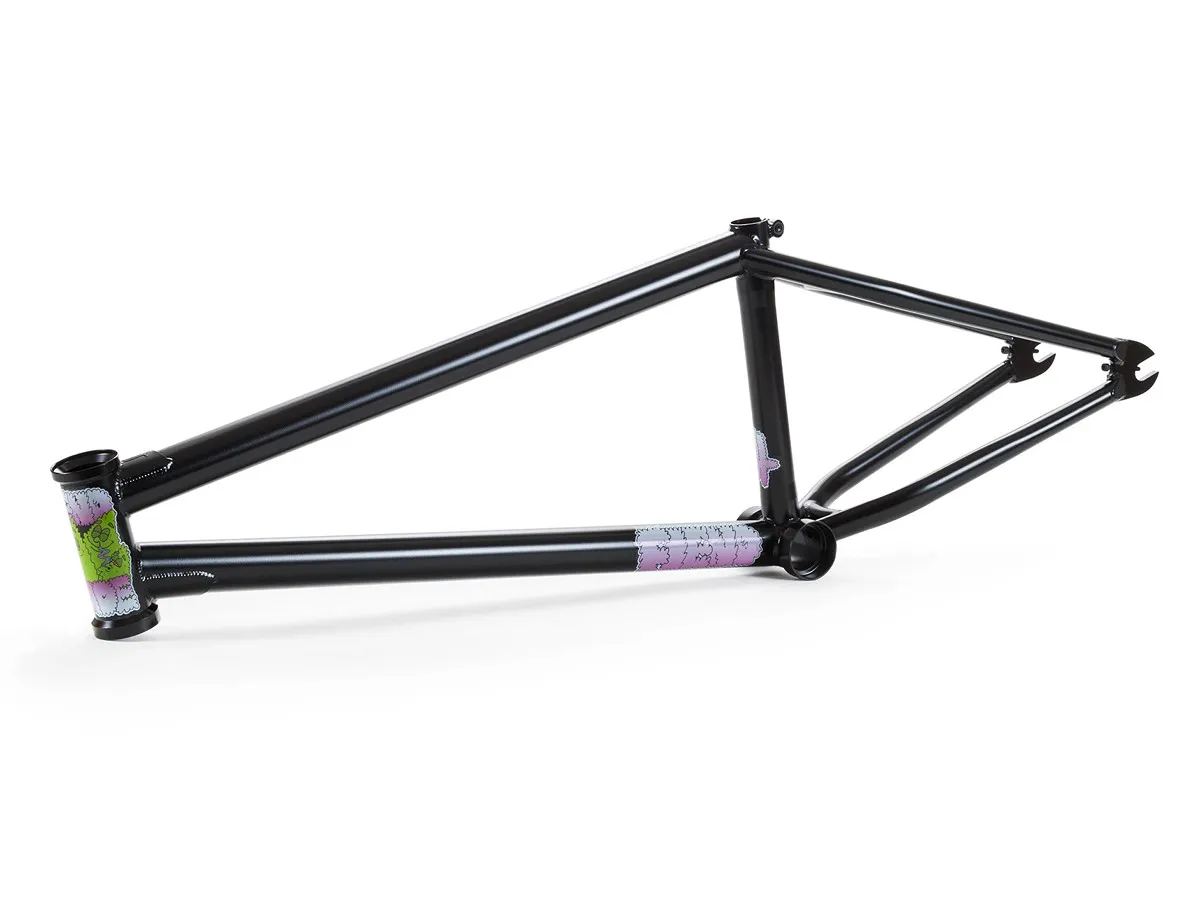

Fiend BMX "Morrow V4" 2021 BMX Frame - With Brakemounts
-
Weight : 2.27kg / 5.00lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:- Manufacturer's weight specifications may be inaccurate or incomplete.
- The weight of two identical parts can also differ.
- We cannot weigh every individual part.
Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 19173
This
Fiend BMX "Morrow V4" 2021 BMX Frame - With Brakemounts
is Ty Morrows signature frame and was in accordance to his wishes and his riding style for top modern and technical Pro level street riding designed and manufactured. Of course this
Fiend BMX "Morrow V4" 2021 BMX Frame - With Brakemounts
is made from best quality, partially heat treated 100% 4130 CrMo and a steep 75.5° degrees head tube paired with a medium length 12.9" rear end and a 11.625" low bottom bracket make this high quality Street frame very maneuverable. T
Note: This frame has holes to put brakemounts but there are not included.
Facts: Fiend BMX "Morrow V4" 2021 BMX Frame - With Brakemounts
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset
- Geometry:
Top Tube Length (TT): 20.5", 20.75", 21.0" or 21.25"
Chainstay Length (CS): 12.9" (32.77cm) - 13.2" (33.53cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.625" (29.53cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 6mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Ty Morrow Signature frame, wide rear end for fat 2.4" tires
- Model Year: 2022
