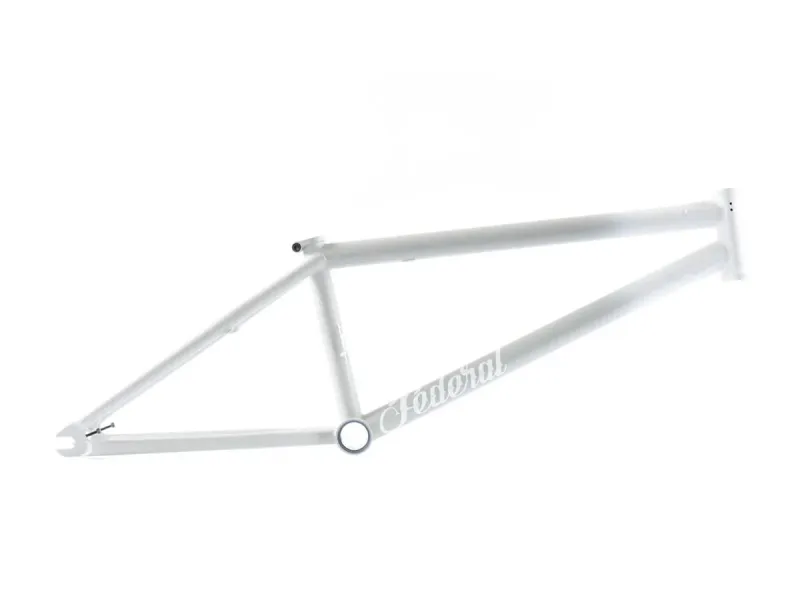

Federal Bikes "Lacey" 2023 BMX Frame
-
Weight : 2.4kg / 5.29lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:- Manufacturer's weight specifications may be inaccurate or incomplete.
- The weight of two identical parts can also differ.
- We cannot weigh every individual part.
Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 25750
The Federal Bikes "Lacey" 2023 BMX Frame is the signature frame of Dan Lacey. The Federal Bikes "Lacey" 2023 BMX Frame is a very high quality Street frame made of 100% 4130 CrMo. This Federal Bikes "Lacey" 2023 BMX Frame is equipped with Investment Cast dropouts and seat clamp. Integrated chain tensioner makes adjusting the rear wheel easy and the rear end of this frame is 13.75" long.
Facts: Federal Bikes "Lacey" 2023 BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, buttet tubes, tappered chainstays, integrated headseat, integrated chaintensioners, including investment cast seatclamp, removable brake hardware, Mid BB
- Geometry:
Top Tube Length (TT): 21.0"
Chainstay Length (CS): 13.75" (34.92cm) - 14.2" (36.07cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.8" (29.97cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 6.5mm thick, 14mm slots, integrated chain tensioners
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Dan Lacey Signature frame, wide rear end for fat 2.4" tires
- Model Year: 2023
