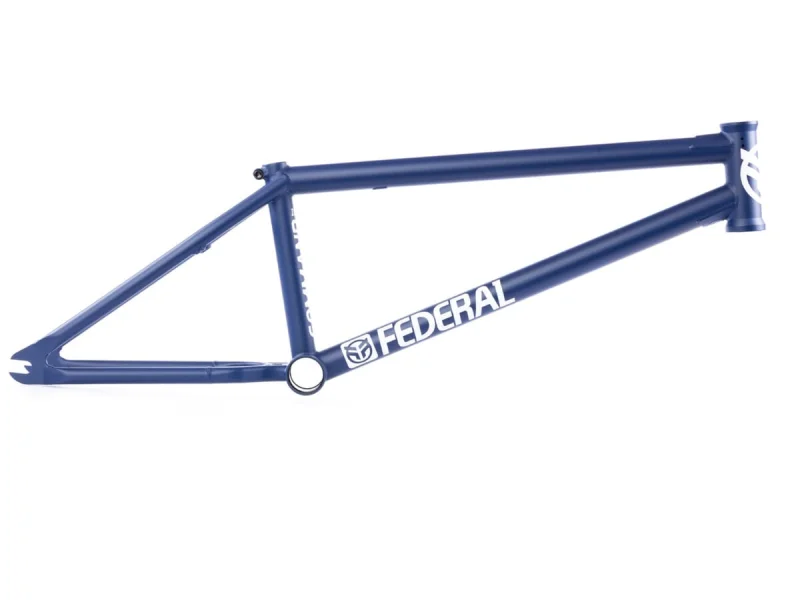

Federal Bikes "Command ICS2" 2021 BMX Frame
-
Weight : 2.51kg / 5.53lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:- Manufacturer's weight specifications may be inaccurate or incomplete.
- The weight of two identical parts can also differ.
- We cannot weigh every individual part.
Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 22258
The
Federal Bikes "Command ICS2" 2021 BMX Frame
has been designed to keep the cost down yet still affordable while still maintaining the strength and quality that Federal is known for. The
Federal Bikes "Command ICS2" 2021 BMX Frame
is made using 4130 Chromoly with heat treated head tube, BB and dropouts.
Caution: The delivery of the frame is without removable brake bosses, gyro tabs and brake cable holder.
The Federal Bikes Brake Mount Kit is available separately in our online shop.
Facts: Federal Bikes "Command ICS2" 2021 BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, buttet tubes, tappered chainstays, integrated headseat, integrated seatclamp, removable brake hardware, Mid BB, investment cast (ICS) chain stay wishbone
- Geometry:
Top Tube Length (TT): 21.0"
Chainstay Length (CS): 12.5" (31.75cm) - 12.9" (32.77cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.7" (29.72cm)
Standover Height (SO): 8.75" (22.22cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 4130 CrMo, 5mm thick, 14mm slots
- Chain Tensioners: without
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: wide rear end for fat 2.5" tires, new investment cast (ICS) chain stay wishbone
- Model Year: 2021
