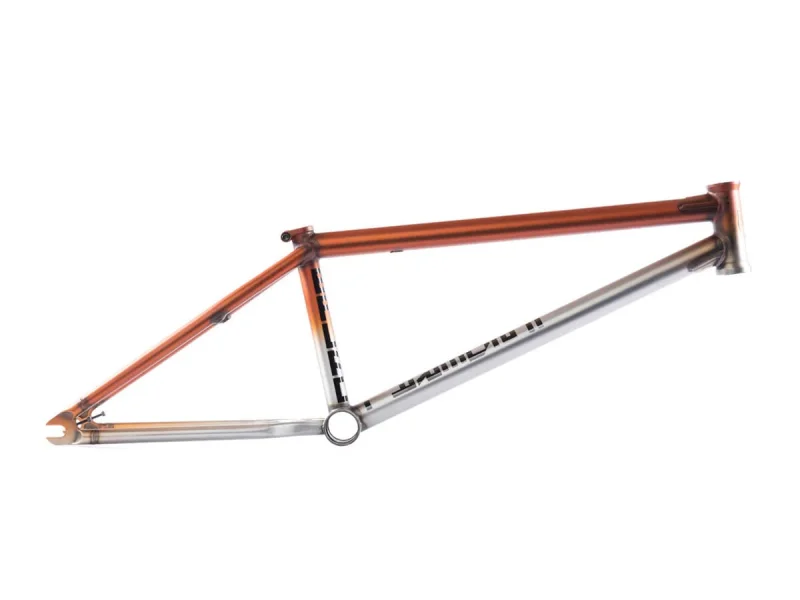

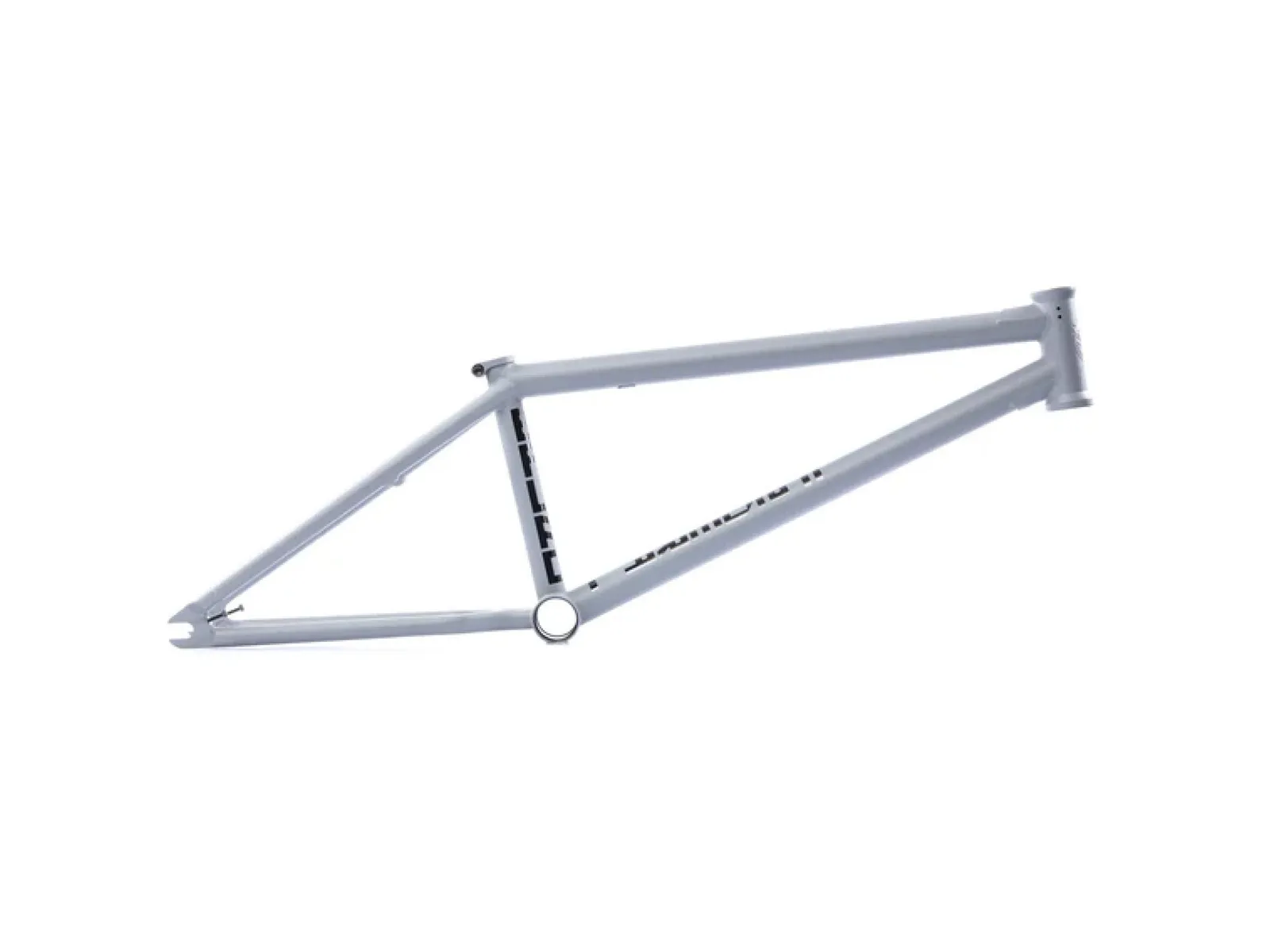

Federal Bikes "Bruno ICS2" 2023 BMX Frame
-
Weight : 2.51kg / 5.53lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:- Manufacturer's weight specifications may be inaccurate or incomplete.
- The weight of two identical parts can also differ.
- We cannot weigh every individual part.
Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 23647
The
Federal Bikes "Bruno ICS2" 2023 BMX Frame
is Bruno Hoffmann's signature frame and was in accordance to his riding style designed and manufactured for top modern and technical Pro level BMX Street riding. The
Federal Bikes "Bruno ICS2" 2023 BMX Frame
comes with new ICS2 wishbone and smaller, more refined IC dropouts, a slightly taller head tube and with graphics designed by Rich Forne.
Caution: The delivery of the frame is without removable brake bosses, gyro tabs and brake cable holder.
The Federal Bikes Brake Mount Kit is available separately in our online shop.
Facts: Federal Bikes "Bruno ICS2" 2023 BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset
- Geometry:
Top Tube Length (TT): 21.0"
Chainstay Length (CS): 13.6" (34.54cm) - 14" (35.56cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.8" (29.97cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: 4130 CrMo, 5mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Bruno Hoffmann Signature frame, wide rear end for fat 2.5" tires, new investment cast (ICS) chain stay wishbone
- Model Year: 2023
