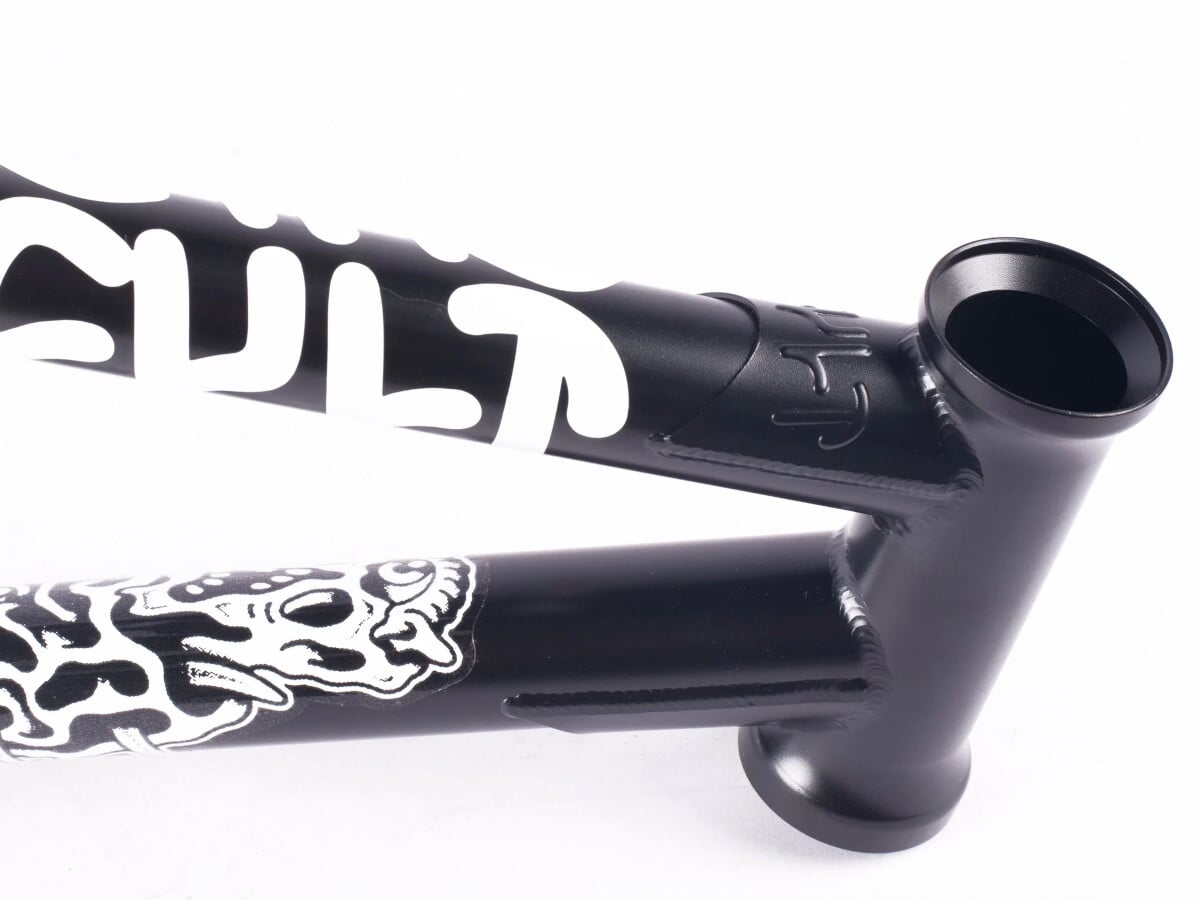

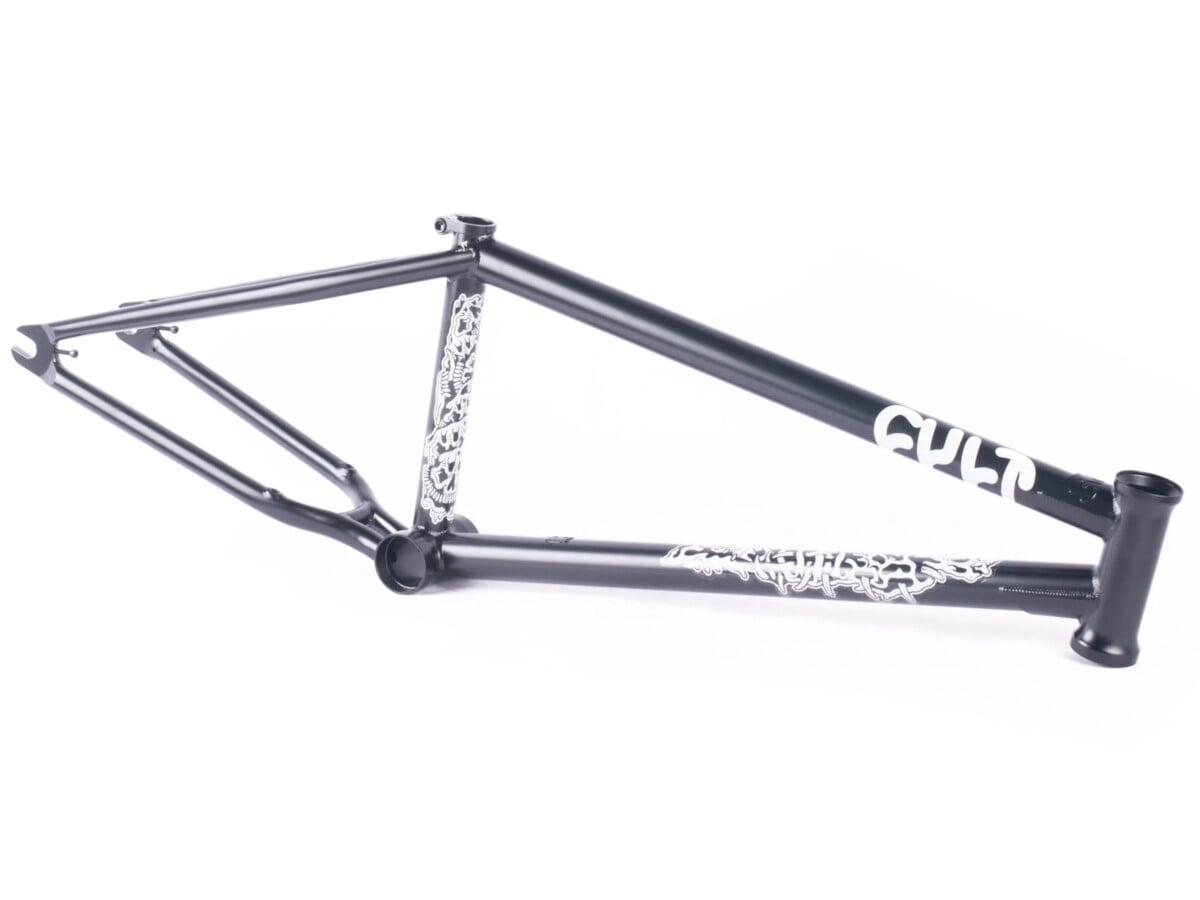

Cult "Corey Walsh" BMX Frame - Black
-
Weight : 2.3kg / 5.07lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:- Manufacturer's weight specifications may be inaccurate or incomplete.
- The weight of two identical parts can also differ.
- We cannot weigh every individual part.
Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 28247
This Cult "Corey Walsh" BMX Frame - Black is Corey Walsh's signature frame and was in accordance to his wishes and his riding style for top modern and technical Bowl, Trail and transition riding designed and manufactured. The Cult "Corey Walsh" BMX Frame - Black has his brakemounts on
Facts: Cult "Corey Walsh" BMX Frame - Black
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top and downtube gusset, headtube for integrated head sets, integrated investment cast seat clamp, investment cast seat stay bridge, tappered seat stays, removable brakehardware, wide rear end for wide 2.4" tires
- Geometry:
Top Tube Length (TT): 20.75", 21.0", 21.25" or 21.5"
Chainstay Length (CS): 13.8" (35.05cm) - 14.1" (35.81cm)
Head Tube Angle (HA): 74.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.5" (29.21cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: investment cast, 5mm thick, 14mm slots, heat treated
- Chain Tensioners: without
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features: Corey Walsh signature, Very good BMX Trail and Bowl frame, Brake mounts on the lower chainstays, in connection with brakes can therefore only be driven with sprockets larger than 28t
