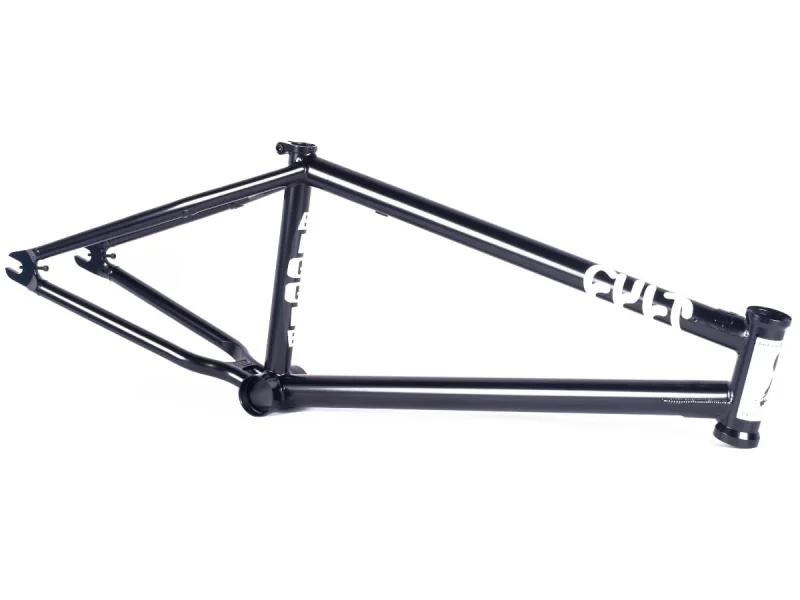

Cult "Biggie" BMX Frame
- Weight : 2.3kg / 5.07lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 26118
The Cult "Biggie" BMX Frame was designed by Devon Smillie and manufactured for top modern and technical Pro level street riding. Of course this Cult "Biggie" BMX Frame is made from best quality, partially heat treated 100% 4130 CrMo and a steep 75.5° degrees head tube paired with a medium short 12.9" inch rear end and a 11.7" inch high bottom bracket make this high quality Street-allround frame very maneuverable. This Frame includes removable brake hardware and of course offers room for fat 2.4" inch tires.
Facts: Cult "Biggie" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, top and downtube gusset, headtube for integrated head sets, integrated investment cast seat clamp, investment cast seat stay bridge, tappered seat stays, removable brakehardware, wide rear end for wide 2.4" tires
- Geometry:
Top Tube Length (TT): 20.5", 20.75", 21.0", 21.25", 21.5" or 21.8"
Chainstay Length (CS): 12.9" (32.77cm) - 13.2" (33.53cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 70°
Bottom Bracket Height: 11.7" (29.72cm)
Standover Height (SO): #98# - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 5mm thick, 14mm slots
- Chain Tensioners: without
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Devon Smillie signature, modern BMX street and allround frame, Wide rear end for 2.4" tires,s-bend chainstays
- Model Year: #66#
