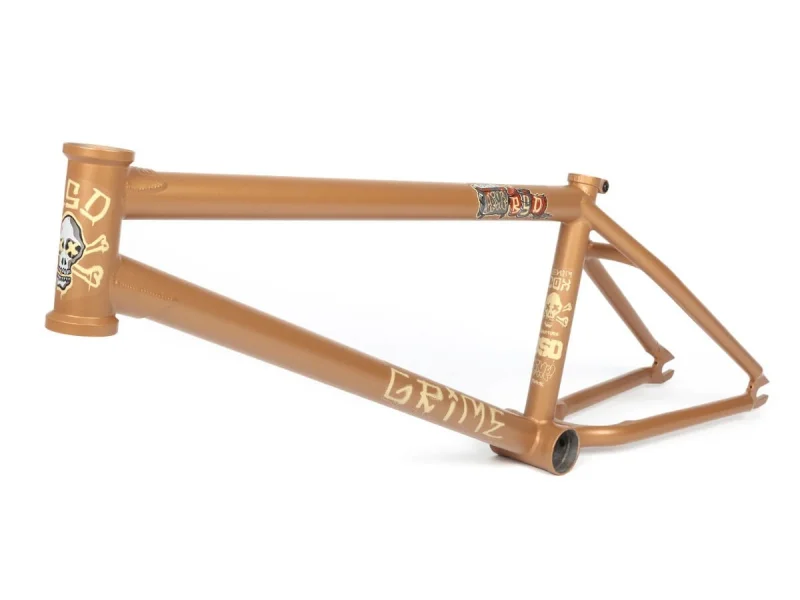

The
BSD "Grime" BMX Frame
is the Signature BMX frame of Denim Cox.
The
BSD "Grime" BMX Frame
comes with new invest cast chainstay, dropouts and seat clamp.
The geometry combines a middle long rear end (12.8" - 13.2"), a steep angle of 75.5° and is made for fast and technical street riding.
The
BSD "Grime" BMX Frame
is made for brakeless riding, has no U-brake sockets and is equipped with 7mm thick dropouts with integrated chain tensioners.
Facts: BSD "Grime" BMX Frame
- Wheel Size: 20"
- Material: 100% Sanko Japanese seamless 4130 CrMo, top tube and down tube gussets, integrated headset, invest cast chainstay, dropouts and seat clamp
- Geometry:
Top Tube Length (TT): 20.6", 20.8", 21.0" or 21.2"
Chainstay Length (CS): 12.8" (32.51cm) - 13.2" (33.53cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.7" (29.72cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 7mm thick, 14mm slots, investment cast
- Chain Tensioners: integrated
- Brake Type: without (brakeless)
- Brakemounts: without
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features: Denim Cox Signature frame, wide rear end for fat 2.4" tires
- Model Year: 2022
