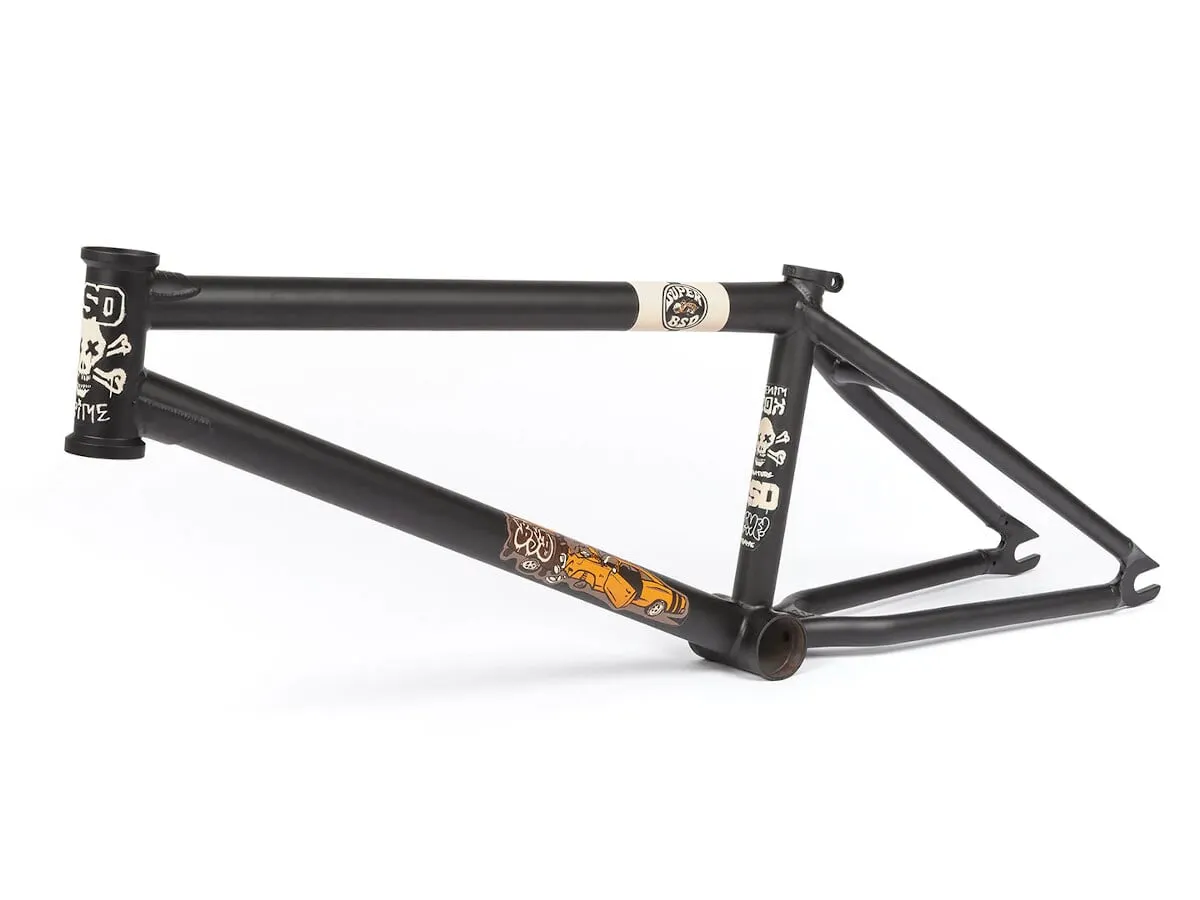

BSD "Grime" 2023 BMX Frame
Facts: BSD "Grime" 2023 BMX Frame
- Wheel Size: 20"
- Material: 100% Sanko Japanese seamless 4130 CrMo, top tube and down tube gussets, integrated headset, invest cast chainstay, dropouts and seat clamp
- Geometry:
Top Tube Length (TT): 20.6", 20.8", 21.0" or 21.2"
Chainstay Length (CS): 12.8" (32.51cm) - 13.2" (33.53cm)
Head Tube Angle (HA): 75.5°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.7" (29.72cm)

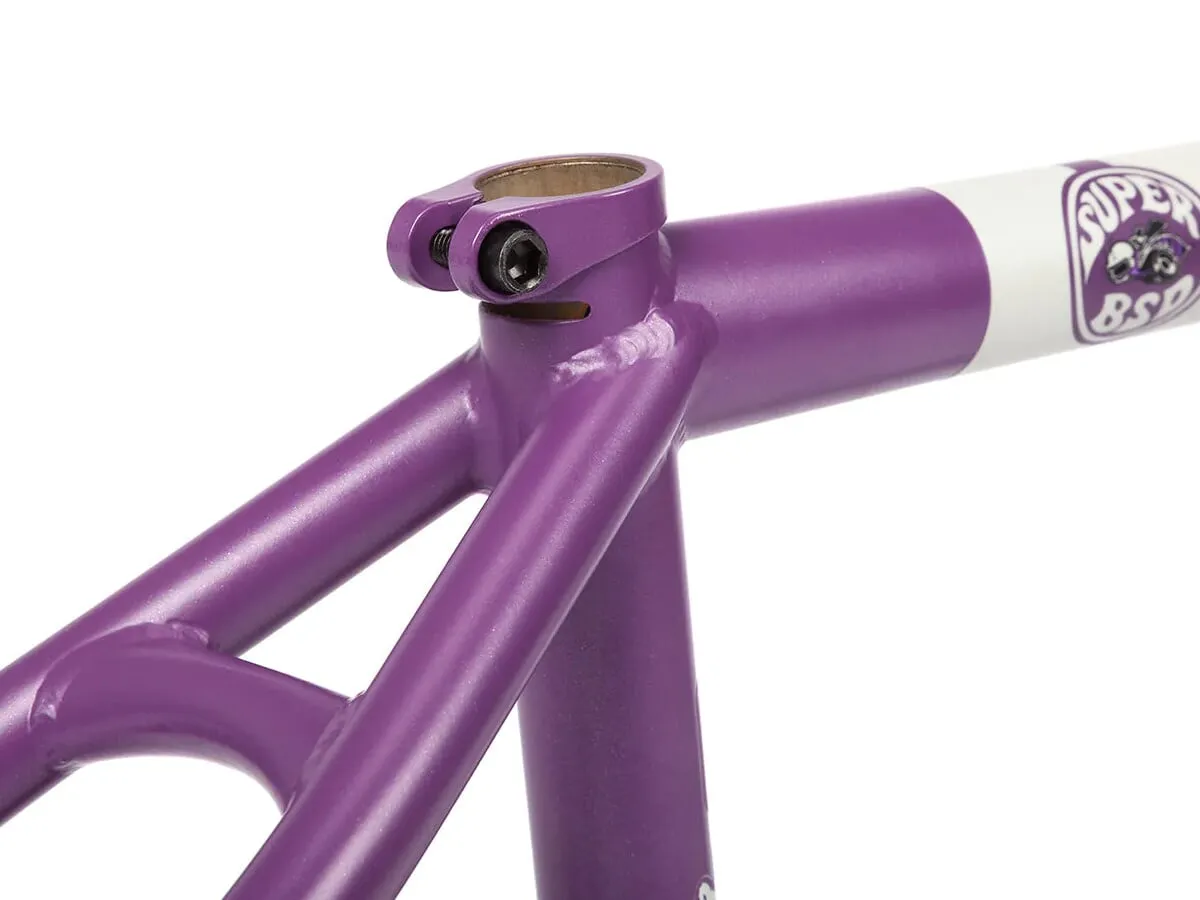

Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm

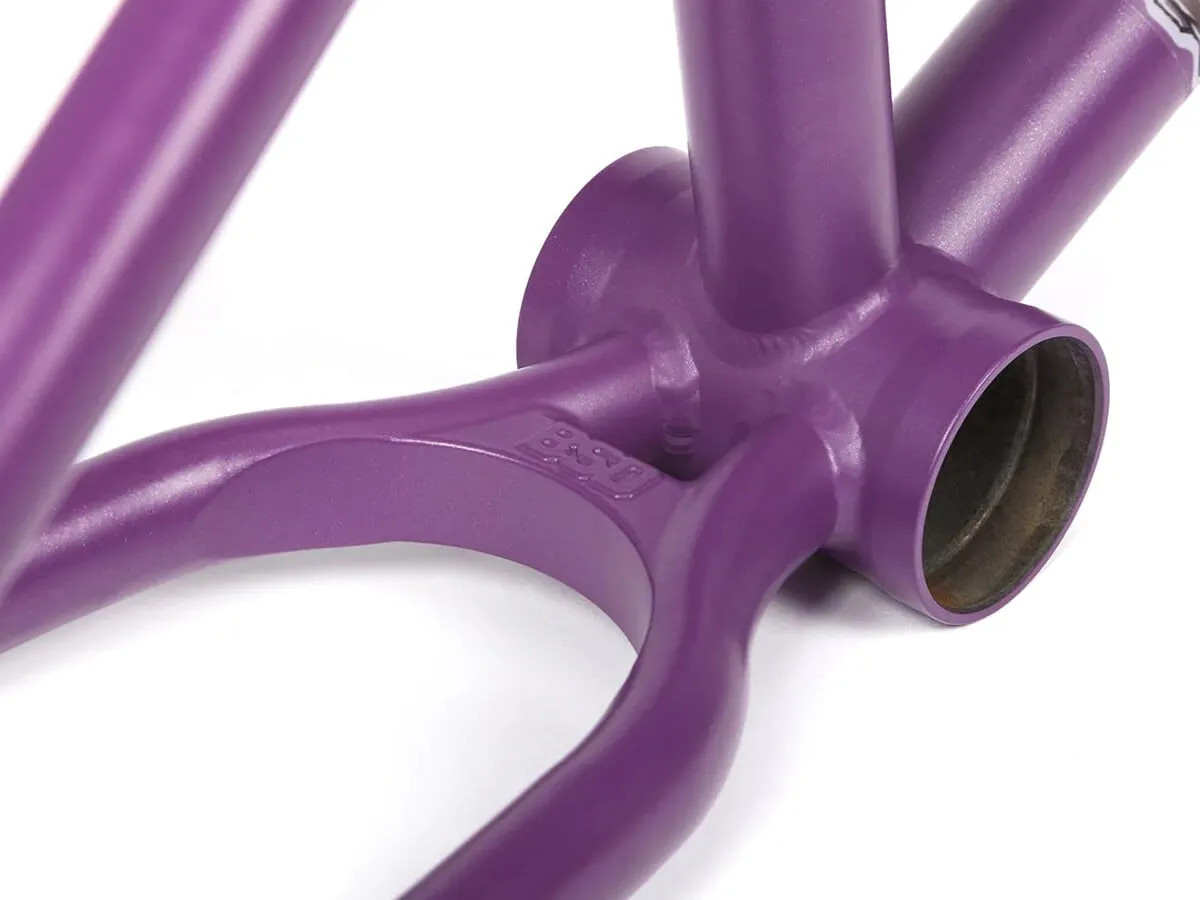

- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 7mm thick, 14mm slots, investment cast
- Chain Tensioners: integrated
- Brake Type: without (brakeless)
- Brakemounts: without
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features: Denim Cox Signature frame, wide rear end for fat 2.4" tires
- Model Year: 2023
