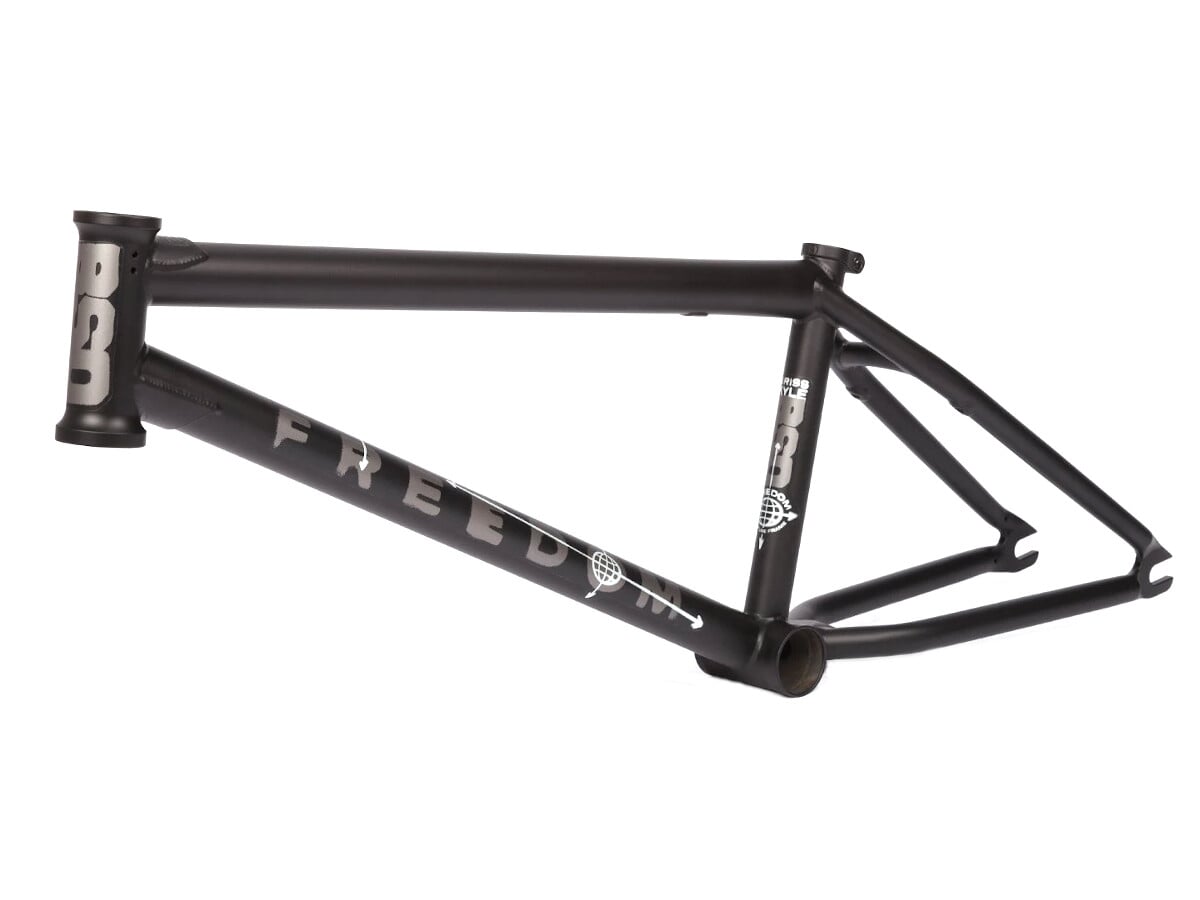

BSD "Freedom" BMX Frame
-
Weight : 2.26kg / 4.98lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:- Manufacturer's weight specifications may be inaccurate or incomplete.
- The weight of two identical parts can also differ.
- We cannot weigh every individual part.
Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 20306
The BSD "Freedom" BMX Frame is Kriss Kyle's signature frame and was in accordance to his wishes and his riding style designed and manufactured for modern and technical riding in all terrains. The BSD "Freedom" BMX Frame is made from best quality, 100% Sanko Japanese seamless 4130 CrMo and a steep 75° degrees head tube paired with a new invest cast wishbone, seatstay bridge and 7mm thick dropouts with built in chain tensiners.
Facts: BSD "Freedom" BMX Frame
- Wheel Size: 20"
- Material: 100% Sanko Japanese seamless 4130 CrMo, top tube and down tube gussets, integrated headset, invest cast wishbone & seatstay bridge
- Geometry:
Top Tube Length (TT): 20.2", 20.5", 20.8", 21.1" or 21.5"
Chainstay Length (CS): 13.2" (33.53cm) - 13.6" (34.54cm)
Head Tube Angle (HA): 75°
Seat Tube Angle (SA): 69.5°
Bottom Bracket Height: 11.5" (29.21cm)
Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 7mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Kriss Kyle Signature frame, wide rear end for fat 2.4" tires
